Dragino CS01 | 4-Channel LoRaWAN Current Sensor Converter
A professional 4-channel LoRaWAN converter designed to monitor machine status and power trends by integrating with external current sensor probes.
- Multi-Channel: Supports up to 4 detachable current sensors.
- Smart Power: Available in high-capacity or solar versions.
- Easy Config: BLE for local setup and wireless OTA updates.
Dragino CS01 | 4-Channel LoRaWAN Current Sensor Converter - EU868 / Non-Rechargeable Battery (8500mAh) is backordered and will ship as soon as it is back in stock.
VAT Free Transaction Option
VAT Free Transaction Option
Our store displays prices excluding VAT by default. For EU-based businesses with a valid VAT number, intra-community VAT exemptions apply. You can validate your VAT number during the checkout process to ensure correct billing.
Secure Payment & Warranty
Secure Payment & Warranty
- Encrypted Checkout: Shop with confidence via Shopify Payments or PayPal Express for fully secure, PCI-compliant transactions.
- B2B Flexible Billing: For large-scale infrastructure orders, we offer Direct Bank Transfer (SEPA/SWIFT) options. Please contact our team for a pro-forma invoice.
- Quality Guaranteed: All professional IoT hardware is backed by a 2-year manufacturer warranty and technical support from our engineering experts at shopioT.
Delivery and Shipping
Delivery and Shipping
Reliable, tracked, and fast global shipping via FedEx Express. Your professional IoT hardware is dispatched from our EU-based warehouse within 2 business days.
Dragino CS01 | 4-Channel LoRaWAN Current Sensor Converter
Description
Description

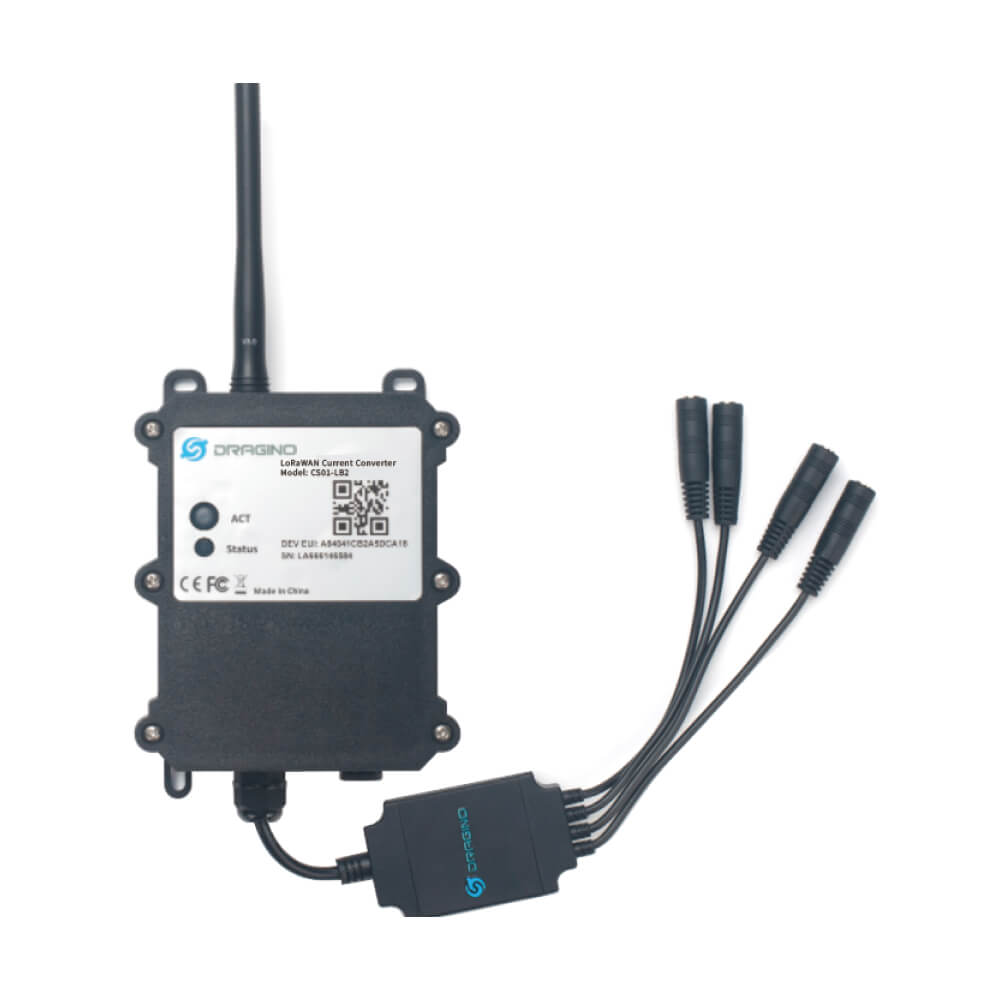

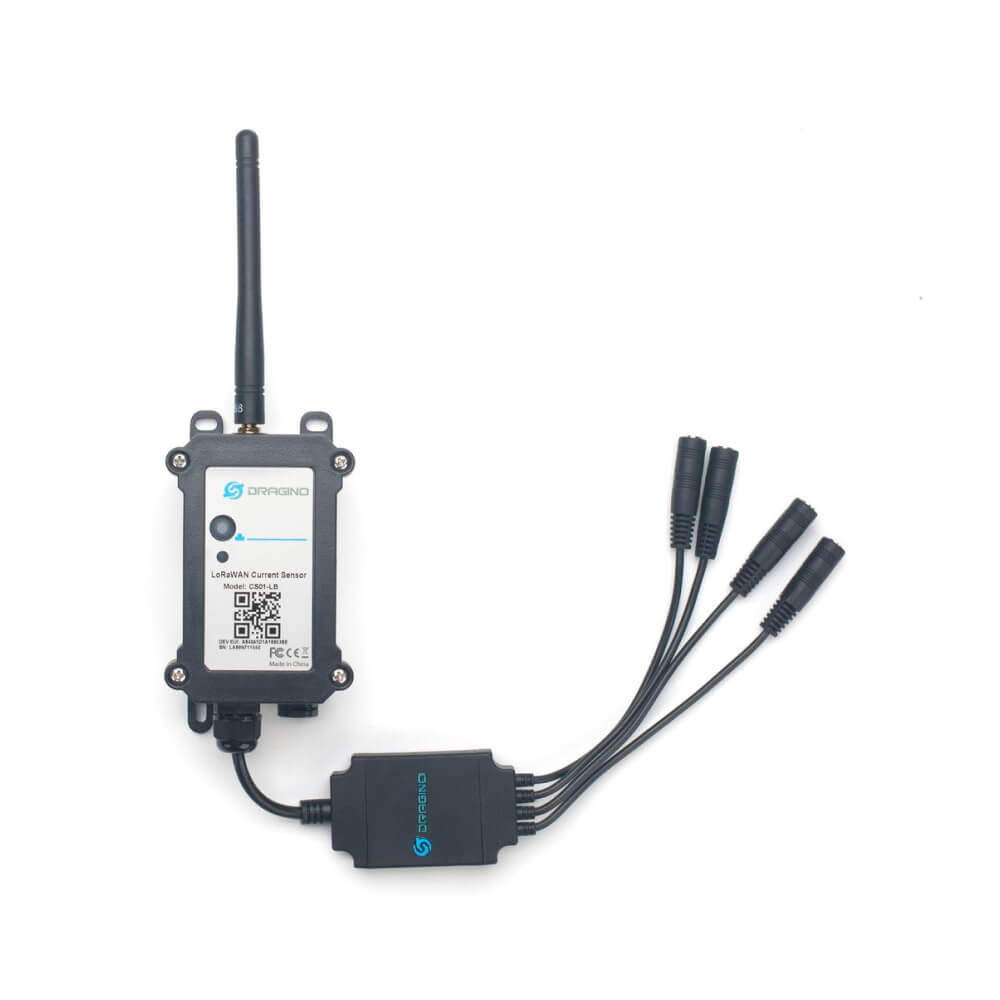

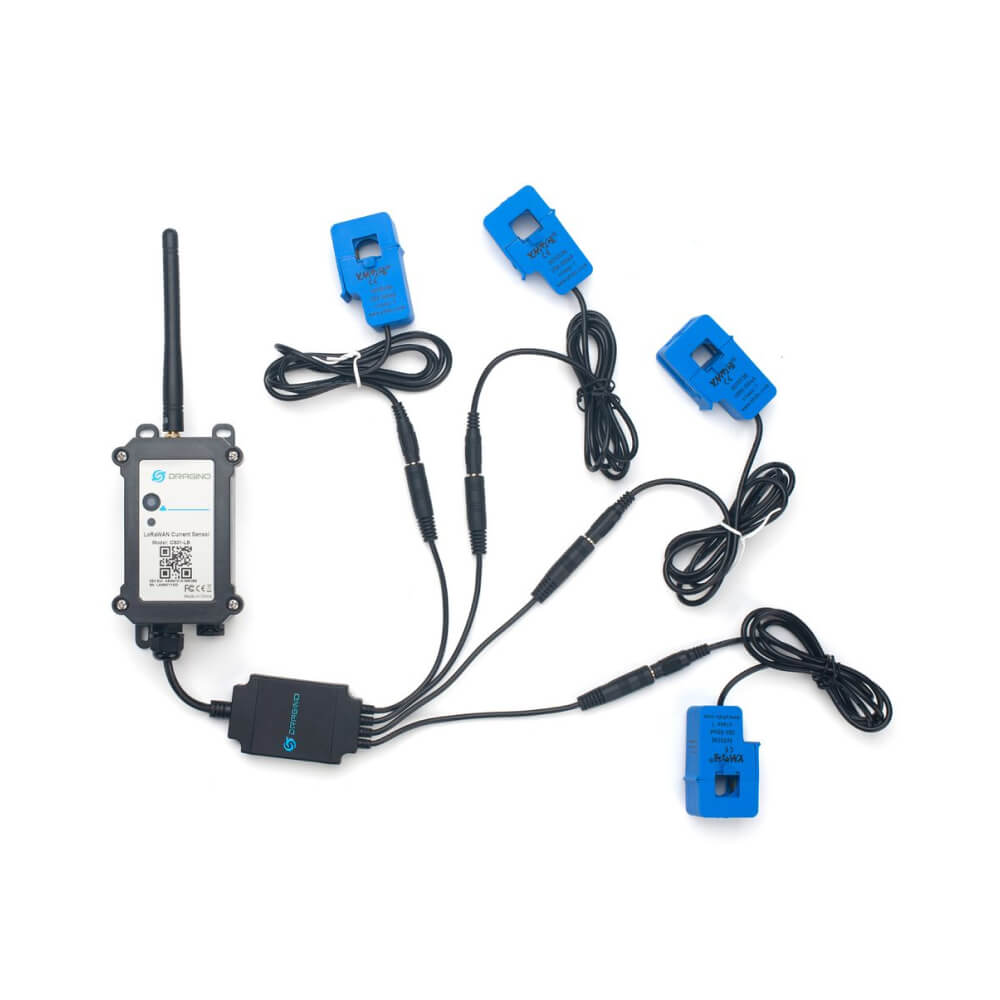

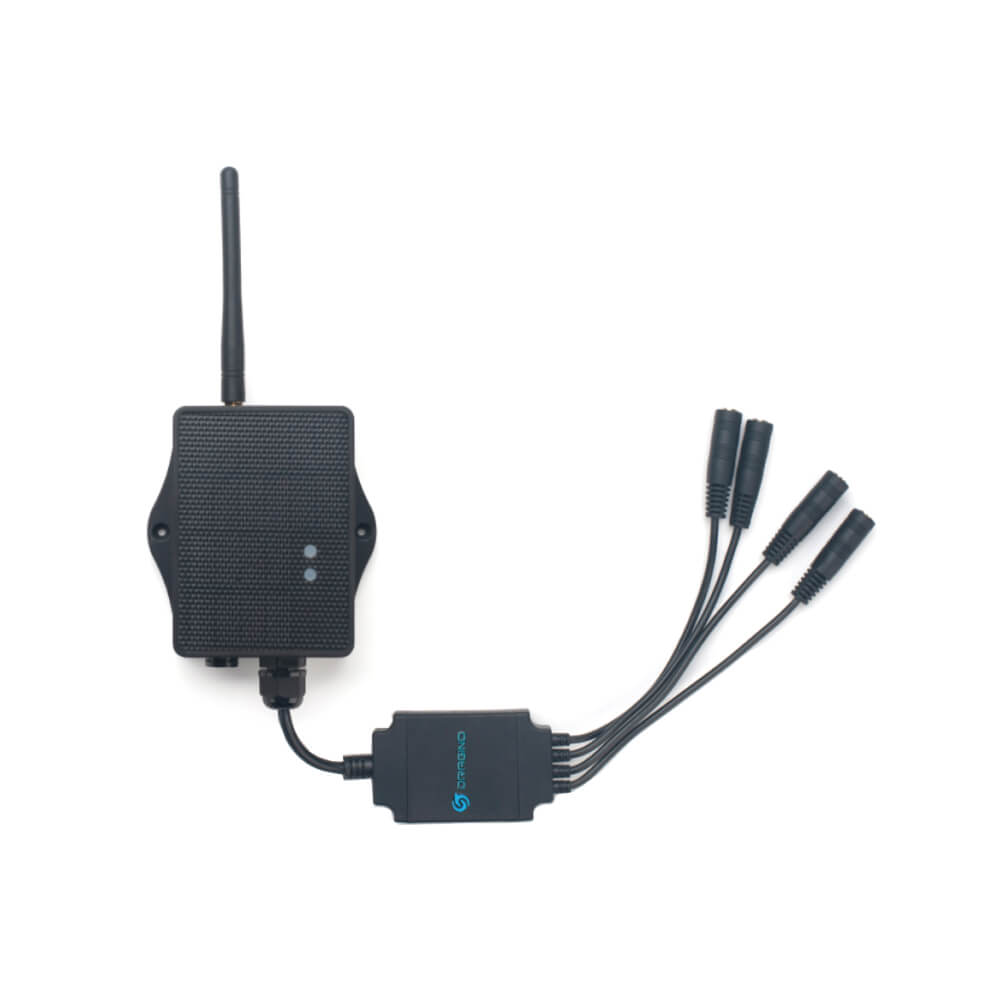

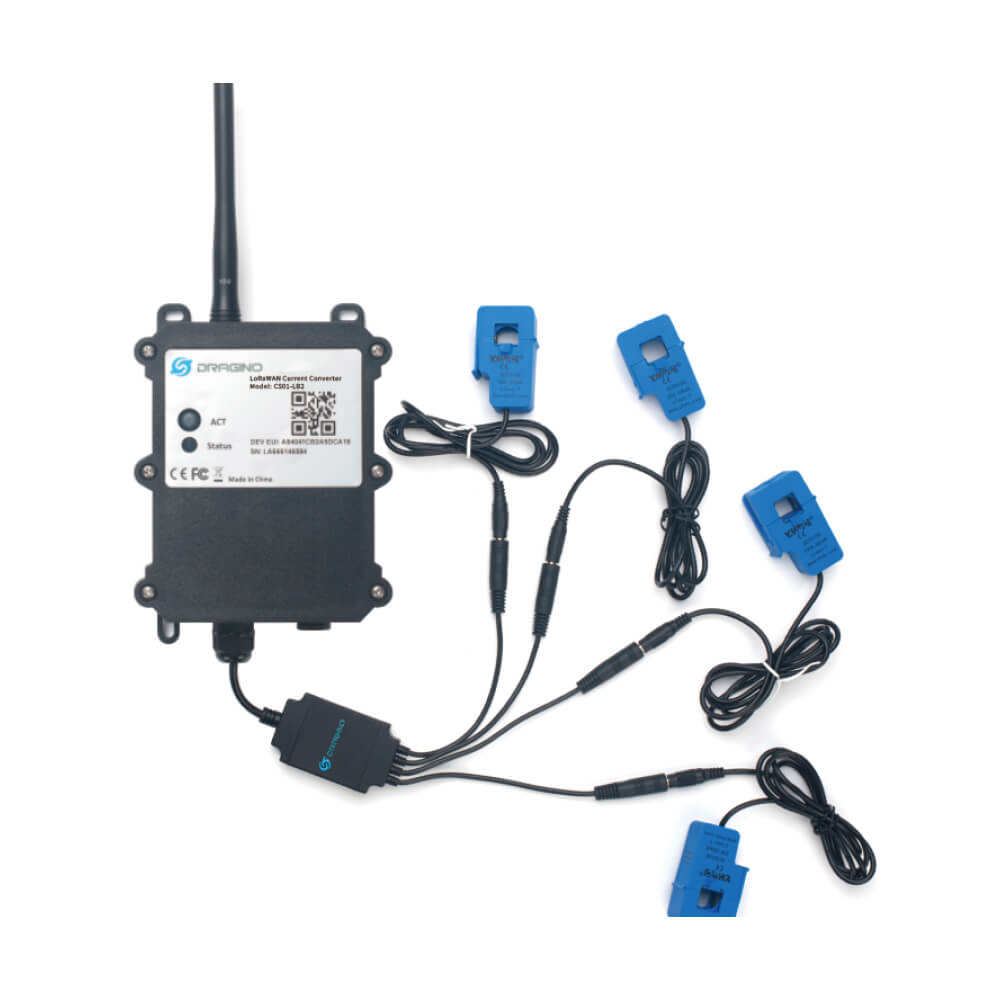

The Dragino CS01 is an industrial 4-channel current sensor converter engineered to bridge electrical monitoring data to LoRaWAN® networks. It is an ideal solution for industrial facility managers and system integrators looking to analyze power consumption trends and monitor machine uptime. The CS01 provides the flexibility to connect up to four independent current probes, allowing for granular data collection across multiple circuits or phases from a single wireless node.
Performance & Flexibility
Available Power Options
We offer the CS01 in three distinct power configurations to meet specific deployment longevity and environmental needs:
Key Applications
The CS01 series is essential for Machine Monitoring, allowing operators to detect abnormalities in motor or pump performance. It is equally effective for Building Energy Management and Solar Inverter Monitoring, helping to visualize consumption and generation trends. For assistance with current probe selection or large-scale industrial IoT network planning, contact the ShopIoT engineering team.
Specifications
Specifications
-
Primary Communication ProtocolLoRaWAN
-
Frequency/RegionEU868
-
Antenna TypeExternal
-
Configuration MethodBluetooth, USB, Downlink
-
Activation MethodOTAA, ABP
-
Environment RatingOutdoor, Industrial
-
IP RatingIP66
-
Operating Temperature-40°C to 85°C
-
Enclosure MaterialPC (Polycarbonate)
-
Battery TypeLi-SOCl2, Li-ion
-
Battery Capacity3000mAh, 8500mAh, 19000mAh
-
Power ConsumptionSleep: 14uA, LoRa Transmit: 125mA
-
Measurement Technology
-
Measurement Range
-
Measurement Accuracy
-
Measurement Resolution
-
Interfaces (I/O)Current Sensor Input
-
Monitoring ParametersCurrent (A), Total Energy (kWh), Power Consumption
