Dragino D20 | Cellular Temperature Sensor (NB-IoT)
A professional NB-IoT temperature sensor with a waterproof probe designed for high-precision thermal monitoring in remote assets.
- • Wide Range: Measures from -55°C to +125°C with ±0.5°C accuracy.
- • Data Resilience: Internal datalogger stores readings during network loss.
- • Flexible Power: Options for 8500mAh, 19000mAh, or Solar-powered builds.
Dragino D20 | Cellular Temperature Sensor (NB-IoT) - Rechargeable Battery (3000mAh) with Integrated Solar Charging is backordered and will ship as soon as it is back in stock.
VAT Free Transaction Option
VAT Free Transaction Option
Our store displays prices excluding VAT by default. For EU-based businesses with a valid VAT number, intra-community VAT exemptions apply. You can validate your VAT number during the checkout process to ensure correct billing.
Secure Payment & Warranty
Secure Payment & Warranty
- Encrypted Checkout: Shop with confidence via Shopify Payments or PayPal Express for fully secure, PCI-compliant transactions.
- B2B Flexible Billing: For large-scale infrastructure orders, we offer Direct Bank Transfer (SEPA/SWIFT) options. Please contact our team for a pro-forma invoice.
- Quality Guaranteed: All professional IoT hardware is backed by a 2-year manufacturer warranty and technical support from our engineering experts at shopioT.
Delivery and Shipping
Delivery and Shipping
Reliable, tracked, and fast global shipping via FedEx Express. Your professional IoT hardware is dispatched from our EU-based warehouse within 2 business days.
Dragino D20 | Cellular Temperature Sensor (NB-IoT)
Description
Description

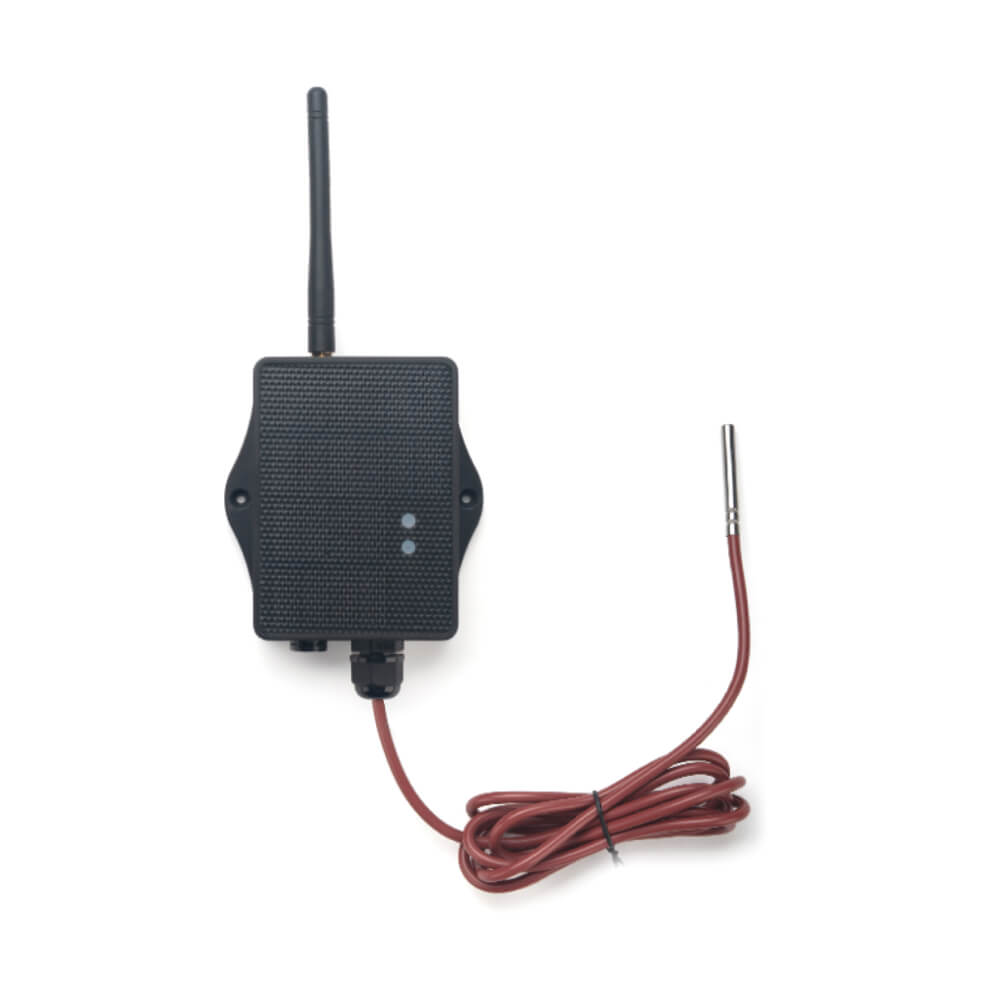

The Dragino D20 is a carrier-grade Cellular Temperature Sensor engineered for reliable monitoring across diverse industrial environments. By leveraging NB-IoT connectivity, the D20 transmits thermal data directly to your platform without the need for local gateways. Featuring a high-quality DS18B20 stainless steel probe, this sensor is ideal for quantifying liquid temperatures in pipelines, monitoring chemical storage, or tracking HVAC performance. Its robust IP66 enclosure and intelligent power management make it a premier choice for long-term deployments in Europe and the Middle East.
Reliable Intelligence & Easy Setup
Power Configuration Options
Available in three distinct power variants to suit your specific field longevity needs:
- Model NB: 8500mAh Non-Rechargeable battery for standard wireless use.
- Model NB2: 19000mAh Non-Rechargeable battery for maximum field autonomy.
- Model NS: 3000mAh Rechargeable Solar Powered battery for perpetual monitoring.
Professional Usage Scenarios
Product Certifications
Specifications
Specifications
-
Primary Communication ProtocolNB-IoT
-
Frequency/RegionGlobal
-
Antenna TypeExternal (SMA)
-
Configuration MethodBluetooth, USB
-
Activation MethodManual
-
Environment RatingOutdoor, Industrial
-
IP RatingIP66
-
Operating Temperature-40°C to 85°C
-
Enclosure MaterialPC (Polycarbonate)
-
Battery TypeLi-SOCl2, Li-ion
-
Battery Capacity3000mAh, 8500mAh, 19000mAh
-
Power ConsumptionUltra-Low Power with Deep Sleep Mode
-
Measurement Technology
-
Measurement Range
-
Measurement Accuracy
-
Measurement Resolution
-
Monitoring ParametersTemperature, Battery Voltage
