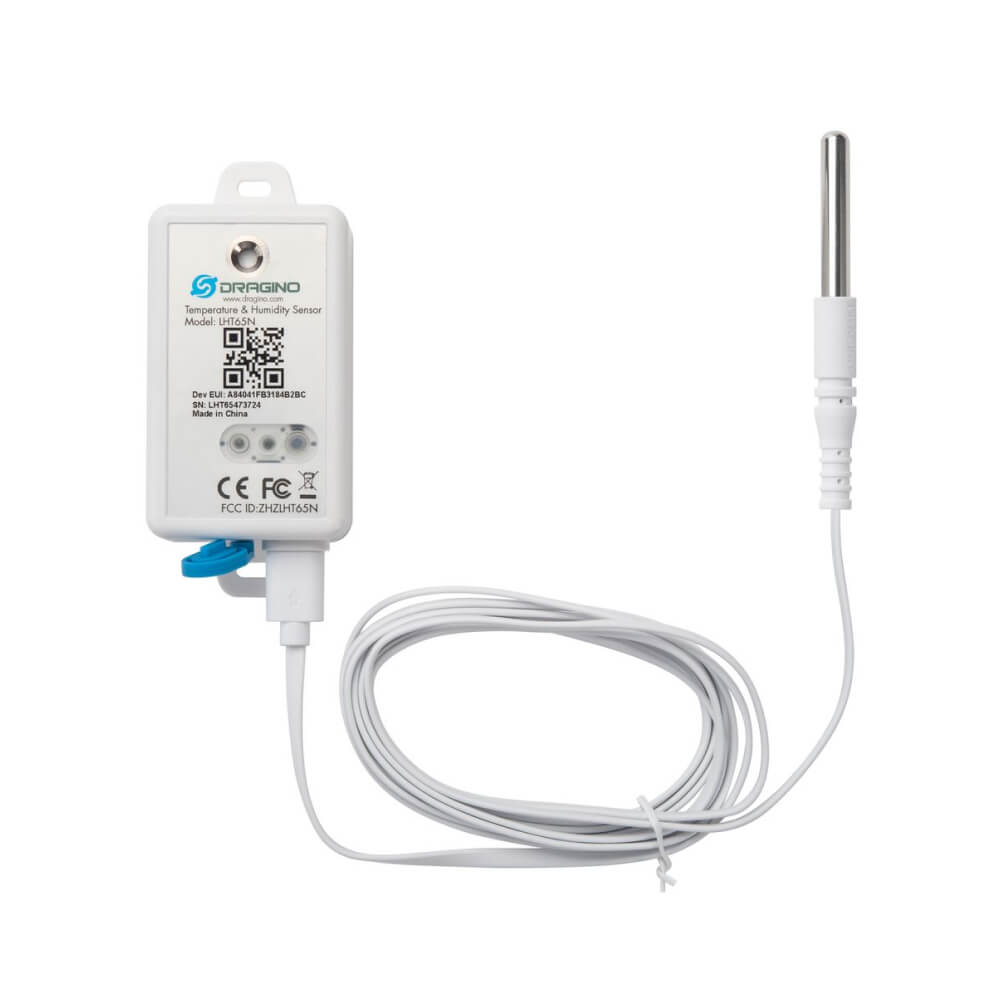

The Dragino LHT65N is an ultra‑long‑range LoRaWAN® Class A sensor with built-in temperature and humidity sensing, and support for an external DS18B20 probe. It features a 2400 mAh non‑rechargeable battery providing up to 10 years of operation. Designed for IoT applications—such as smart agriculture, building automation, cold‑chain monitoring, and environmental sensing—it offers datalogging, tri‑color LED indicators, AT commands, and remote configuration over LoRaWAN.
Product Downloads
Specification | Details |
---|---|
Model | LHT65N (internal) / LHT65S (external antenna) |
Protocol | LoRaWAN® 1.0.3 Class A |
Built‑in Sensor | SHT20 temp (–40 °C to 80 °C, ±0.3 °C), RH 0‑96 %, ±3 % |
External Probe | DS18B20 –55 °C to 125 °C, ±0.5 °C (–10 °C to 85 °C), ±2 °C full |
Battery | 2400 mAh Li‑SOCl₂, up to 10 years* |
Datalog | 3200 records with time‑stamp |
Config | AT commands, LoRaWAN downlink |
Indicators | Tri‑color LED |
Frequency Bands | CN470/EU433/KR920/US915/EU868/AS923/AU915/IN865 |
Battery Life | Up to 10 years (depending on use) |
Ingress Protection | IP65 |
Operating Temp | –40 °C to +80 °C |
Dimensions | 95 × 40 × 28 mm |
Weight | ≈ 105 g |
