Dragino  |  SKU: LHT65N-PIR-868

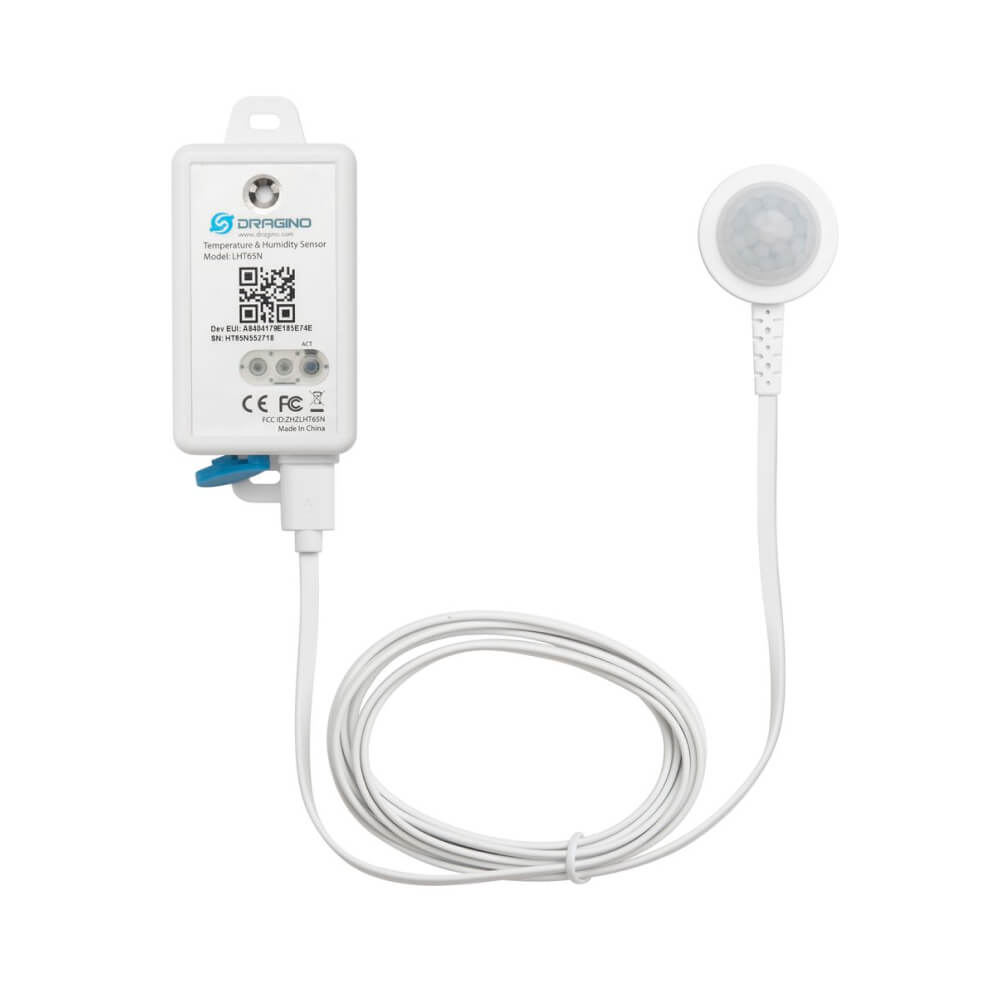

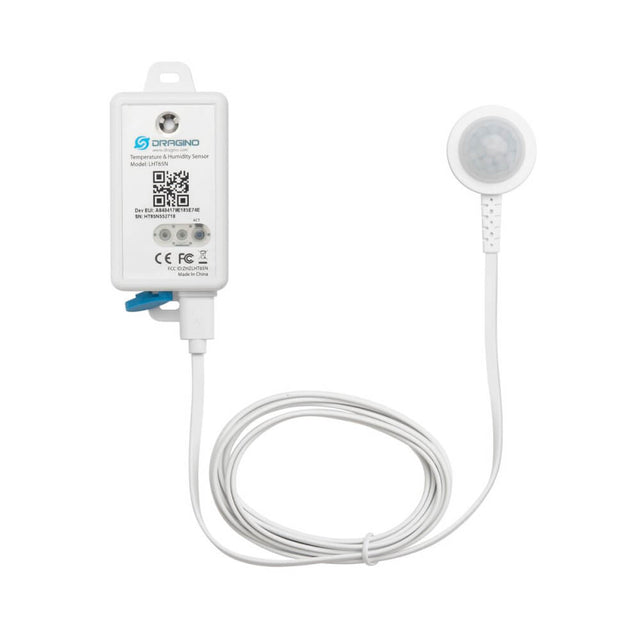

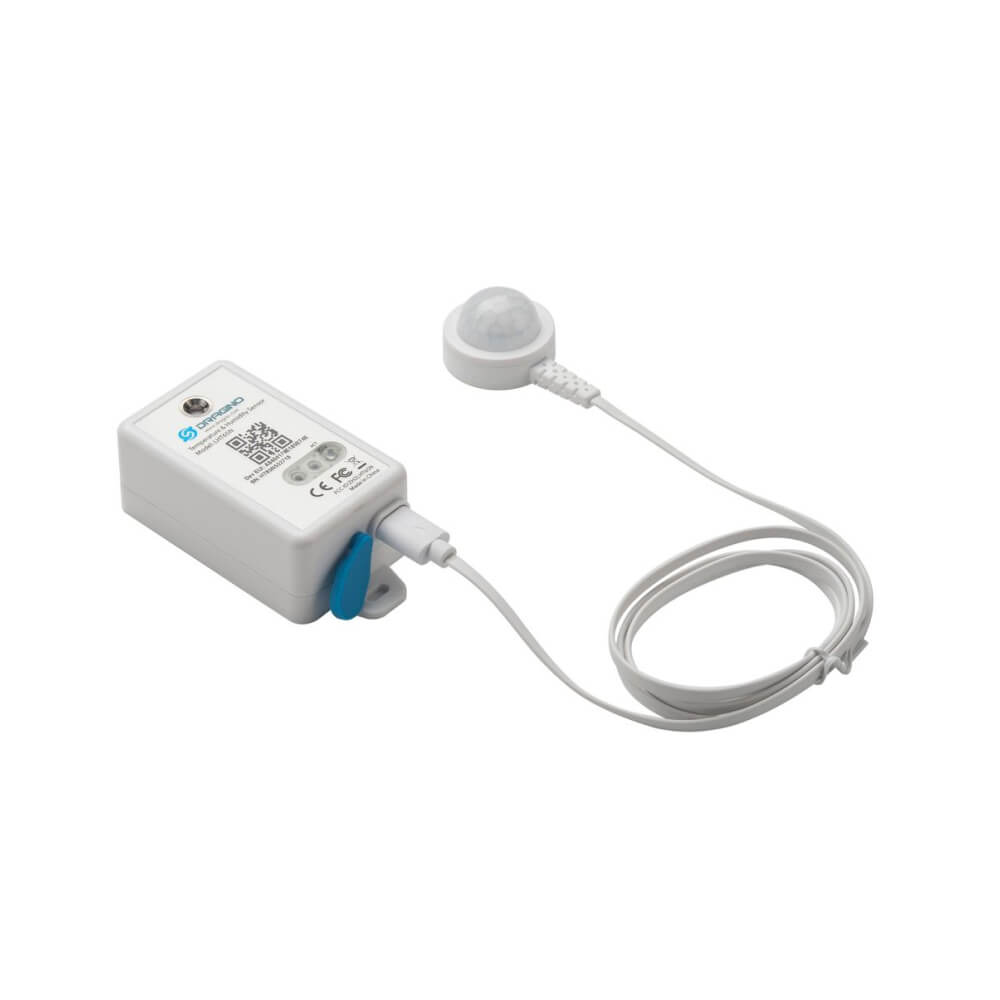

Dragino LHT65N-PIR | LoRaWAN Temperature, Humidity & PIR Motion Sensor

Price incl. 19% VAT
€42,50
Price excl. VAT
€35,71
Shipping calculated at checkout. Shipping policy

The Dragino LHT65N-PIR is a LoRaWAN temperature and humidity sensor with an external PIR probe for presence detection.

  • Climate sensing: built-in SHT20 temperature and humidity sensor
  • Motion detection: external PIR probe with 3 m detection range
  • Battery: 2400 mAh, rated for 5+ years by uplink interval

VAT & Business Purchases

Prices include VAT at the rate of your EU delivery country, so the price shown is the price you pay. EU businesses with a valid VAT number can buy VAT-free: enter your company name and VAT number at checkout and VAT is removed under the intra-community reverse-charge rules. Orders delivered within Cyprus always include Cyprus VAT.

Secure Payment & Warranty
  • Encrypted Checkout: Shop with confidence via Shopify Payments or PayPal Express for fully secure, PCI-compliant transactions.
  • B2B Flexible Billing: For large-scale infrastructure orders, we offer Direct Bank Transfer (SEPA/SWIFT) options. Please contact our team for a pro-forma invoice.
  • Warranty & Support: Consumer purchases are covered by the 2-year legal guarantee of conformity, and manufacturer warranty terms apply per brand. Our engineering team at shopioT provides technical support.

Delivery and Shipping

Tracked delivery within Cyprus by ACS Courier, and to all EU member states, the United Kingdom and Switzerland by FedEx International Priority. Orders ship from our warehouse in Nicosia, Cyprus, typically within 1–3 business days. Shipping cost is calculated at checkout by destination and parcel weight. See our Shipping Policy for rates and delivery times.

EU business? Enter your company name and a valid EU VAT number at checkout to remove VAT (reverse charge).

Description

The Dragino LHT65N-PIR is a versatile LoRaWAN® end-node designed for comprehensive indoor monitoring. It features a high-stability internal sensor for ambient temperature and humidity, supplemented by an external PIR (Passive Infrared) probe. This combination allows for a single device to manage both climate comfort and occupancy intelligence. Utilizing advanced spread spectrum technology, the LHT65N-PIR achieves extreme wireless range and high interference immunity while maintaining ultra-low power consumption.

Smart Environmental Intelligence

Internal Climate Monitoring Accurate to ±0.3°C for temperature and ±3% for RH, ensuring precise HVAC and storage data.

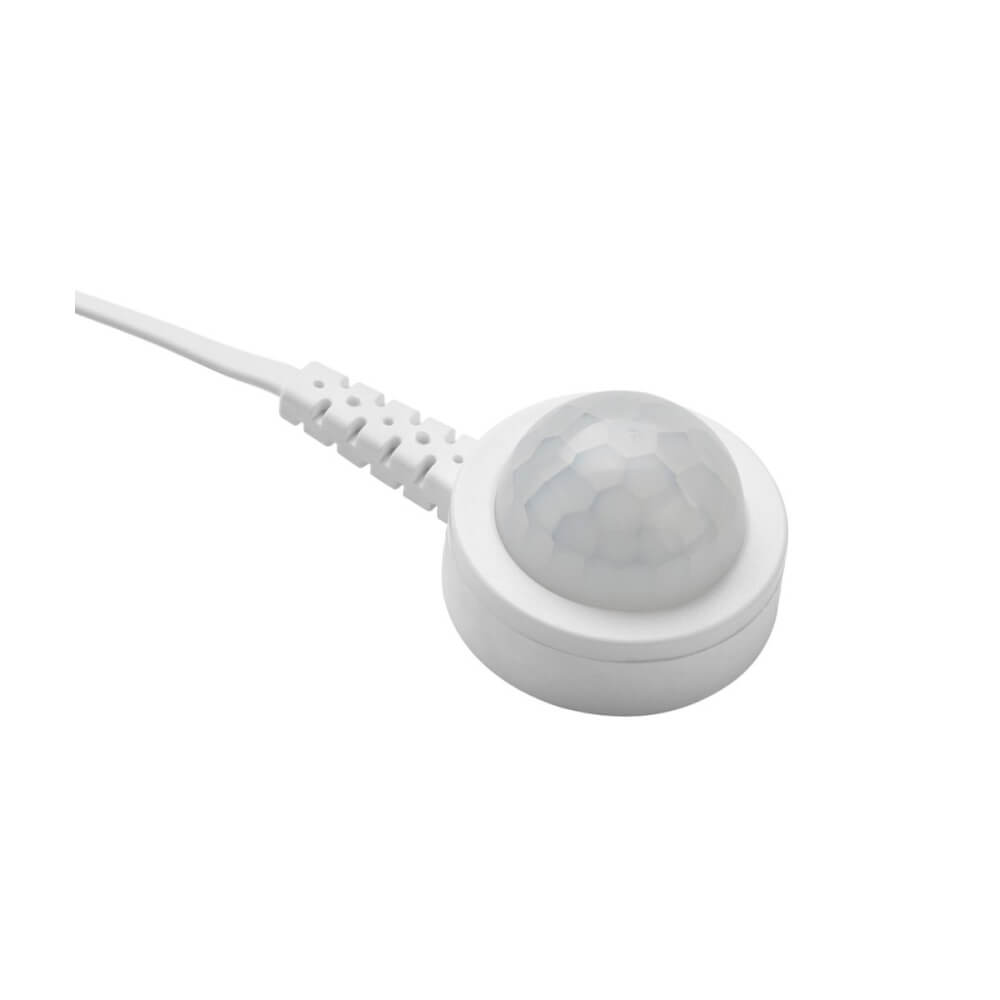

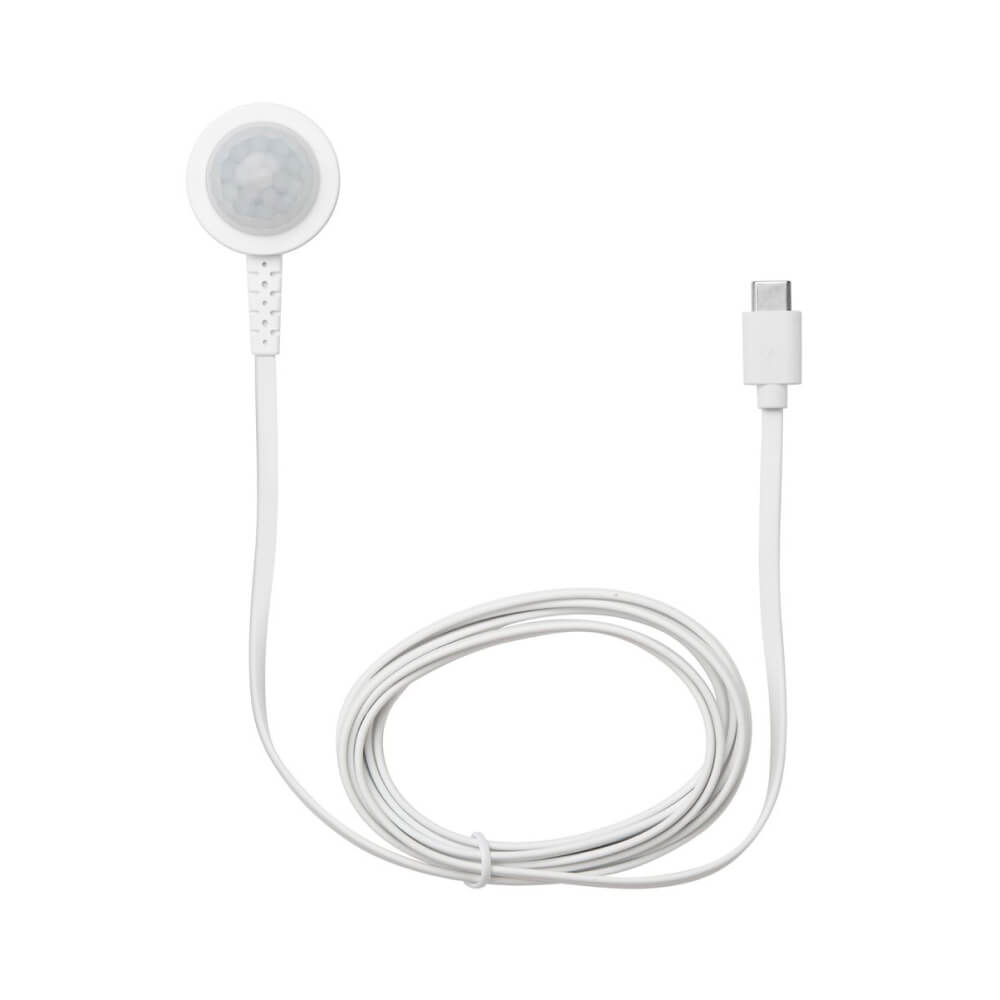

External PIR Probe The 1-meter cable allows the PIR sensor to be positioned optimally for occupancy tracking independent of the base unit.
5+ Year Battery Life Powered by a built-in 2400mAh non-chargeable battery, minimizing maintenance overhead in smart buildings.
Remote Configuration Supports LoRaWAN Downlink commands and wireless OTA updates for effortless lifecycle management.

Building Automation Scenarios

• Smart Offices: Trigger lighting and ventilation based on both environmental thresholds and real-time room occupancy.
• Facility Management: Monitor janitorial activity and traffic patterns in commercial restrooms or utility rooms.
• Storage Security: Detect unauthorized entry in sensitive inventory areas while logging ambient storage conditions.

Technical Integration

The LHT65N-PIR is fully compatible with LoRaWAN® v1.0.3 Class A and works seamlessly with all standard gateways. It supports global frequency bands (EU868, US915, AU915, etc.) and features an easy-to-read tri-color LED for status indication. For advanced system architecture or guidance on occupancy-driven automation, contact the ShopIoT engineering team.

Specifications
  • Primary Communication Protocol
    LoRaWAN
  • Frequency/Region
    EU868
  • Antenna Type
    Internal
  • LoRaWAN Class
    Class A
  • Radio & Range

    Frequency band: EU868 (LoRaWAN Class A v1.0.3)

  • Configuration Method
    Bluetooth, USB, Downlink
  • Activation Method
    OTAA, ABP
  • Monitoring Parameters
    Temperature, Humidity, Motion (PIR), Battery Voltage
  • Measurement Technology

    Motion: external PIR sensor based on RDB223, 1 m cable

  • Measurement Range

    Temperature: -40 – +85°C

    Humidity: 0 – 96 %RH

    PIR detection distance: 0 – 3 m (stable)

  • Measurement Accuracy

    Temperature: ±0.3°C (typ.)

    Humidity: ±3 %RH (typ.)

    Temperature long-term drift: <0.02°C/yr

    Humidity long-term drift: <0.25 %RH/yr

  • Measurement Resolution

    Temperature: 0.01°C

    Humidity: 0.04 %RH

  • Power Source
    Battery (Non-rechargeable)
  • Battery Capacity
    2400mAh
  • Battery Life
    More than 5 years (manufacturer figure)
  • Dimensions
    95 × 40 × 28 mm
  • Weight
    105 g
  • Enclosure Material
    PC (Polycarbonate)
  • Mounting Options
    Wall Mount
  • Environment Rating
    Indoor
  • Operating Temperature
    -40°C to +85°C
  • Warranty
    1 Year

Document Library

LHT65N-PIR Datasheet
