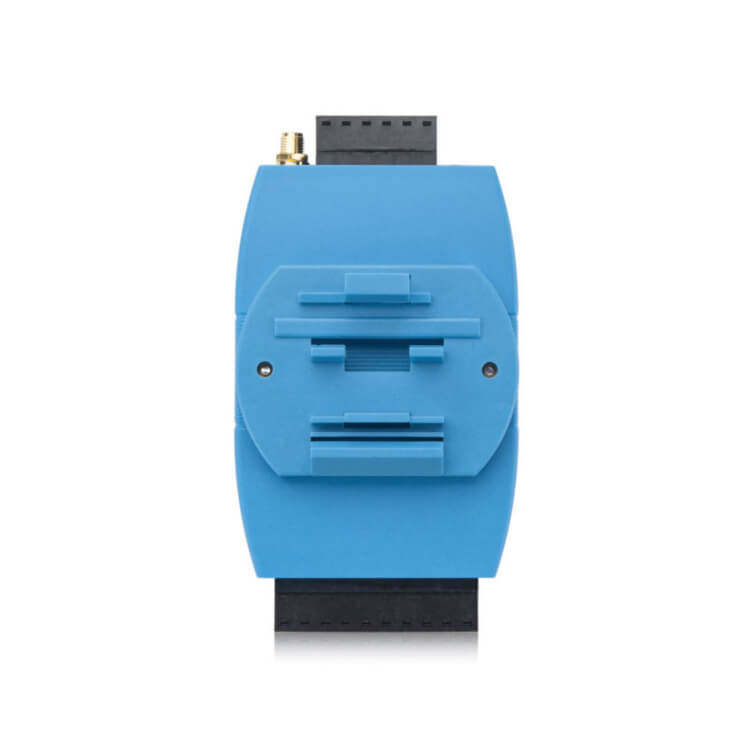

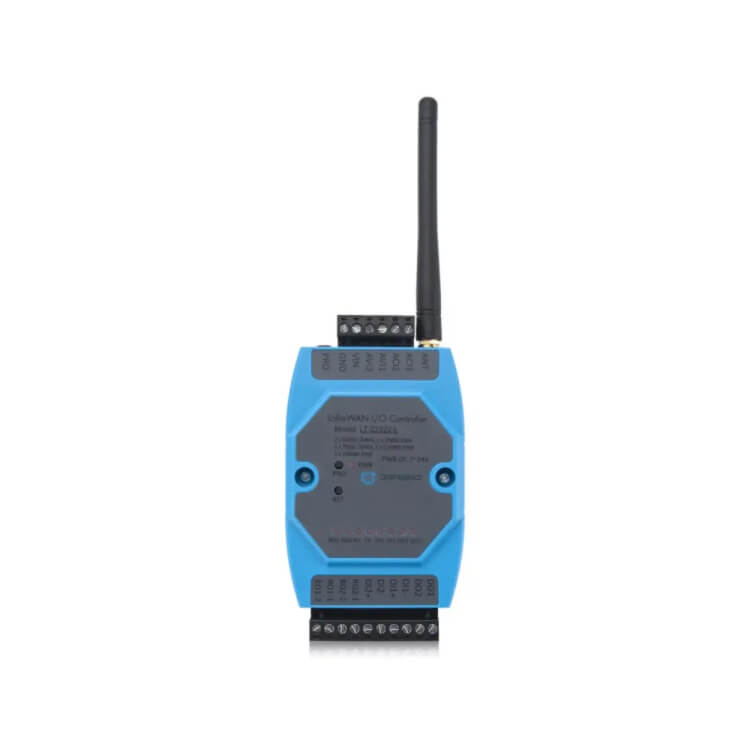

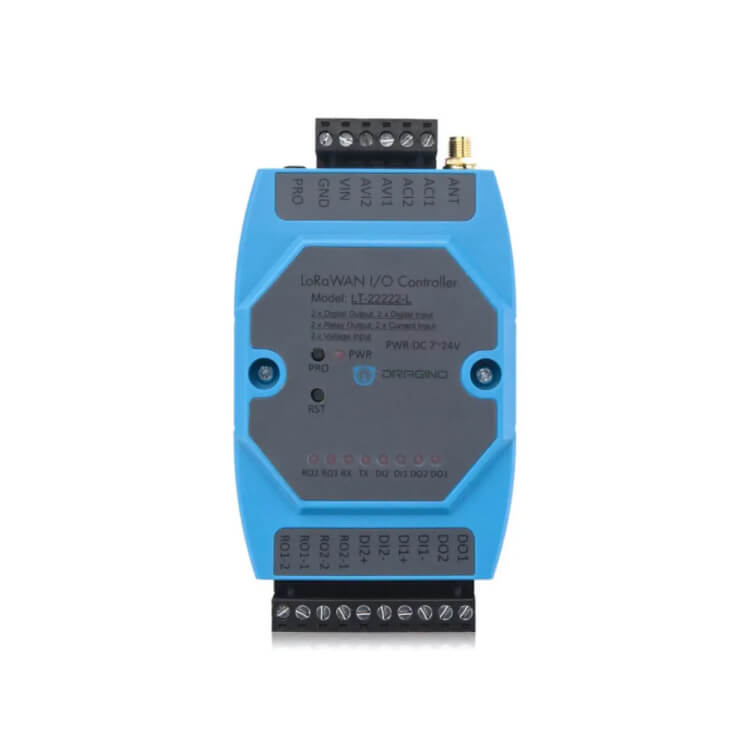

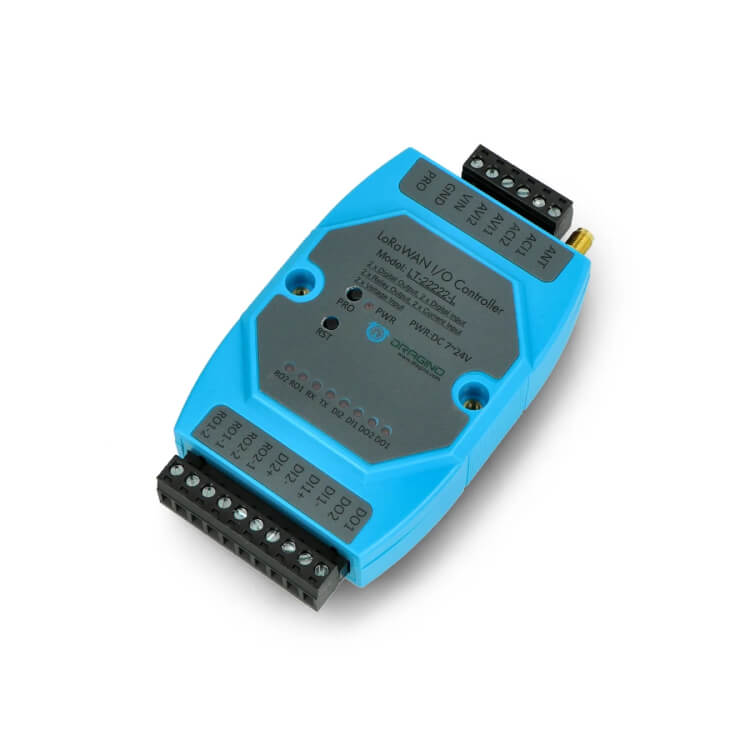

Dragino LT-22222-L | Multi-Interface Industrial LoRaWAN I/O Controller
The Dragino LT-22222-L is an industrial LoRaWAN I/O controller.
- Rich I/O in one unit: 2 analog, 2 current, 2 digital I/O and 2 relays
- Flexible LoRaWAN: Class A and C on an STM32L072 MCU
- Industrial power: wide 7–24 V DC input
Dragino LT-22222-L | Multi-Interface Industrial LoRaWAN I/O Controller - EU868 is backordered and will ship as soon as it is back in stock.
VAT & Business Purchases
VAT & Business Purchases
Prices are shown excluding VAT. For EU deliveries, VAT at the rate of your delivery country is added at checkout. EU businesses with a valid VAT number pay no VAT: enter your company name and VAT number at checkout and the order is invoiced under the intra-community reverse-charge rules. Orders delivered within Cyprus always include Cyprus VAT.
Secure Payment & Warranty
Secure Payment & Warranty
- Encrypted Checkout: Shop with confidence via Shopify Payments or PayPal Express for fully secure, PCI-compliant transactions.
- B2B Flexible Billing: For large-scale infrastructure orders, we offer Direct Bank Transfer (SEPA/SWIFT) options. Please contact our team for a pro-forma invoice.
- Warranty & Support: Consumer purchases are covered by the 2-year legal guarantee of conformity, and manufacturer warranty terms apply per brand. Our engineering team at shopioT provides technical support.
Delivery and Shipping
Delivery and Shipping
Tracked delivery within Cyprus by ACS Courier, and to all EU member states, the United Kingdom and Switzerland by FedEx International Priority. Orders ship from our warehouse in Nicosia, Cyprus, typically within 1–3 business days. Shipping cost is calculated at checkout by destination and parcel weight. See our Shipping Policy for rates and delivery times.
Dragino LT-22222-L | Multi-Interface Industrial LoRaWAN I/O Controller
Dragino LT-22222-L | Multi-Interface Industrial LoRaWAN I/O Controller - EU868 is backordered and will ship as soon as it is back in stock.
Description
Description
The Dragino LT-22222-L is a robust industrial LoRaWAN® I/O controller designed to simplify the integration of legacy industrial sensors into modern IoT architectures. By providing a comprehensive array of interfaces—including analog voltage, 4-20mA current, digital inputs, and relay outputs—it enables bidirectional communication and remote control over extreme ranges. Built on the SX1276/78 LoRa wireless chip, the LT-22222-L delivers superior interference immunity and ultra-low power consumption for reliable field operations.
Core Capabilities
Industrial Applications
Technical Integration
The LT-22222-L is fully compliant with LoRaWAN Class A and Class C protocols, enabling seamless connection to public networks or local gateways like the Dragino LPS8v2. It supports parameter modification via AT commands and firmware updates through a dedicated program port. For large-scale facility management or professional system integration, reach out to the ShopIoT technical team for architecture support.
Specifications
Specifications
-
Primary Communication ProtocolLoRaWAN
-
Frequency/RegionEU868
-
Antenna TypeExternal (SMA)
-
LoRaWAN ClassClass A, Class C
-
Radio & Range
-
Interfaces (I/O)Analog (0-30V), Analog Input (4-20mA), Digital Input (Dry Contact), Digital Output (Relay)
-
Configuration MethodSerial / USB-TTL
-
Activation MethodOTAA, ABP
-
Monitoring ParametersVoltage (V), Current (A), Pulse Count
-
Measurement Range
-
Measurement Resolution
-
Power SourceDC Input
-
Power Input
-
Power ConsumptionIdle: 4 mA @ 12 V, Transmit (20 dBm): 34 mA @ 12 V
-
Enclosure MaterialABS Plastic
-
Mounting OptionsDIN-Rail Mount, Wall Mount
-
Environment RatingIndustrial, Indoor
-
Operating Temperature-40°C to +85°C
-
Warranty2 Years
