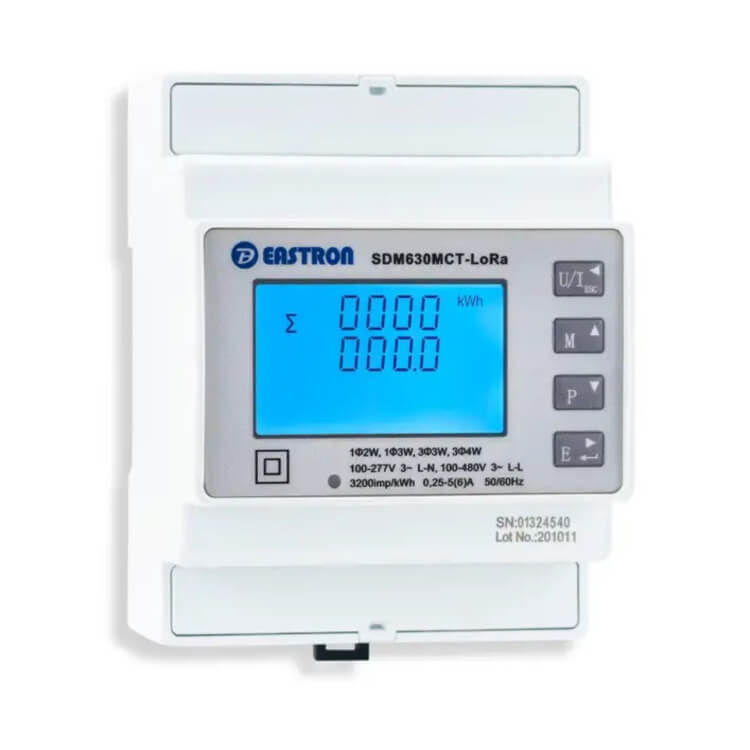

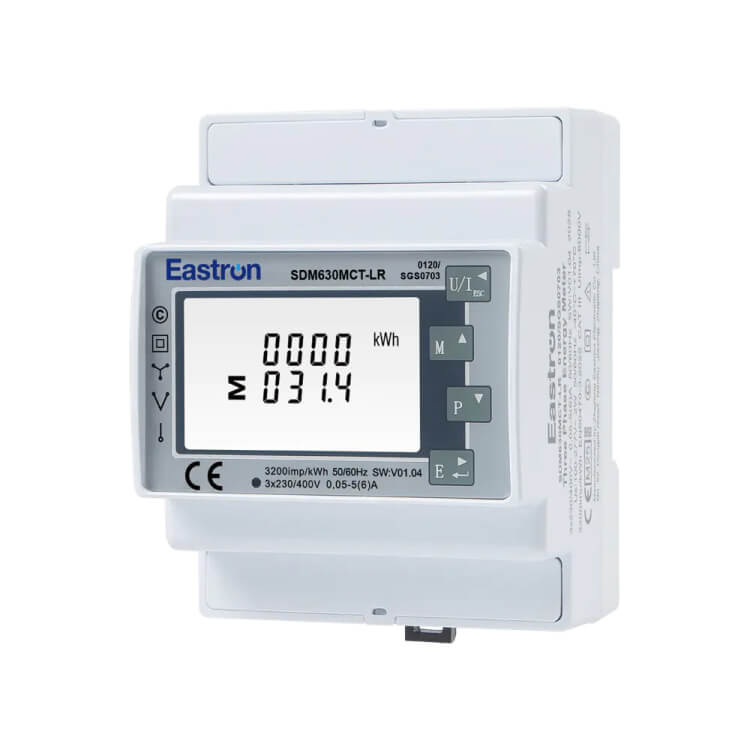

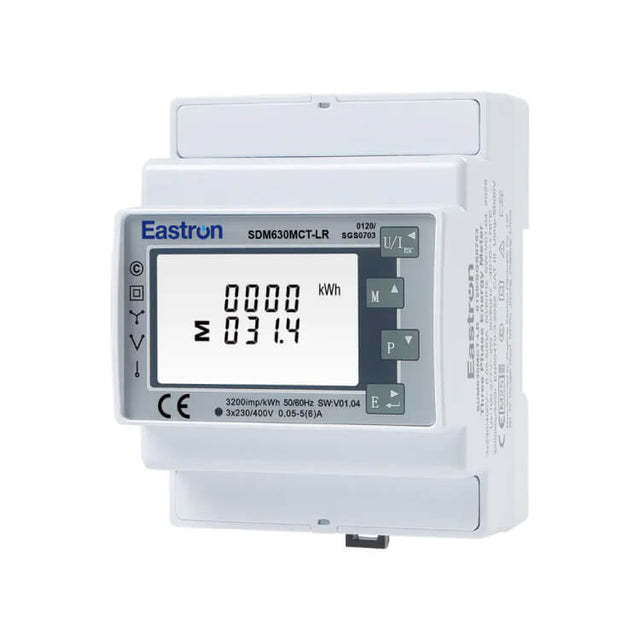

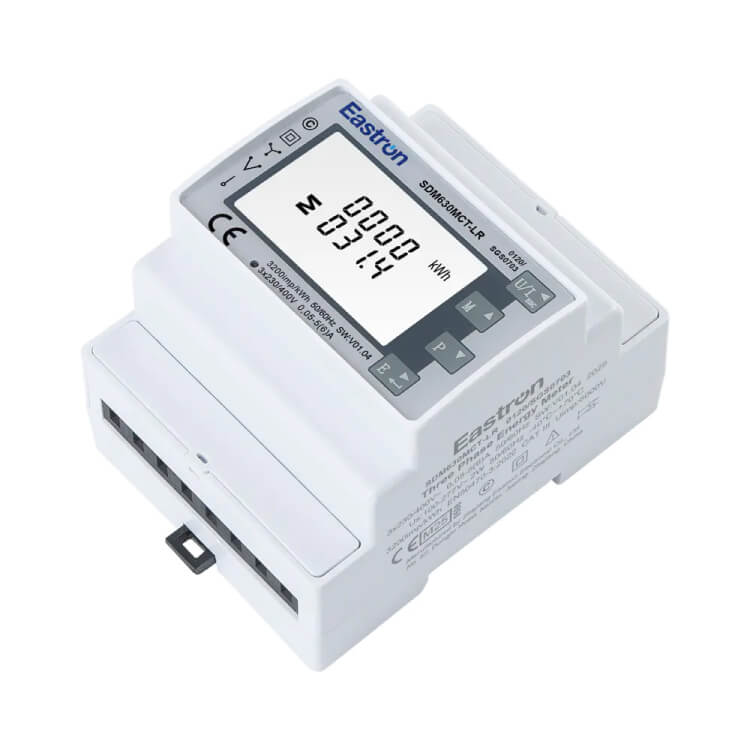

Eastron SDM630MCT LoRaWAN® Three Phase MID CT Operated Electronic Energy Meter (EU868)

Eastron SDM630MCT LoRaWAN® Three Phase MID CT Operated Electronic Energy Meter (EU868)

• MID Certified: Ensures compliance with relevant European standards (excluding SDM630MCT - MOD - MV).
• UL Listed: Recognized for safety standards.
• Class 0.5 Accuracy: Delivers high-precision measurements.
• Single/Three Phase Compatibility: Suitable for both single phase and three phase networks.
• DIN Rail Mounted: Facilitates easy installation.

VAT Exemption for EU Businesses: Validate Your VAT Number at Cart Page

Prices do not include VAT (Your local VAT & Shipping Cost will be calculated at Checkout)

€200,00 €235,00
Availability:
In stock
Product type:

Product Description

The SDM630MCT Series by Eastron Europe is a collection of versatile, high-quality energy meters designed for both single and three-phase monitoring. These meters are suitable for a variety of applications, including residential, commercial, and industrial energy monitoring. The series includes several models that offer different functionalities, such as Modbus RS485 & Pulsed Outputs, Mbus & Pulsed Outputs, and a variant with 0.333mV input (not MID certified).

Key Features

  • MID Certified: Ensures compliance with relevant European standards (excluding SDM630MCT - MOD - MV).
  • UL Listed: Recognized for safety standards.
  • Class 0.5 Accuracy: Delivers high-precision measurements.
  • Single/Three Phase Compatibility: Suitable for both single phase and three phase networks.
  • DIN Rail Mounted: Facilitates easy installation.
  • Backlit Display: Offers high visibility and easy reading of parameters.
  • Simple Menu Navigation: Enhances user experience.
  • Modbus and Pulsed Outputs: Provides versatile connectivity options, with an optional Mbus interface.

Displayed Parameters

  • Phase to Neutral Voltage (V)
  • Phase Current (A)
  • Voltage Total Harmonic Distortion (U%THD)
  • Current Total Harmonic Distortion (I%THD)
  • Frequency (Hz)
  • Power Factor (PF)
  • Current Max Demand (MD A)
  • Power Max Demand (MD kW)
  • Active Power (kW)
  • Reactive Power (kVAr)
  • Apparent Power (kVA)
  • Import/Export Active Energy (kWh)
  • Total Active Energy (kWh)
  • Import/Export Reactive Energy (kVArh)
  • Total Reactive Energy (kVArh)

Product Information

The SDM630MCT meters utilize the latest microprocessor technology, offering a range of measurements with a blue backlit display. They can detect negative power readings, indicating potential CT installation or connection reversals. These meters are fully compatible for integration with Building Management Systems (BMS) and remote monitoring systems, thanks to their built-in pulsed outputs and RS485 Modbus RTU.

Certifications & Standards

  • MID (EN50470-1 & EN50470-3 Class B)
  • EMC (EN61326-1 & EN61326-2-3)
  • LVD (EN61010-1 & EN61010-2-3)
  • UL Listed
  • IEC/EN62052-11:2003 Class 0.5s

The SDM630MCT Series from Eastron Europe is a reliable and advanced solution for energy metering, offering a range of features and certifications to meet various application needs​.

Product Downloads

Electrical characteristics
Type of measurement RMS including harmonics on three phase AC system (3P, 3P+N)
Measurement accuracy
- Active Energy IEC 62053-21 Class 1
- Reactive Energy IEC 62053-23 Class 2
- Frequency ± 0.2%
- Current ± 0.5%
- Voltage ± 0.5%
- Power ± 0.01
- Power Factor ± 0.01
- Update Rate 1 second nominal
Input-Voltage
- VT Primary 30 ~ 500000 Vac
- Un 230 V L-N
- Measured Voltage with Over-range 173 to 480 V AC L-L / 100 to 276 V AC L-N
- Impedance 1MΩ
- Frequency Range 45~65Hz
Input- Current
- CT Ratings
- Primary 1~9999A
- Secondary 1A / 5A
- Measured current with Over-range 6A
- Withstand Continuous 120A for 0.5 Seconds
- Impedance <1MΩ
- Frequency Range 45~65Hz
- Burden <0.036VA at 6A
Auxiliary Power Supply
- Operating Range 85~275V AC / 120~380V DC
- Power Consumption < 7VA/3.5W
- Frequency 45 to 65 Hz
- Max. reading 9999999.9 kWh/ kVArh
Mechanical Characteristics
Weight 330g
IP Degree of Protection (IEC 60529) IP51 (indoor)
Dimensions (WxHxD) 72x94.5x65mm
Mounting Din rail (DIN 43880)
Material of meter case Self-extinguishing UL 94 V-0
Mechanical environment M1
Environmental Characteristics
Operating Temperature -25 to 55°C
Storage Temperature -40 to 70°C
Humidity Rating <95% RH at 50 °C (non-condensing)
Pollution Degree 2
Altitude 2000m
Vibration 10Hz to 50Hz, IEC 60068-2-6
Safety
Measurement Category Per IEC61010-1 CAT III
Current Inputs Require external Current Transformer for Insulation
Over voltage Category CAT III
Dielectric Withstand As per IEC 61010-1 Double Insulated front panel display
Protective Class II
Communications
Interface standard and protocol LoRaWAN Specification 1.0.2
Frequency EU868/AS923/AU915/ US902/CN470/CN433
LoRaWAN Classes Class C
Auto-upload Max. 30 parameters
Auto-upload Interval Configurable
Activation Way OTAA or ABP
Output Power 13dBm in transmission
Coding Format ASCII
Communication Distance 1500M in an open area
