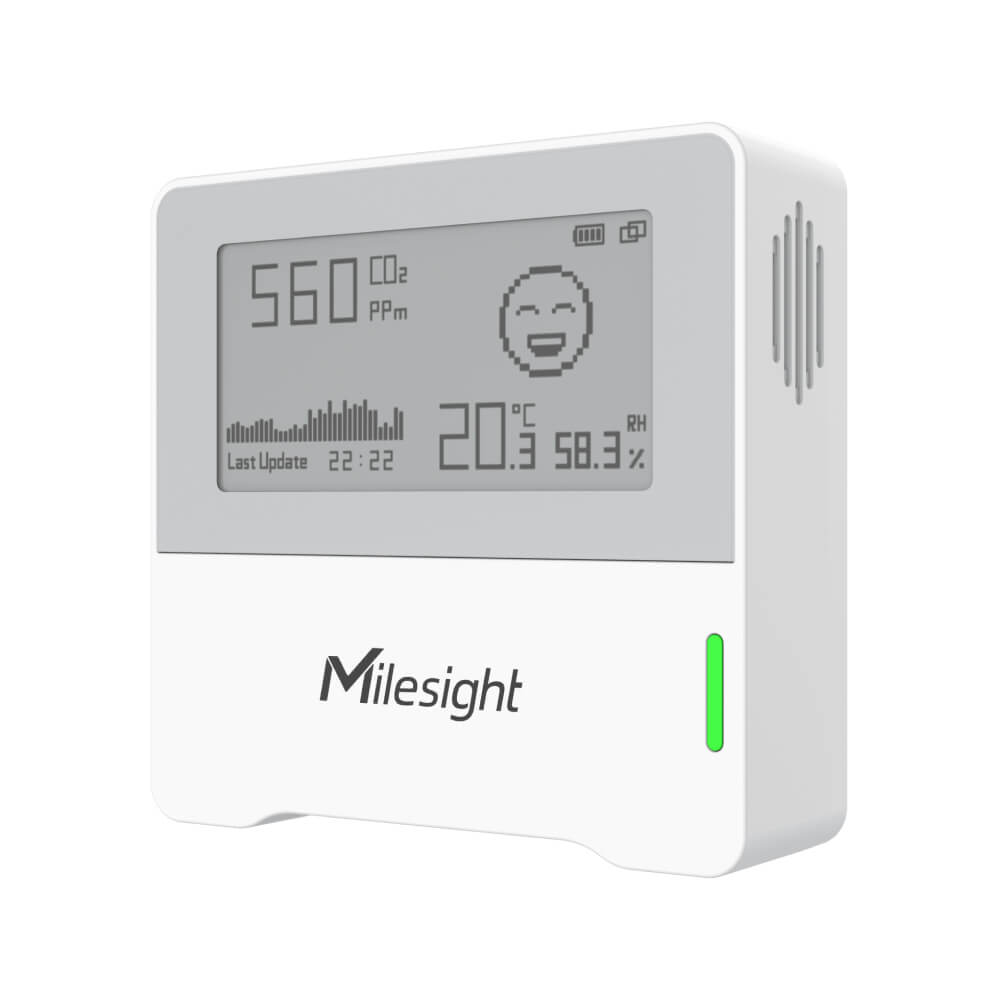

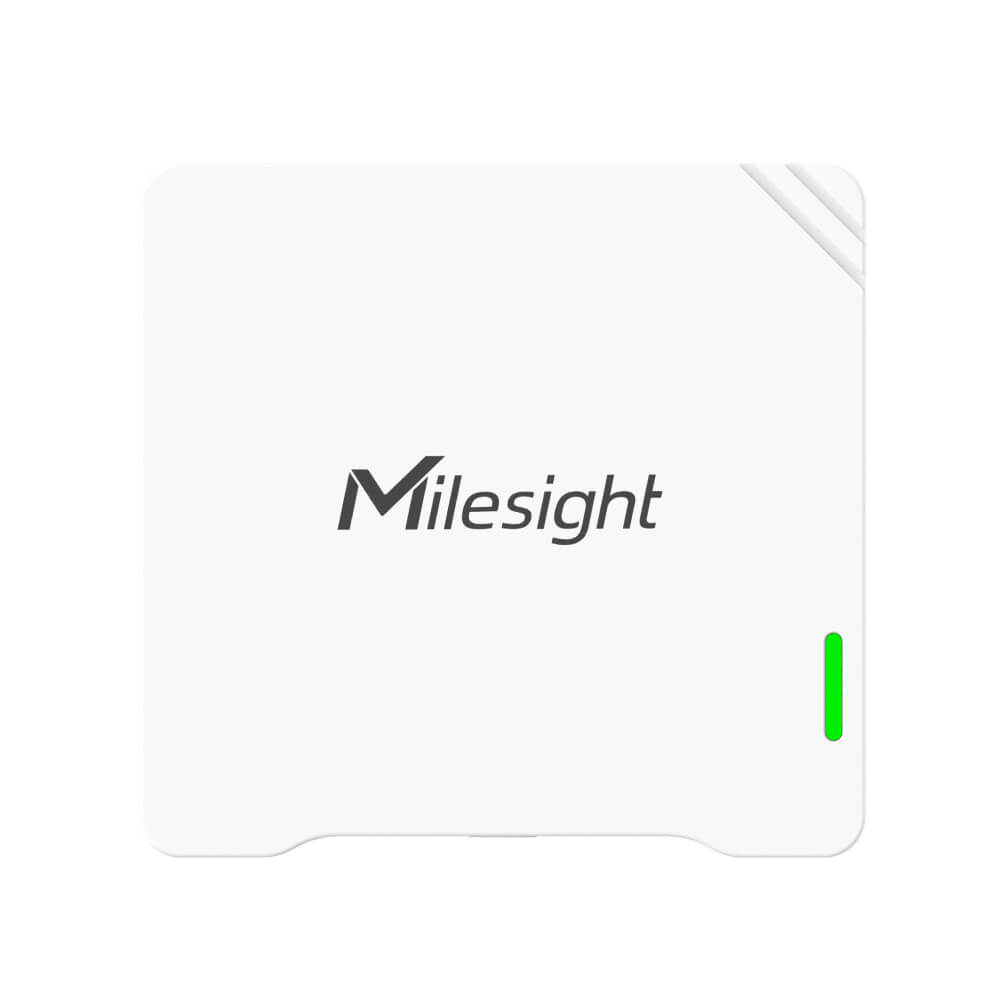

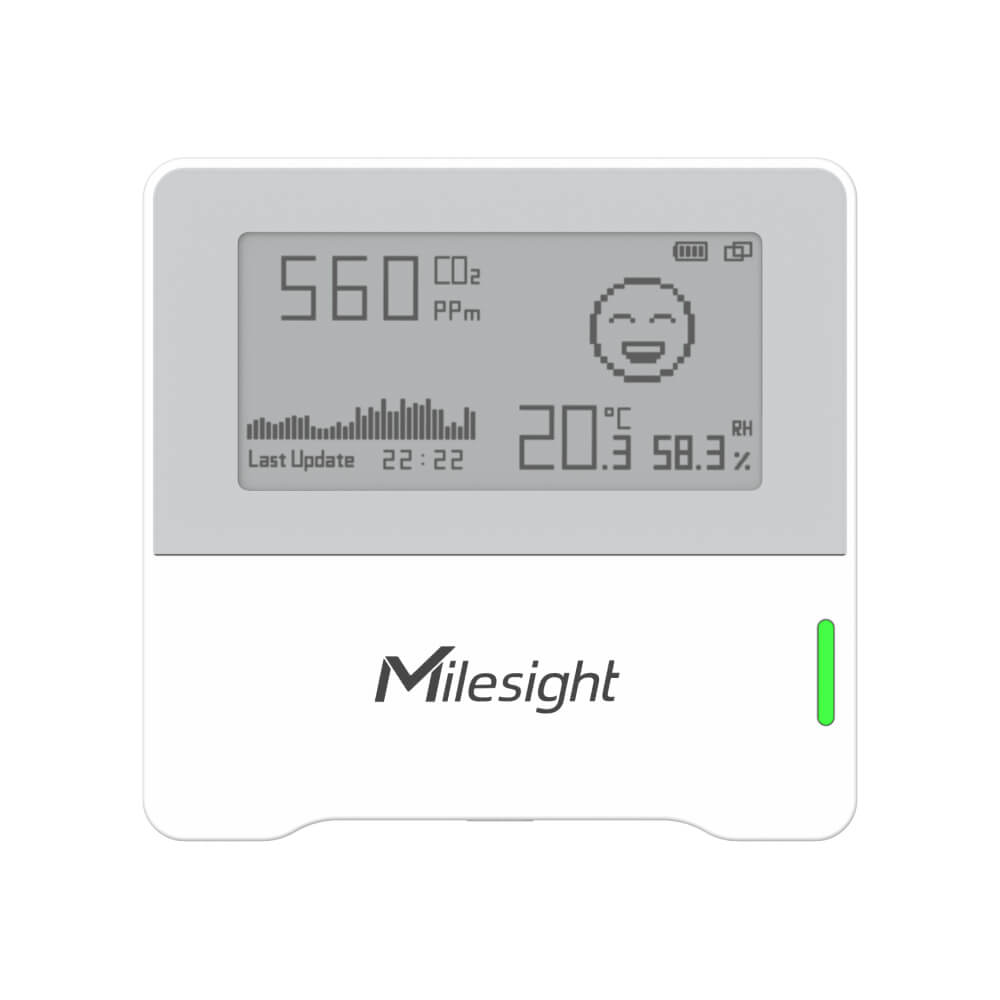

The Milesight AM103 series provides high-precision indoor environmental monitoring for smart offices, schools, and healthcare facilities. These compact LoRaWAN sensors measure CO2 concentration, temperature, and humidity to help optimize ventilation and occupant comfort. The series includes two versions: the AM103, which features a 2.13-inch E-ink display for real-time visual data and comfort emoticons, and the AM103L, a cost-effective "blind" version designed for data collection without a local display. Both models utilize a traffic light LED indicator to provide immediate status alerts based on customizable CO2 thresholds.
Health & Energy Intelligence
Indoor Environment Scenarios
What is in the Box?
Product Certifications
| Feature | AM104 | AM107 |
|---|---|---|
| Wireless Transmission | ||
| Technology | LoRaWAN® | LoRaWAN® |
| Frequency | CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4 | CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4 |
| Tx Power | 16dBm (868 MHz)/20dBm (915 MHz)/19dBm (470 MHz) | 16dBm (868 MHz)/20dBm (915 MHz)/19dBm (470 MHz) |
| Sensitivity | -137dBm @300bps | -137dBm @300bps |
| Mode | OTAA/ABP Class A | OTAA/ABP Class A |
| Sensors | ||
| Temperature | ||
| Sensor Type | MEMS | MEMS |
| Range | -20°C to + 70°C | -20°C to + 70°C |
| Accuracy | 0°C to + 70°C (+/- 0.3°C), -20°C to 0°C (+/- 0.6°C) | 0°C to + 70°C (+/- 0.3°C), -20°C to 0°C (+/- 0.6°C) |
| Resolution | 0.1°C | 0.1°C |
| Humidity | ||
| Sensor Type | MEMS | MEMS |
| Range | 0% to 100% RH | 0% to 100% RH |
| Accuracy | 10% to 90% RH (+/- 3%), below 10% and above 90% RH (+/- 5%) | 10% to 90% RH (+/- 3%), below 10% and above 90% RH (+/- 5%) |
| Resolution | 0.5% RH | 0.5% RH |
| PIR (Motion) | ||
| Detection Area | 94° Horizontal, 82° Vertical | 94° Horizontal, 82° Vertical |
| Detection Distance | 5 m | 5 m |
| Output Range | 0-65535 | 0-65535 |
| Light | ||
| Range | 60000 lux (Visible + IR, IR) | 60000 lux (Visible + IR, IR) |
| Accuracy | ±30% | ±30% |
| CO2 (Carbon Dioxide) | Nondispersive Infrared (NDIR) | Nondispersive Infrared (NDIR) |
| Range | 400 - 5000 ppm | 400 - 5000 ppm |
| Accuracy | ±(30 ppm + 3% of reading) | ±(30 ppm + 3% of reading) |
| Resolution | 1 ppm | 1 ppm |
| TVOC | MEMS | MEMS |
| Range | 0 - 60000 ppb | 0 - 60000 ppb |
| Accuracy | ±15% | ±15% |
| Resolution | 1 ppb | 1 ppb |
| Long-term Stability | 1.3% accuracy drift per year | 1.3% accuracy drift per year |
| Barometric Pressure | MEMS | MEMS |
| Range | 300 - 1100 hPa | 300 - 1100 hPa |
| Accuracy | ±1 hPa | ±1 hPa |
| Resolution | 0.1 hPa | 0.1 hPa |
| Display & Configuration | ||
| Display | 2.13-inch Black & White E-Ink Screen | 2.13-inch Black & White E-Ink Screen |
| Configuration | Mobile App via NFC, PC software via NFC or USB Type-C port | Mobile App via NFC, PC software via NFC or USB Type-C port |
| Physical Characteristics | ||
| Power Supply | 2 × 1.5V AA Alkaline Batteries or Type-C Port | 2 × 1.5V AA Alkaline Batteries or Type-C Port |
| Battery Life | Around 1.5 Years | Around 1 Year |
| Operating Temperature | 0°C to +45°C | 0°C to +45°C |
| Relative Humidity | 0% to 100% (non-condensing) | 0% to 100% (non-condensing) |
| Ingress Protection | IP30 | IP30 |
| Dimension | 105 × 70.4 × 21.2 mm | 105 × 70.4 × 21.2 mm |
| Installation | Wall Mounting | Wall Mounting |
| Approvals | ||
| Regulatory | CE, FCC, RoHS, LoRaWAN® Certified | CE, FCC, RoHS, LoRaWAN® Certified |
| EMC | EN 55032, EN 55035 | EN 55032, EN 55035 |
| EMS | IEC 61000-4-2 Level 3, IEC 61000-4-3 Level 2, IEC 61000-4-4 Level 4 | IEC 61000-4-2 Level 3, IEC 61000-4-3 Level 2, IEC 61000-4-4 Level 4 |
| Radio Frequency | FCC Part 15B, FCC Part 15.247, EN 300 330, EN 301 489-1/3, EN 300 220-1/2 | FCC Part 15B, FCC Part 15.247, EN 300 330, EN 301 489-1/3, EN 300 220-1/2 |
| Safety | EN62368-1 | EN62368-1 |
