Milesight | SKU: AM304L-868M

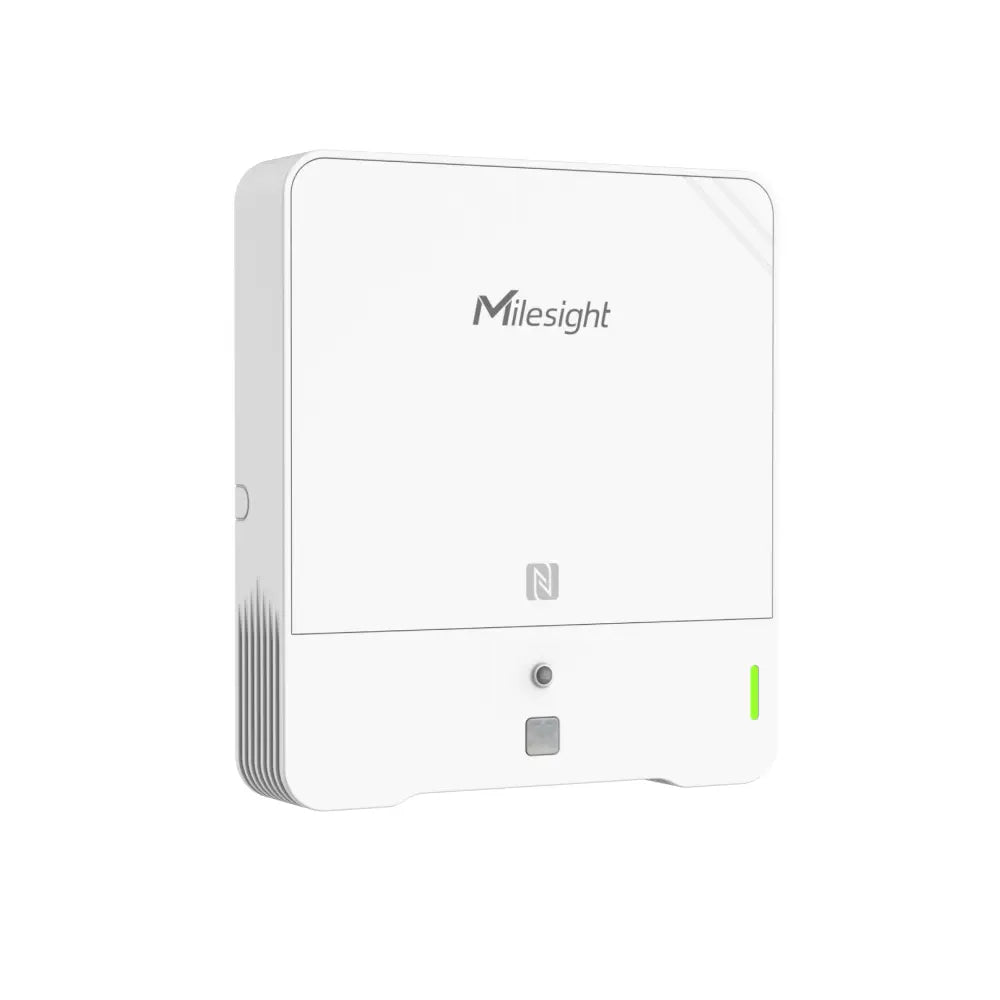

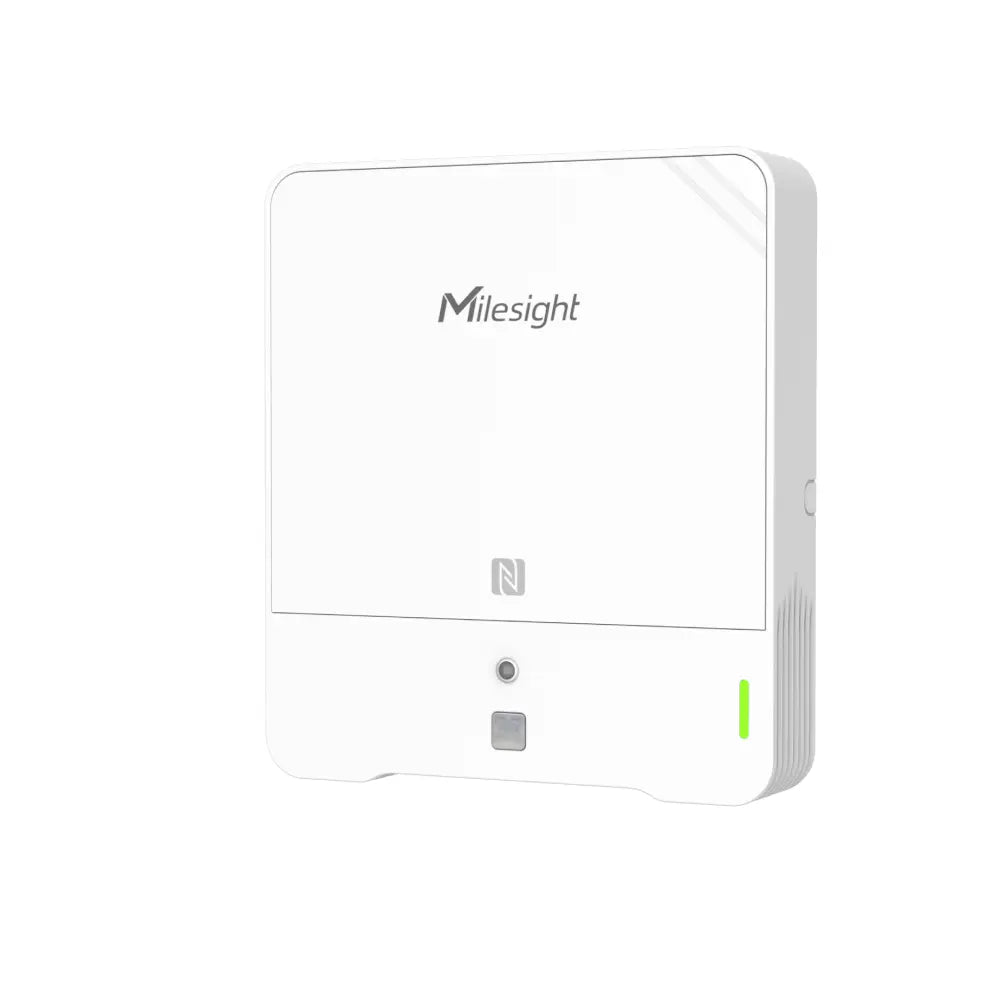

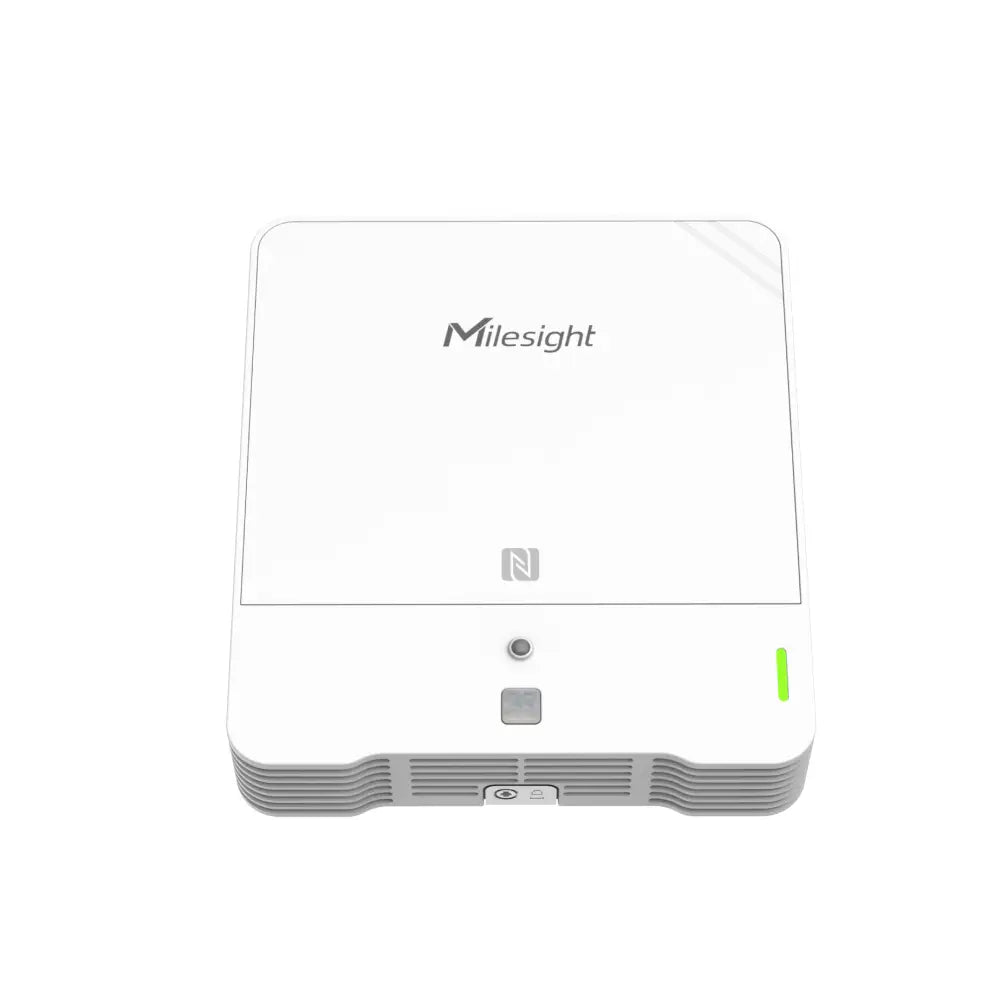

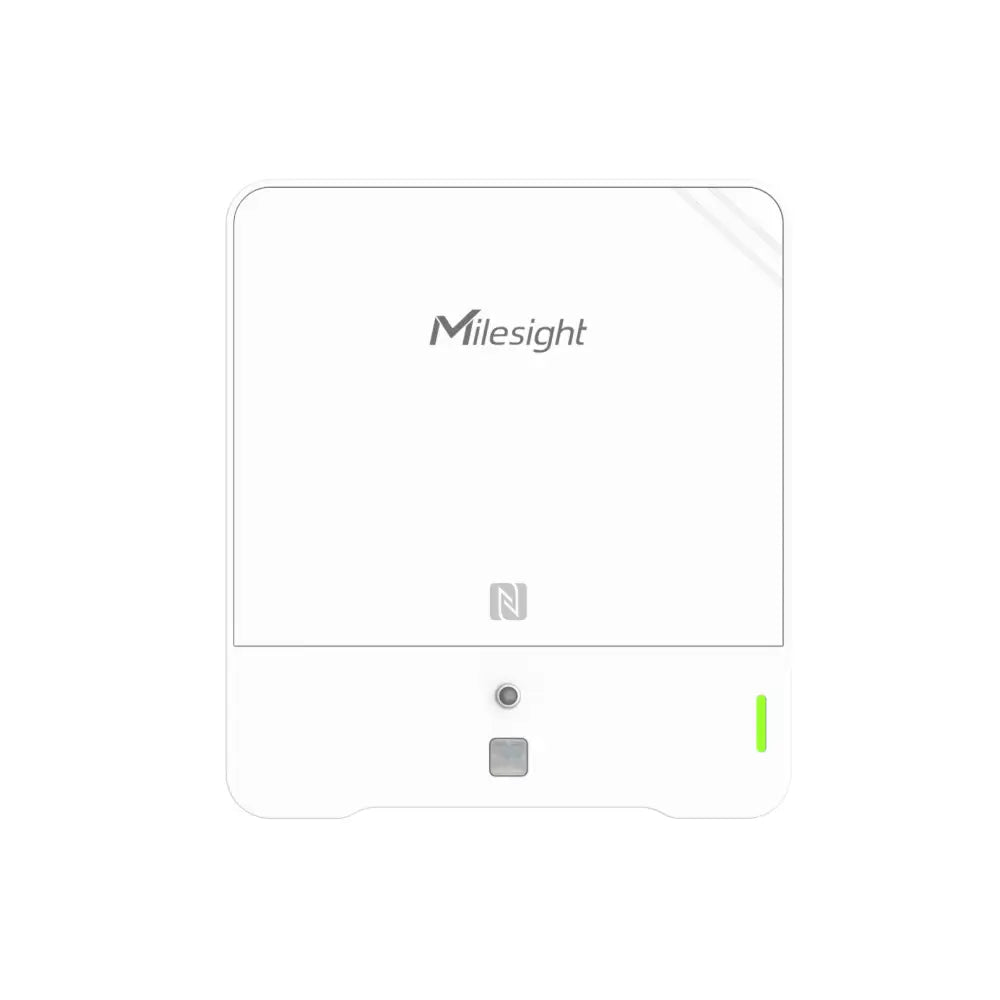

Milesight AM304L | LoRaWAN® 4-in-1 IAQ & Occupancy Sensor | Temperature, Humidity, Light, PIR

€82,00

Shipping calculated at checkout.

The Milesight AM304L is a battery-powered LoRaWAN® 4-in-1 sensor monitoring temperature, humidity, ambient light, and PIR occupancy — with up to 7-year battery life and tool-free NFC configuration for large-scale smart-building deployments.

Sensors: Temp (±0.2°C) | Humidity (±2% RH) | Light (0–60,000 Lux) | PIR (5m, 80°×55°)
Connectivity: LoRaWAN® Class A | OTAA & ABP | NFC Config
Power: 4× ER14505 Li-SOCl₂ | Up to 7 Years (SF7/EU868) | USB-C Backup
Build: IP30 | PC+ABS (V0) | 100.8×114×22mm | CE, FCC, ISED, RoHS

Frequency/Region

VAT Free Transaction Option

Our store displays prices excluding VAT by default. For EU-based businesses with a valid VAT number, intra-community VAT exemptions apply. You can validate your VAT number during the checkout process to ensure correct billing.

Secure Payment & Warranty

Encrypted Checkout: Shop with confidence via Shopify Payments or PayPal Express for fully secure, PCI-compliant transactions.
B2B Flexible Billing: For large-scale infrastructure orders, we offer Direct Bank Transfer (SEPA/SWIFT) options. Please contact our team for a pro-forma invoice.
Quality Guaranteed: All professional IoT hardware is backed by a 2-year manufacturer warranty and technical support from our engineering experts at shopioT.

Delivery and Shipping

Reliable, tracked, and fast global shipping via FedEx Express. Your professional IoT hardware is dispatched from our EU-based warehouse within 2 business days.

Input your company name and a valid EU VAT number at the checkout page for a VAT Free Transaction.

Description

The Milesight AM304L is a battery-powered LoRaWAN® 4-in-1 indoor sensor that simultaneously monitors temperature, relative humidity, ambient light, and PIR occupancy. Part of the Milesight AM300 series, it is built for smart offices, classrooms, healthcare facilities, and commercial buildings where accurate environmental and occupancy data drives comfort, energy savings, and space optimisation.

Powered by four pre-installed ER14505 Li-SOCl₂ batteries for up to 7 years of maintenance-free operation, the AM304L is configured entirely tool-free via NFC tap (or USB-C with PC software) and integrates natively with Milesight IoT Cloud and the Milesight Development Platform, plus third-party Building Management Systems via open API and Webhooks.

Core Capabilities

Up to 7-Year Battery Life Four pre-installed 2700 mAh ER14505 Li-SOCl₂ replaceable batteries deliver up to 7 years of operation (SF7/EU868, 10-minute interval, 25°C). A USB Type-C port provides an optional 5V/1A wired power alternative for permanent installations.

High-Accuracy MEMS Sensing Temperature accuracy of ±0.2°C and humidity accuracy of ±2% RH via Digital CMOSens® MEMS technology, with 0.1°C and 0.5% RH resolution. An insulation design minimises heat from onboard electronics to preserve measurement integrity.

Light & PIR Occupancy Detection A photodiode reports ambient light across 6 levels (0–60,000 Lux), while the passive-infrared sensor (80° horizontal / 55° vertical, up to 5 m) reports occupied/vacant status — feeding HVAC control, lighting automation, and space-utilisation analytics.

Tool-Free NFC Setup & Data Integrity Configure in seconds via NFC tap with the Milesight ToolBox app, or via USB-C with the PC software. On-device historical storage with data retransmission guarantees full delivery to the server during network interruptions.

Typical Applications

Smart Offices & Corporate Buildings: Monitor workspace temperature, humidity, and occupancy in real time to enable demand-driven HVAC control and energy optimisation — cutting waste in unoccupied zones and improving thermal comfort.

Educational Facilities: Track classroom conditions across entire campuses with a single device SKU. Temperature, humidity, light, and occupancy data support ventilation scheduling and healthier learning environments.

Healthcare & Life Sciences: Maintain stable conditions across patient rooms and laboratory spaces, with on-device historical storage supporting audit-ready environmental records.

Space Utilisation & BMS Integration: PIR occupancy output feeds directly into Building Management Systems and space analytics platforms, enabling evidence-based facility planning and automated lighting or HVAC actuation.

Technical Integration

The AM304L operates on LoRaWAN® Class A with OTAA or ABP join modes across CN470, EU868, US915, AU915, AS923, KR920, IN865, and RU864 bands. It integrates natively with Milesight IoT Cloud and the Milesight Development Platform for bulk device management, OTA firmware updates, and open API / Webhook connectivity to third-party BMS and smart-building platforms, and is compatible with Milesight LoRaWAN® gateways (UG65, UG67, UG56, SG50) and standard network servers including The Things Network, ChirpStack, and AWS IoT Core. Mounts via 3M tape or wall screws; recommended installation height is at least 1.5 m. For deployment sizing, gateway selection, or platform integration, contact the ShopIoT technical team.

What's in the Box

1×AM304L Device (batteries pre-installed)

1×Mounting Bracket

1×3M Double-Sided Tape

3×Wall Mounting Kits

1×Theft-Deterring Screw

1×Quick Guide

1×Warranty Card

Note: the USB Type-C cable & power adapter is not included (ships with the AM319 only) and is available separately. A LoRaWAN® gateway is required for data transmission and is sold separately.

Frequently Asked Questions

What does the AM304L measure?

Temperature, relative humidity, ambient light (6 levels, 0–60,000 Lux), and PIR occupancy (occupied/vacant). Note: the AM304L does not measure CO₂, TVOC, or particulate matter — those are available on higher AM300 models (AM307/AM308/AM319).

How long does the battery last, and how is it powered?

Up to 7 years on four pre-installed 2700 mAh ER14505 Li-SOCl₂ batteries (SF7/EU868, 10-min interval). A USB Type-C port offers optional 5V/1A wired power; note the Type-C port does not charge the batteries.

Does it have a display or buzzer?

No. The AM304L has no E-ink screen or buzzer — those features are available on the AM307, AM308, and AM319 models.

Does it need a LoRaWAN gateway?

Yes. The AM304L is LoRaWAN® Class A and works with standard gateways and network servers (e.g. The Things Network, ChirpStack) plus Milesight UG65/UG67. A gateway is sold separately.

How is it configured?

Tool-free via NFC tap using the Milesight ToolBox mobile app, or via USB-C using the Milesight ToolBox PC software.

Where should it be installed?

On a wall or flat surface at least 1.5 m above the floor, with a clear path for the PIR and light sensors, away from windows, vents, and heat/cold sources, and not upside down.

Certifications

FCC

ISED

RoHS

Planning a Smart-Building Rollout?

Talk to our IoT specialists, or explore the hardware you'll need.

Talk To Our IoT Team Browse Air Quality Sensors Shop LoRaWAN Gateways

Specifications

Primary Communication Protocol

LoRaWAN, Milesight D2D
Frequency/Region

EU868
Antenna Type

Internal
Configuration Method

NFC, Downlink
Activation Method

OTAA, ABP
Environment Rating

Indoor
IP Rating

IP30
Operating Temperature

-20°C to 60°C
Enclosure Material

PC (Polycarbonate), ABS Plastic
Battery Type

Li-SOCl2
Battery Capacity

10800mAh
Power Consumption

~14 years (SF7, EU868, 10-min interval, 25°C), ~7.5 years (SF10, EU868)
Measurement Technology
- Digital CMOSens® MEMS — temperature & humidity
- Photodiode — ambient light
- Passive Infrared (PIR) — occupancy / motion detection
Measurement Range

• Temperature: −20°C to +60°C
• Humidity: 0% to 100% RH
• Light: 0 to 60,000 Lux
• PIR Detection Range: 3 m (80° H × 55° V)
Measurement Accuracy

• Temperature: ±0.3°C (−20°C to 0°C) / ±0.2°C (0°C to 60°C)
• Humidity: ±2% RH @ 25°C (typical)
• Light: ±30%
Measurement Resolution

• Temperature: 0.1°C
• Humidity: 0.5% RH
• Light: 1 Lux
Interfaces (I/O)

LEDs, Button, USB Type-C, NFC
Monitoring Parameters

Temperature, Humidity, Light Intensity (Lux), Motion (PIR)
