Milesight  |  SKU: EM500-PT100-868M PN: T200

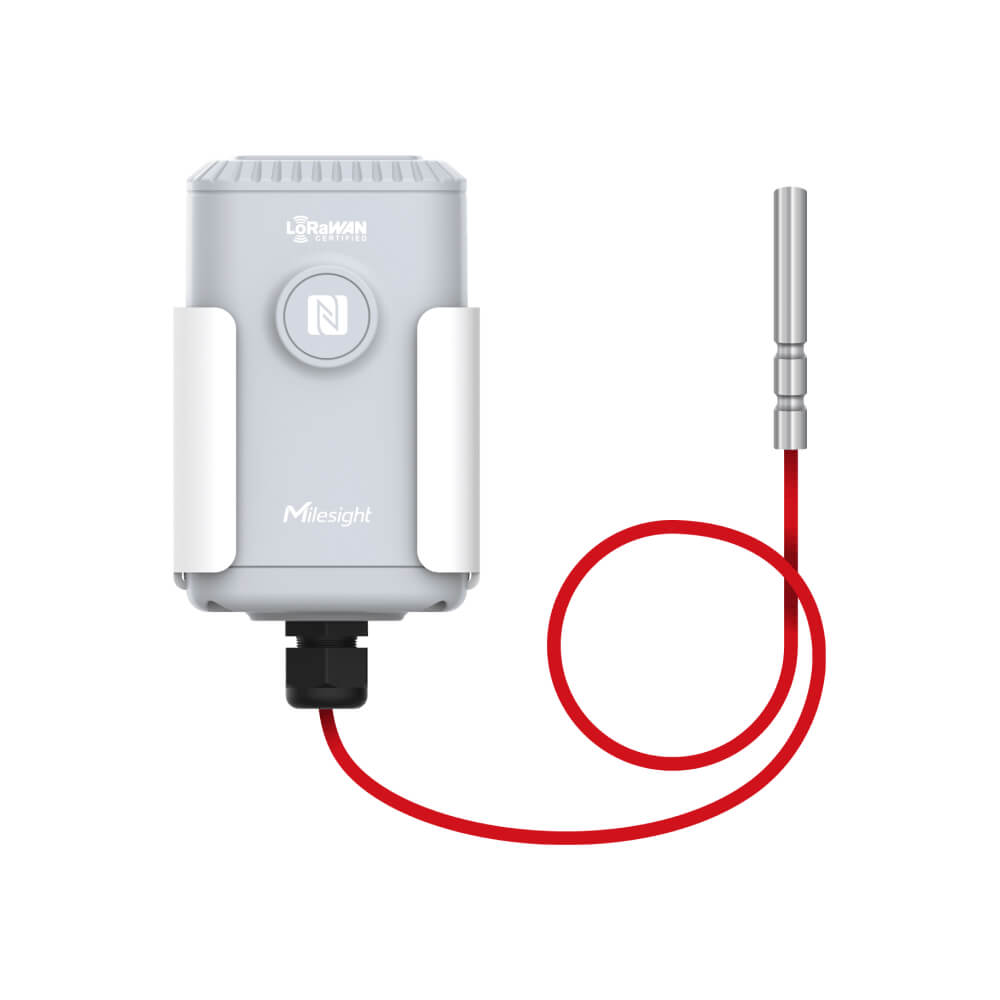

Milesight EM500-PT100 | Industrial LoRaWAN Temperature Sensor

€134,00
Shipping calculated at checkout.

A professional-grade platinum resistance (PT100) sensor designed for high-precision temperature monitoring in extreme industrial environments.

  • • Extreme Precision: 3-wire PT100 connection for high-accuracy measurement.
  • • Wide Range: Supports monitoring from -200°C up to +800°C (depending on probe).
  • • Industrial Durability: IP67-rated enclosure with a 10-year battery life.

VAT Free Transaction Option

Our store displays prices excluding VAT by default. For EU-based businesses with a valid VAT number, intra-community VAT exemptions apply. You can validate your VAT number during the checkout process to ensure correct billing.

Secure Payment & Warranty
  • Encrypted Checkout: Shop with confidence via Shopify Payments or PayPal Express for fully secure, PCI-compliant transactions.
  • B2B Flexible Billing: For large-scale infrastructure orders, we offer Direct Bank Transfer (SEPA/SWIFT) options. Please contact our team for a pro-forma invoice.
  • Quality Guaranteed: All professional IoT hardware is backed by a 2-year manufacturer warranty and technical support from our engineering experts at shopioT.

Delivery and Shipping

Reliable, tracked, and fast global shipping via FedEx Express. Your professional IoT hardware is dispatched from our EU-based warehouse within 2 business days.

Input your company name and a valid EU VAT number at the checkout page for a VAT Free Transaction.

Description

The Milesight EM500-PT100 is a specialized Industrial LoRaWAN Temperature Sensor engineered to bridge the gap between heavy industrial equipment and modern IoT ecosystems. Utilizing a high-stability platinum resistance thermometer, the EM500-PT100 provides accurate temperature readings across an incredibly wide range. Whether monitoring cryogenic storage or high-temperature industrial ovens, the device's 3-wire configuration minimizes lead resistance errors, ensuring professional-grade data integrity for critical processes in smart manufacturing, healthcare, and utility management.

Engineered for Extreme Reliability

10-Year Field Autonomy Equipped with a massive 19,000 mAh replaceable Li-SOCl2 battery, the sensor operates maintenance-free for up to a decade, even with frequent reporting intervals.
Smart Data Recovery Features local data storage and automatic retransmission capabilities, ensuring that historical temperature records are never lost during temporary network downtime.

Industrial Monitoring Scenarios

• Food & Beverage: Monitor industrial ovens and cooking processes to ensure regulatory compliance and product quality.
• Energy & Utilities: Track chimney, boiler, and pipe temperatures to optimize thermal efficiency and prevent equipment overheating.
• Medical & Labs: Maintain precise environmental conditions in laboratories and cryogenic storage units with high-accuracy platinum probes.

What is in the Box?

• 1 x Milesight EM500-PT100 Transceiver
• 1 x PT100 Temperature Probe (Selected Configuration)
• 1 x 19,000 mAh ER34615 Battery (Pre-installed)
• 1 x Mounting Kit & Quick Start Guide

Product Certifications

CE FCC IP67 RoHS

Specifications
  • Primary Communication Protocol
    LoRaWAN, Milesight D2D
  • Frequency/Region
    EU868
  • Antenna Type
    Internal
  • Configuration Method
    NFC
  • Activation Method
    OTAA, ABP
  • Environment Rating
    Outdoor
  • IP Rating
    IP67
  • Operating Temperature
    -30°C to 70°C
  • Enclosure Material
    PC (Polycarbonate), ABS Plastic
  • Battery Type
    Li-SOCl2
  • Battery Capacity
    19000mAh
  • Power Consumption
    10 Years (10 min interval)
  • Measurement Technology
    • Precision PT100 Sensing: Utilizes a 3-wire platinum resistance thermometer (PRT) configuration to provide high-accuracy temperature readings while compensating for cable resistance.
    • Milesight D2D Protocol: Enables ultra-low latency direct control (< 1s) between the sensor and other D2D-enabled Milesight controllers without requiring a gateway.
    • Industrial Endurance: Features a corrosion-resistant cable and multiple probe options designed for stable monitoring in ovens, pipes, and industrial machinery.
    • Data Retrievability: Supports local storage of historical records and automated retransmission features to ensure zero data loss during network outages.
    • Long-term Autonomy: Powered by a 19,000 mAh replaceable battery, delivering a service life of up to 10 years in typical industrial deployments.
  • Measurement Range
    • Extreme Operating Band: Capable of monitoring temperatures from -200°C to +800°C, depending on the specific probe selection (T200, T500, or T800).
    • Probe Versatility: Supports various probe types including 304 stainless steel and Teflon-coated variants for liquid, gas, or solid monitoring.
    • High Penetration: Maintains reliable LoRaWAN transmission up to 10km line-of-sight, suitable for large-scale industrial facilities.
  • Measurement Accuracy
    • Class A Performance: Delivers high-fidelity accuracy (typically ±0.5°C) across critical monitoring ranges for medical and laboratory use.
    • Signal Reliability: Features an industry-leading -137dBm receiver sensitivity to ensure data reaches the gateway from dense industrial environments.
    • Stable Baseline: Optimized circuitry minimizes drift over time, ensuring consistency across the sensor's 10-year designed lifetime.
  • Measurement Resolution
    • Fine Granularity: Provides data resolution down to 0.1°C, essential for monitoring precise thermal changes in boilers, chimneys, and ovens.
    • Configurable Intervals: Reporting frequency is fully adjustable from 1 to 1080 minutes to align with specific B2B operational requirements.
    • NFC Provisioning: Instant configuration and data resolution adjustments via the Milesight ToolBox App using NFC technology.
  • Monitoring Parameters
    Temperature

Document Library

EM500-PT100 Datasheet

EM500-PT100 User Manual
