Product Description

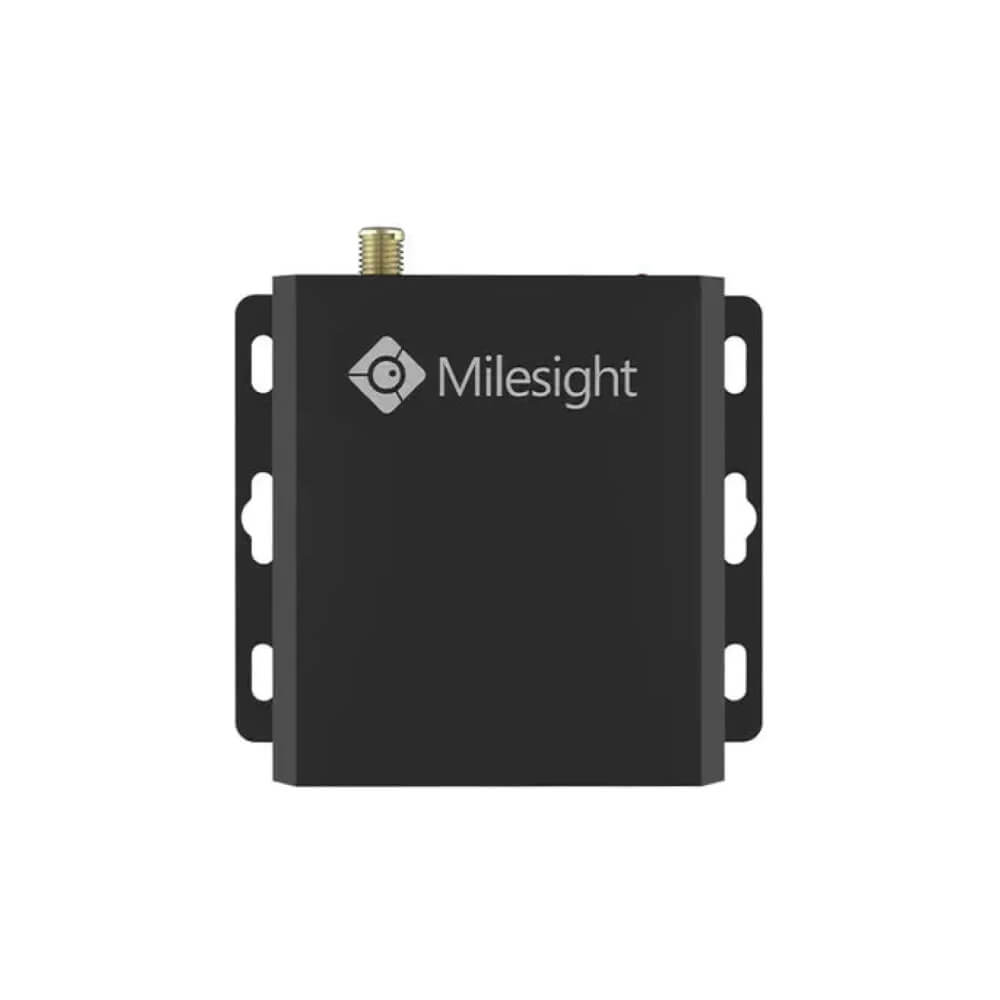

The UC11 series LoRa wireless controller is a robust and versatile device engineered for efficient data acquisition in various indoor applications like smart industries and building automation. It is a vital component in the deployment and management of LoRaWAN® networks, thanks to its diverse I/O interfaces including analog inputs, digital inputs, relay outputs, and serial ports. This multi-functional controller simplifies the process of connecting multiple wired sensors, making it a highly adaptable solution for modern IoT infrastructures.
One of the distinguishing features of the UC11 series is its ability to operate autonomously without network connectivity, thanks to its support for multiple triggering conditions and actions. This ensures continuous operation and reliability in critical monitoring and control applications. The industrial-grade design of the UC11, encapsulated in an IP30-rated metal case, speaks to its durability and suitability for harsh indoor environments.
Additionally, the UC11 series is easily managed through the Milesight IoT Cloud solution, offering a user-friendly interface for real-time data monitoring and system management. Its compliance with standard LoRaWAN® gateways and network servers further underscores its versatility and ease of integration into existing IoT networks.
Product Features
- Multiple Wired Sensor Connectivity: Easy connection through GPIO, RS232, and RS485 interfaces.
- Ultra-Wide-Distance Transmission: Capable of transmitting up to a line of sight of 10 km.
- Autonomous Operation: Supports multiple trigger conditions and actions for reliable performance without network connectivity.
- Embedded Watchdog: Ensures work stability and continuous operation.
- Industrial Metal Case Design: Durable and robust with a wide operating temperature range, ideal for indoor applications.
- Standard LoRaWAN® Compliance: Compatible with standard LoRaWAN® gateways and network servers.
- Milesight IoT Cloud Solution: Facilitates quick and easy system management and data monitoring.
- Versatile I/O Interfaces: Includes analog inputs, digital inputs, relay outputs, and serial ports for simplified deployment.
- Wide Application Scope: Ideally suited for smart industries, building automation, and other indoor applications.
- Reliable and Durable Construction: IP30-rated metal case for enhanced protection and longevity in industrial settings.
The UC11 series represents a pivotal advancement in IoT controllers, offering a blend of functionality, reliability, and ease of use, making it an excellent choice for various indoor applications in the modern IoT landscape.
Product Downloads
| Wireless Transmission | |
|---|---|
| Technology | LoRaWAN®, LoRa D2D |
| Antenna Connector | 1 × 50 Ω SMA Connector (Center PIN: SMA Female) |
| Frequency | EU868 |
| Tx Power | 16dBm (868 MHz) |
| Sensitivity | -137dBm @300bps |
| Work Mode | OTAA/ABP Class C |
| Data Interfaces | |

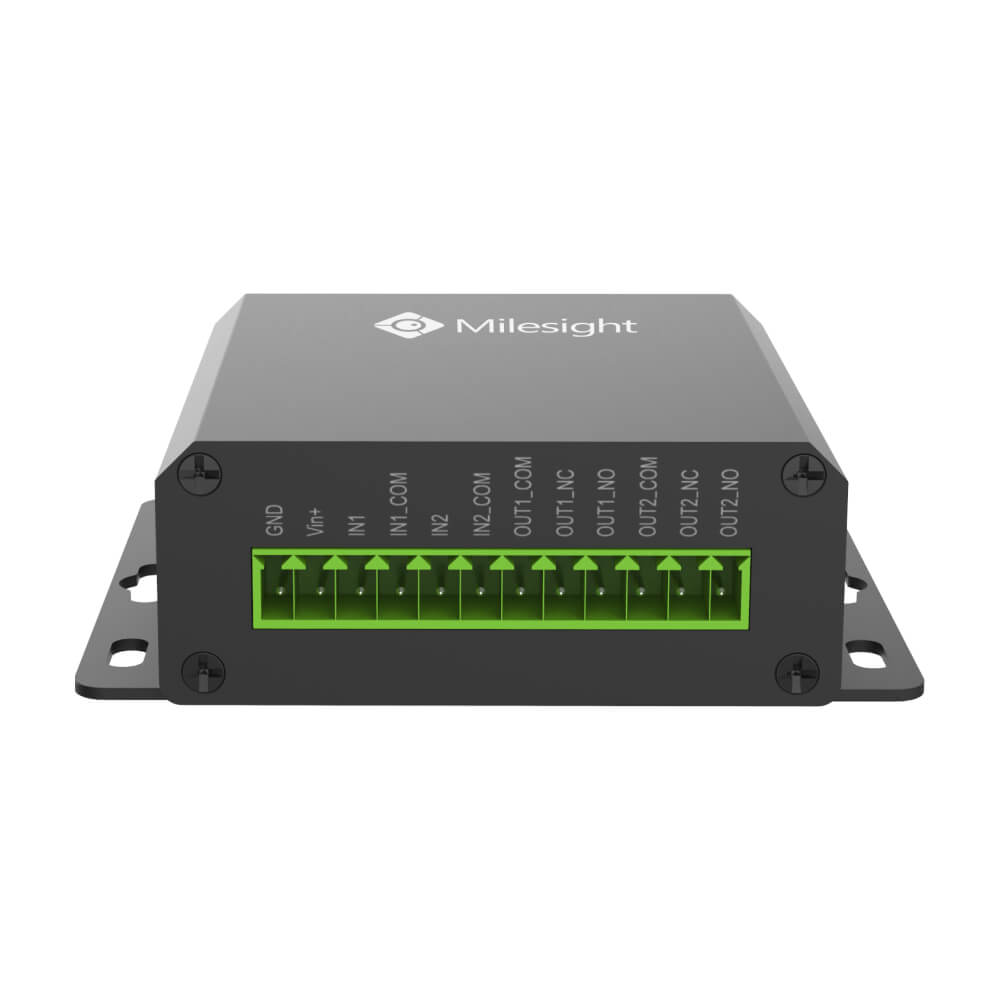

| Interface Type | 3.5 mm Terminal Block |
| IO | |
| Digital Input | 1 x Opto-isolated Digital Inputs, 3-24VDC (pulse counter support) |
| Digital Output | 1 x SPDT Relay Contact Rating: 3A@DC Max: 30 V or AC Max: 250 V |
| Serial Port | |
| Ports | 1 x RS232 1 x RS485 |
| Baud Rate | 4800~115200bps(RS232)/1200 115200 bps(RS485) |
| Protocol | Transparent (RS232), Modbus RTU (RS485) |
| Others | |
| Ports | 2 × PT100 RTD Input |
| Input Connections | 2, 3-wire |
| Resolution | 12 bit |
| Range | -200°C ~ 800°C |
| Others | |
| Configuration Port | 1 × Micro USB |

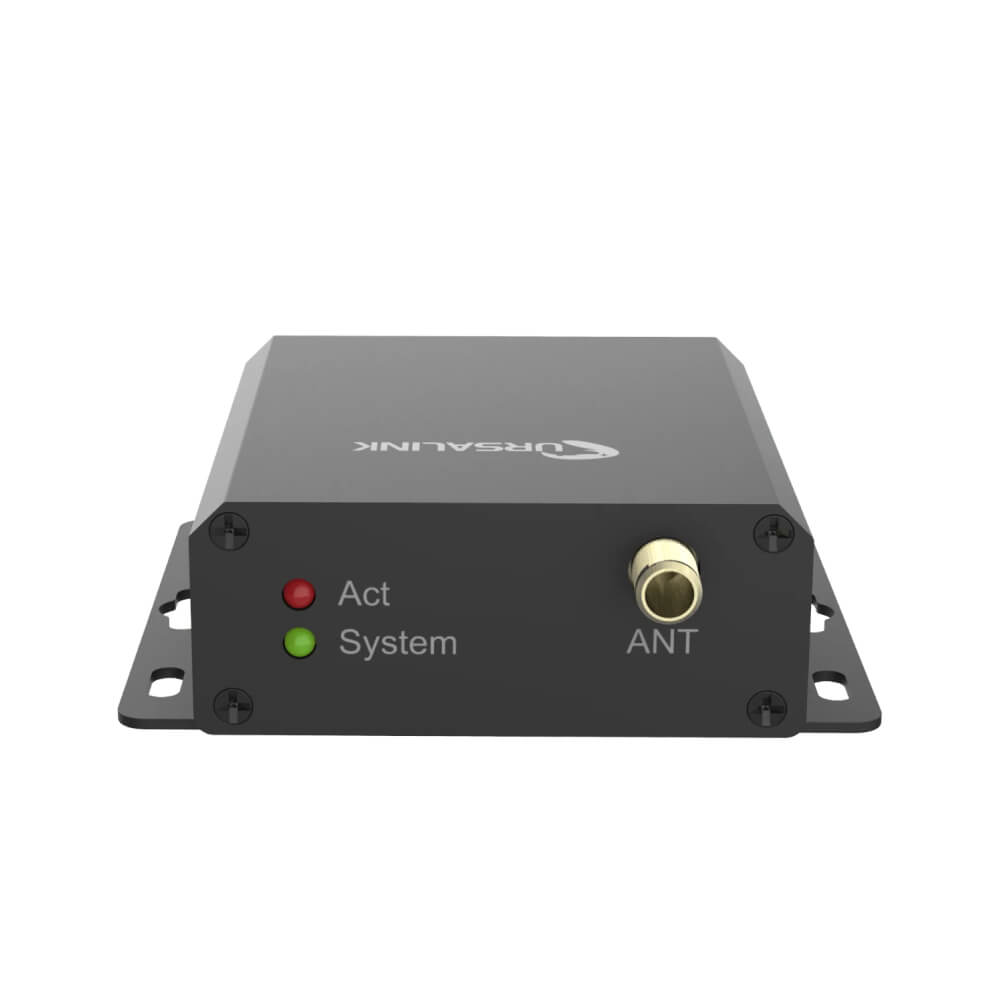

| LED Indicators | 1 × System, 1 × ACT |
| Built-in | Watchdog, Timer |
| Physical Characteristics | |
| Power Connector | 3.5 mm Terminal Block |
| Power Supply | 5-24 VDC |
| Power Consumption | ≤0.24W |
| Ingress Protection | IP30 |
| Operating Temperature | 40°C to +70°C (-40℉ to +158℉) |
| Relative Humidity | 0% ~ 95% (non-condensing) at 25°C/77℉ |
| Dimensions | 79 × 60 × 24 mm (3.11 × 2.36 × 0.94 in) |
| Installation | Desktop, Wall mounting |
| Approvals | |
| Regulatory | CE, FCC, RoHS |
