Milesight  |  SKU: UC512-DI-868M

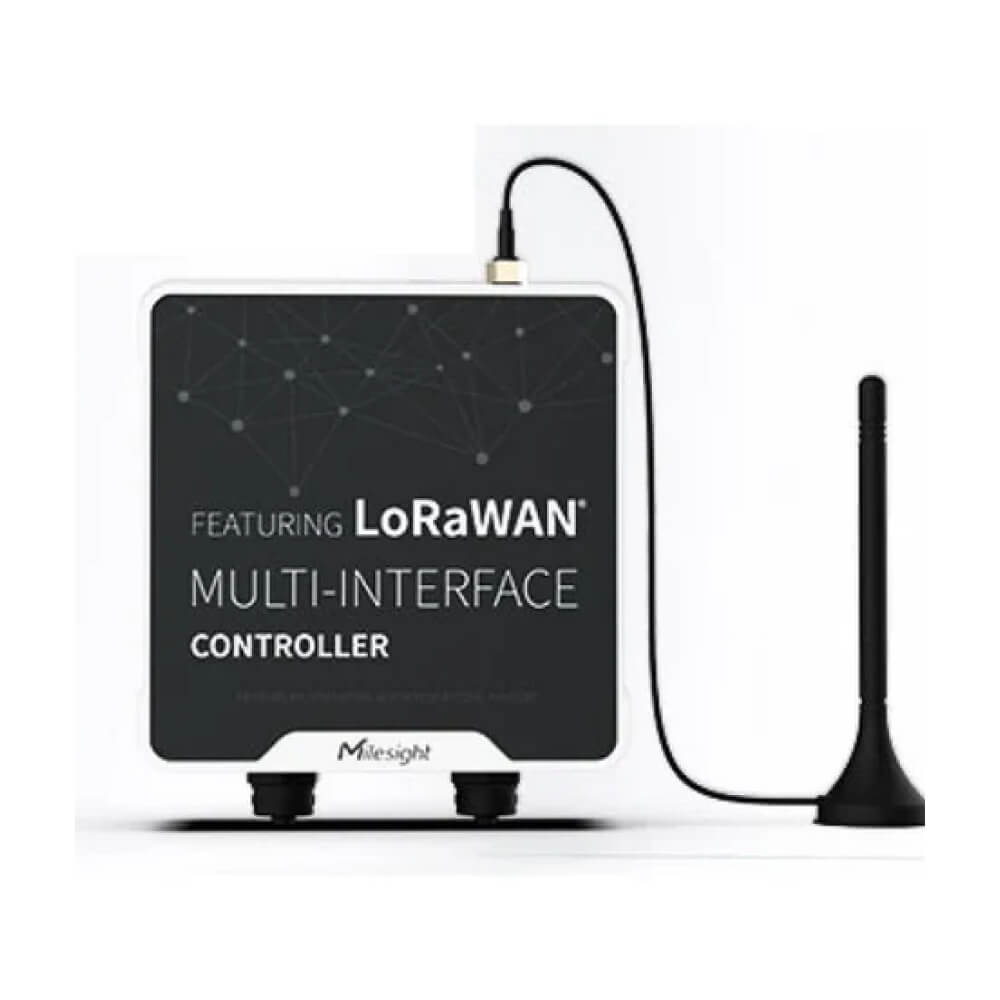

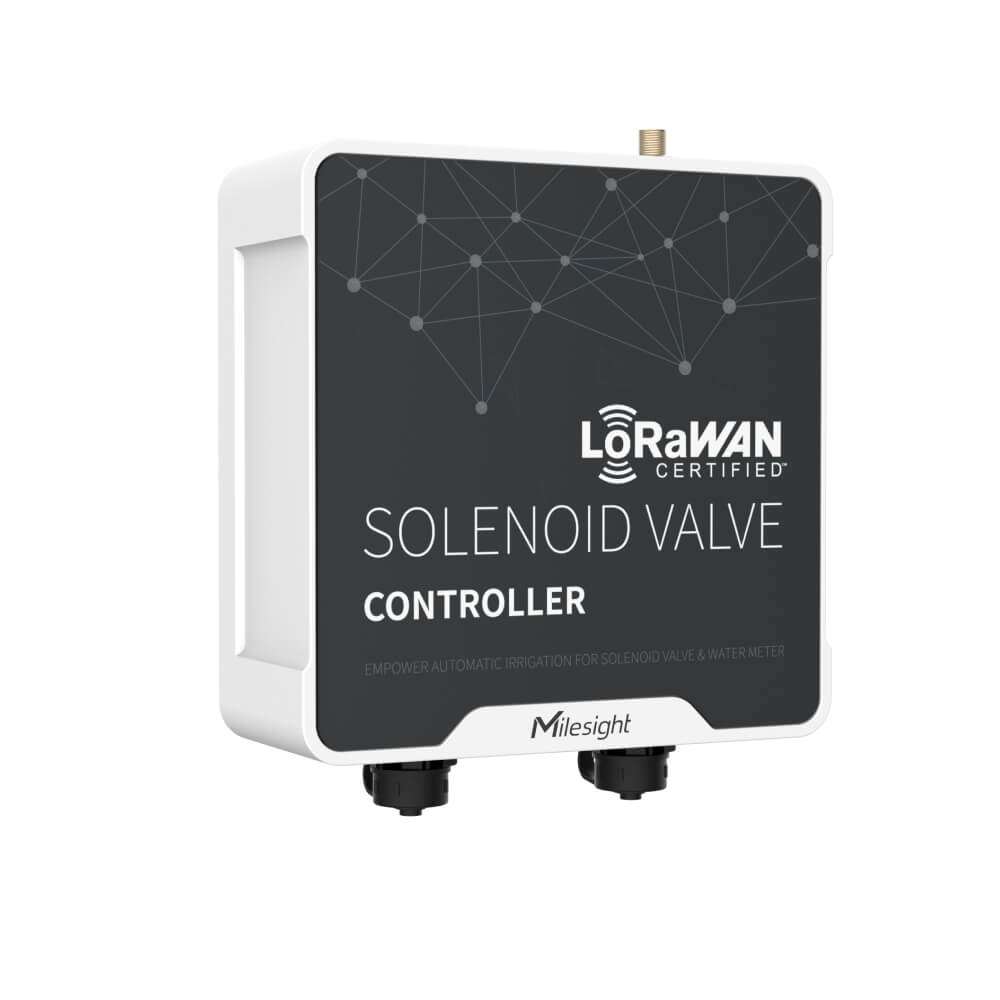

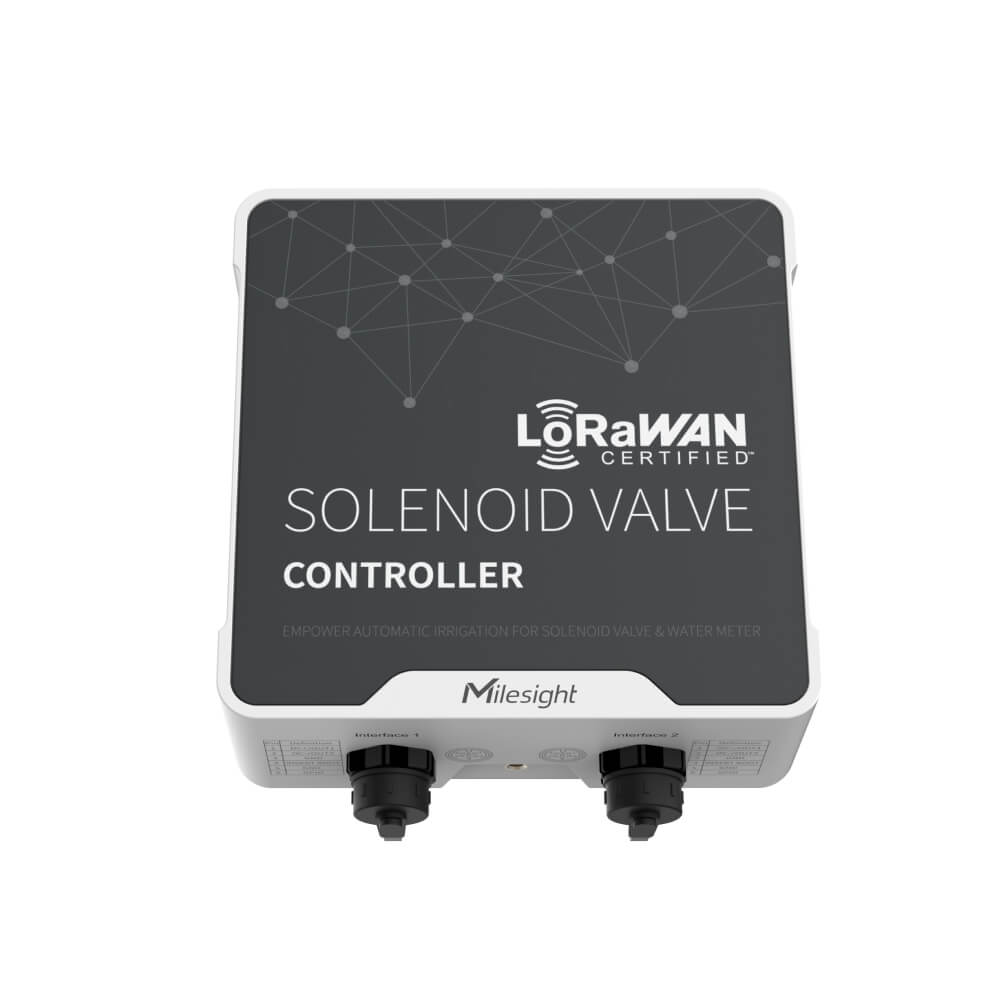

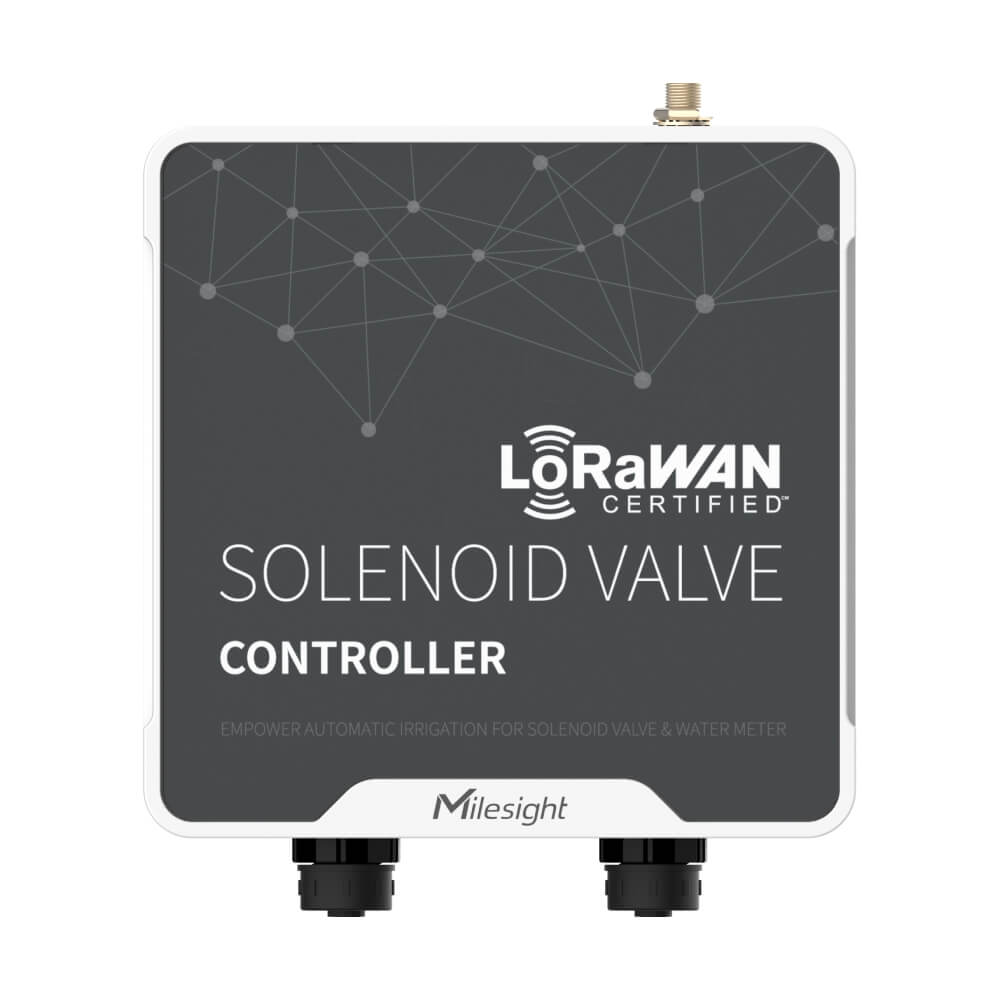

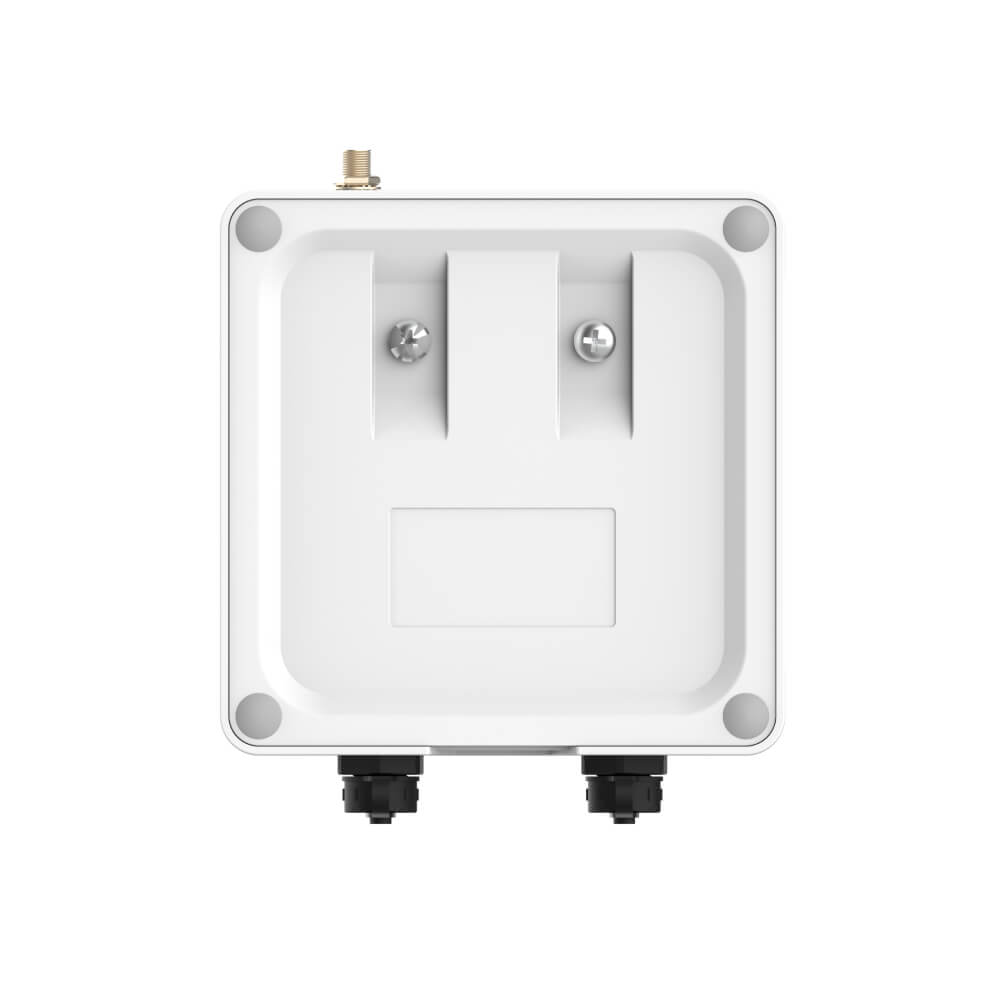

Milesight UC512 | Battery-Powered LoRaWAN Solenoid Valve Controller

€146,00
Shipping calculated at checkout.

A professional high-capacity battery RTU designed for precise remote irrigation and DC latching solenoid valve management.

  • • Dual Valve Support: Controls up to 2 DC latching solenoids (5/9/12V).
  • • High Capacity: 19,000 mAh replaceable battery for up to 10 years of life.

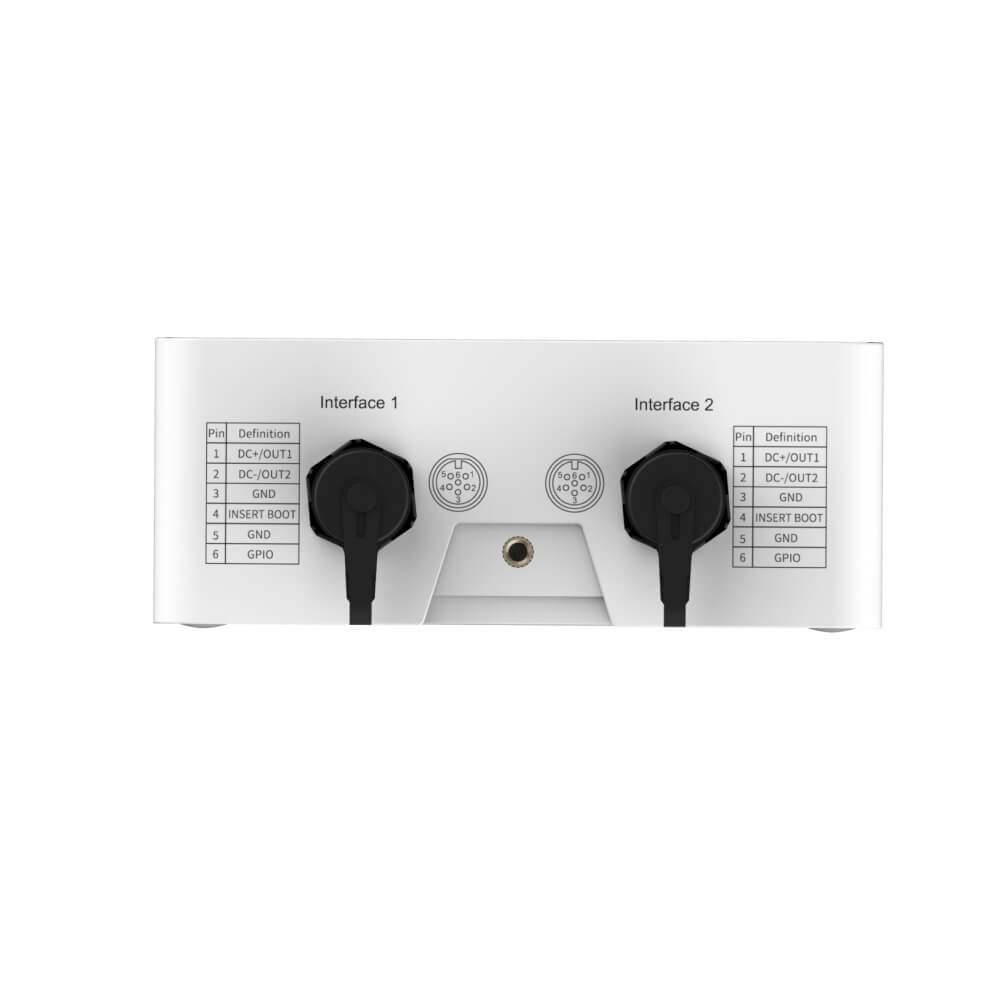

  • • Industrial Build: IP67-rated enclosure with rugged M12 connectors.

VAT Free Transaction Option

Our store displays prices excluding VAT by default. For EU-based businesses with a valid VAT number, intra-community VAT exemptions apply. You can validate your VAT number during the checkout process to ensure correct billing.

Secure Payment & Warranty
  • Encrypted Checkout: Shop with confidence via Shopify Payments or PayPal Express for fully secure, PCI-compliant transactions.
  • B2B Flexible Billing: For large-scale infrastructure orders, we offer Direct Bank Transfer (SEPA/SWIFT) options. Please contact our team for a pro-forma invoice.
  • Quality Guaranteed: All professional IoT hardware is backed by a 2-year manufacturer warranty and technical support from our engineering experts at shopioT.

Delivery and Shipping

Reliable, tracked, and fast global shipping via FedEx Express. Your professional IoT hardware is dispatched from our EU-based warehouse within 2 business days.

Input your company name and a valid EU VAT number at the checkout page for a VAT Free Transaction.

Description

The Milesight UC512 is a carrier-grade LoRaWAN Solenoid Valve Controller engineered for large-scale agricultural and landscaping projects where maintenance-free, long-term operation is critical. Powered by a massive 19,000 mAh lithium battery, the UC512 offers a "set-and-forget" solution for remote irrigation management. By eliminating the need for complex trenching and wired power, this IP67-rated controller allows for the rapid deployment of smart water systems across vast fields, greenhouses, and urban green spaces.

Professional Irrigation Intelligence

Extended Field Life Equipped with a high-capacity replaceable battery, providing up to a decade of reliable service, significantly reducing operational maintenance costs.
Dual Input Monitoring Features 2 GPIO interfaces that support pulse counting and dry contacts, allowing for simultaneous water flow tracking and valve status verification.

Smart Water Management Scenarios

• Large Scale Farming: Remotely trigger irrigation cycles across hundreds of hectares without the infrastructure costs of traditional controllers.
• Utility Pipeline Control: Use as a remote-controlled emergency shut-off valve for non-potable water systems in industrial zones.
• Golf & Turf Care: Precisely time watering based on soil moisture data to maintain high-quality turf while conserving water resources.

What is in the Box?

• 1 x Milesight UC512 Controller (Battery Version)
• 1 x 19,000 mAh Li-SOCl2 Battery (Pre-installed)
• 1 x M12 Connector & Cable Kit
• 1 x Quick Start Guide

Product Certifications

CE FCC IP67 RoHS

Specifications
  • Primary Communication Protocol
    LoRaWAN
  • Frequency/Region
    EU868
  • Antenna Type
    Internal, External
  • Configuration Method
    NFC, USB
  • Activation Method
    OTAA, ABP
  • Environment Rating
    Outdoor
  • IP Rating
    IP68
  • Operating Temperature
    -30°C to 70°C
  • Enclosure Material
    PC (Polycarbonate), ABS Plastic
  • Battery Type
    Li-SOCl2
  • Battery Capacity
    27000mAh
  • Power Consumption
    Class A: >10 years, Class B: Around 6.2 years (SF7), Around 5.8 years (SF10)
  • Measurement Technology
    • Carrier-Grade Connectivity: Optimized for high-performance LoRaWAN® or Cellular backhaul, ensuring reliable data transmission across expansive industrial and agricultural sites.
    • Industrial Edge Intelligence: Built-in support for autonomous local logic and rule engines, allowing devices to execute mission-critical actions even during network outages.
    • Advanced Power Management: Features high-capacity industrial lithium batteries or solar-assisted rechargeable systems for multi-year, maintenance-free operation in remote areas.
    • Ruggedized Engineering: Housed in professional-grade IP30 or IP67 enclosures to ensure stable operation under extreme temperatures and high-moisture environments.
    • Simplified Field Commissioning: Utilizes NFC technology and mobile configuration tools for rapid, tool-free deployment and secure parameter management.
  • Measurement Range
    • Operational Spectrum: Precision-tuned for the EU868 MHz ISM band or Global 4G LTE bands, supporting long-range links up to 15km (Line-of-Sight).
    • Sensing Limits: Wide-band support for diverse industrial interfaces including 4-20mA, 0-10V, RS485/232, and specialized PT100 RTD inputs.
    • Thermal Tolerance: Extended operating range from -40°C to +70°C, suitable for unconditioned industrial or outdoor placements.
  • Measurement Accuracy
    • Signal Fidelity: High-resolution 12-bit ADC architecture ensures accurate digital representation of analog environmental and industrial signals.
    • Link Reliability: Industry-leading sensitivity (down to -137dBm) to maintain data integrity in high-interference or deep-indoor environments.
    • Standard Compliance: Certified to international CE, FCC, and LoRaWAN® regional parameters for guaranteed interoperability and safety.
  • Measurement Resolution
    • Data Granularity: Supports high-resolution logging for temperature (0.1°C), humidity (0.5% RH), and pulse counting for precision metering and flow tracking.
    • Reporting Flexibility: Fully configurable transmission intervals from 1 to 1080 minutes, allowing for a balance between real-time monitoring and maximum battery longevity.
    • Interface Versatility: Direct support for Modbus RTU register mapping and transparent serial bridges with user-defined baud rates (1200 to 115200 bps).
  • Interfaces (I/O)
    Solenoid Valve Output, GPIO
  • Monitoring Parameters
    Valve Opening Percentage (%), Pulse Count

Document Library

UC512 Datasheet

UC512 User Manual
