Milesight  |  SKU: WS201-868M
Sold out
26% off

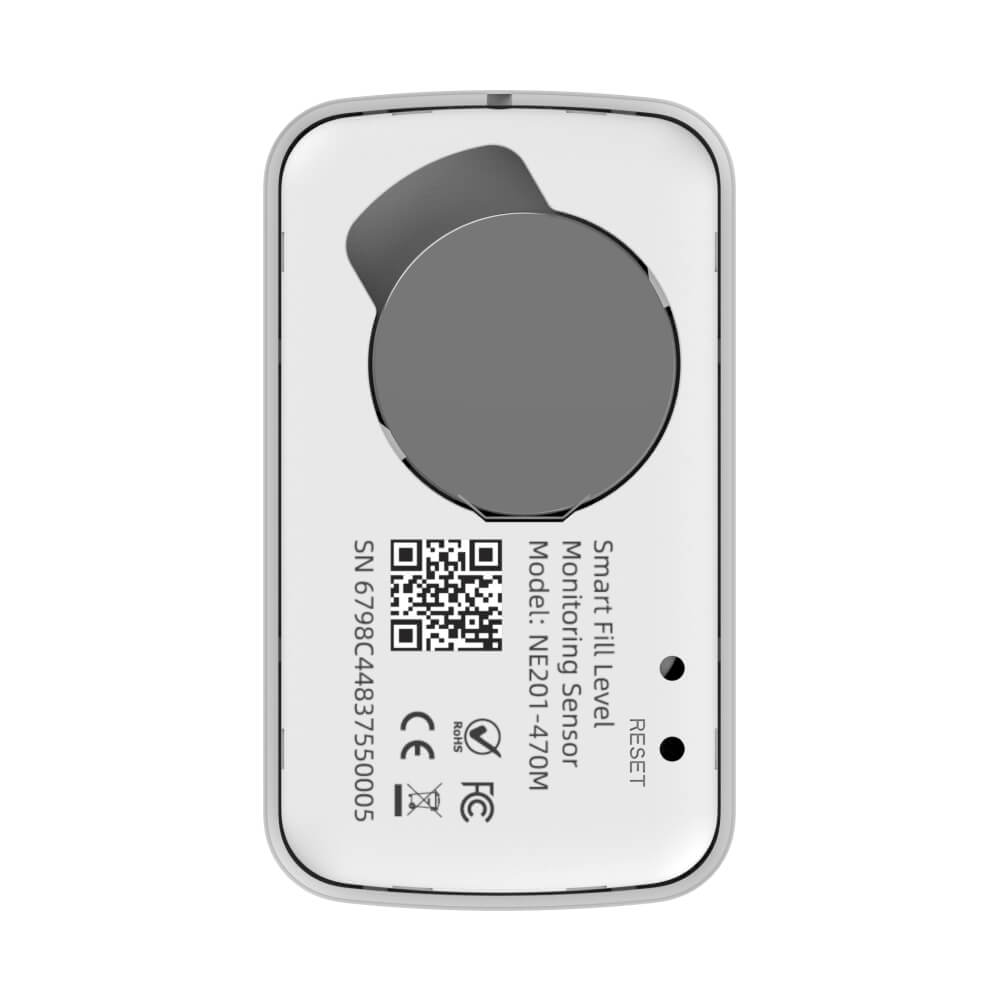

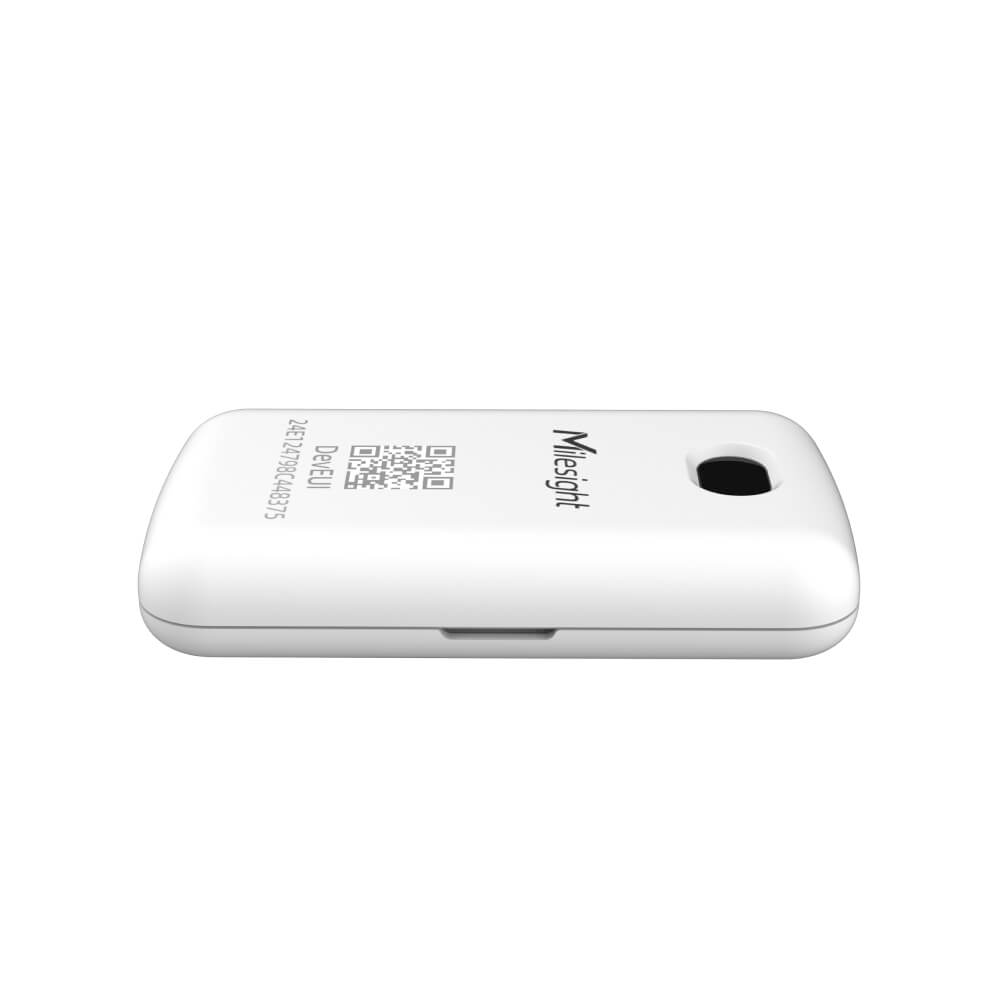

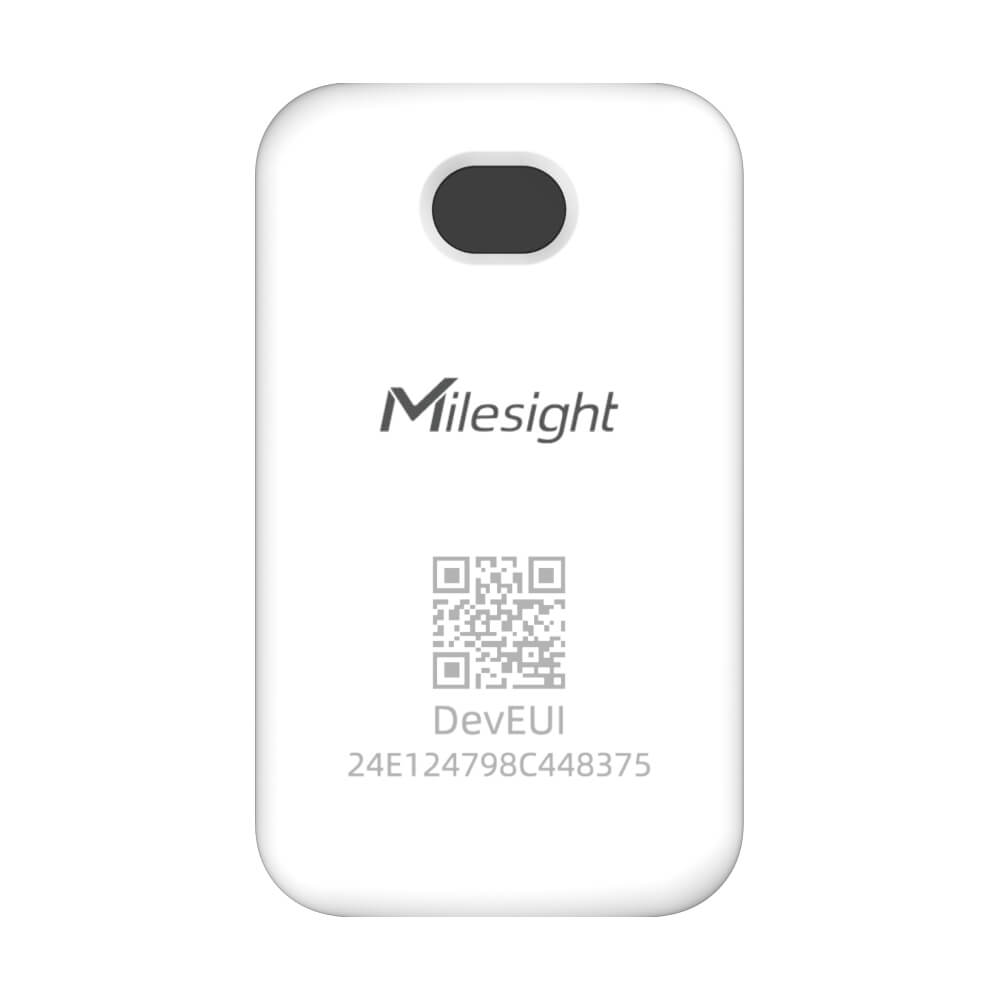

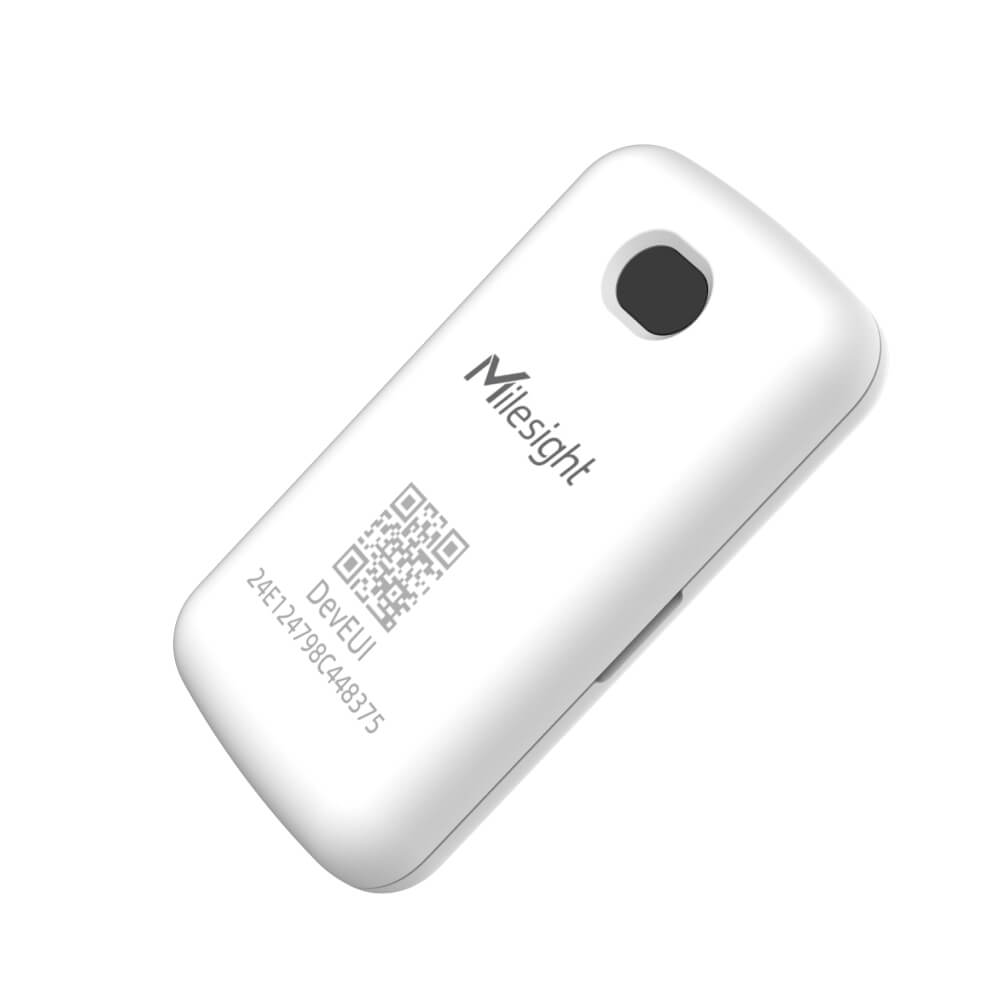

Milesight WS201 | LoRaWAN Smart Fill-Level Monitoring Sensor

€54,00 €73,00
Shipping calculated at checkout.

A professional high-precision ToF sensor designed for close-range fill-level monitoring in tissue boxes and small containers.

  • • ToF Precision: Accurate laser sensing from 1cm up to 55cm.
  • • Compact Design: Ultra-slim profile for discreet internal mounting.
  • • Smart Power: Standby mode ensures over 2 years of battery life.

VAT Free Transaction Option

Our store displays prices excluding VAT by default. For EU-based businesses with a valid VAT number, intra-community VAT exemptions apply. You can validate your VAT number during the checkout process to ensure correct billing.

Secure Payment & Warranty
  • Encrypted Checkout: Shop with confidence via Shopify Payments or PayPal Express for fully secure, PCI-compliant transactions.
  • B2B Flexible Billing: For large-scale infrastructure orders, we offer Direct Bank Transfer (SEPA/SWIFT) options. Please contact our team for a pro-forma invoice.
  • Quality Guaranteed: All professional IoT hardware is backed by a 2-year manufacturer warranty and technical support from our engineering experts at shopioT.

Delivery and Shipping

Reliable, tracked, and fast global shipping via FedEx Express. Your professional IoT hardware is dispatched from our EU-based warehouse within 2 business days.

Input your company name and a valid EU VAT number at the checkout page for a VAT Free Transaction.

Description

The Milesight WS201 is an innovative LoRaWAN Smart Fill-Level Sensor specifically engineered for close-range sensing applications. Utilizing advanced Time-of-Flight (ToF) laser technology, it provides millimetric accuracy in monitoring the remaining contents of small containers, most notably tissue boxes in high-traffic facilities. Its ultra-compact form factor allows it to be mounted inside dispensers without interfering with daily use. By digitizing supply levels, the WS201 enables facilities managers to shift from scheduled refills to data-driven, "on-demand" janitorial services, significantly reducing labor costs and improving user satisfaction in smart restrooms and hospitality environments.

Laser-Precision Supply Management

Optimized ToF Accuracy Unlike infrared sensors, ToF technology measures the actual travel time of light, ensuring precise readings regardless of the color or material of the contents.
Intelligent Reporting Supports percentage-based remaining amount reporting and features configurable alarm thresholds to notify staff only when refills are actually needed.

Smart Facility Scenarios

• Smart Restrooms: Real-time fill-level tracking for tissue and paper towel dispensers in airports and malls.
• Hotel Hospitality: Monitor amenity stock levels in guest rooms to optimize housekeeping workflows.
• Inventory Control: Discreetly monitor small parts bins or stationary supplies in corporate office environments.

What is in the Box?

• 1 x Milesight WS201 Smart Fill Level Sensor
• 1 x 590mAh CR2450 Lithium Battery
• 1 x 3M Double-Sided Adhesive Tape
• 1 x Quick Start Guide

Product Certifications

CE FCC IP30 RoHS

Specifications
  • Primary Communication Protocol
    LoRaWAN
  • Frequency/Region
    EU868
  • Antenna Type
    Internal
  • Configuration Method
    NFC
  • Activation Method
    OTAA, ABP
  • Environment Rating
    Indoor
  • IP Rating
    IP30
  • Operating Temperature
    -10°C to 60°C
  • Enclosure Material
    PC (Polycarbonate), ABS Plastic
  • Battery Type
    CR2450
  • Battery Capacity
    590mAh
  • Power Consumption
    Up to 3.2 Years (SF7)
  • Measurement Technology
    • ToF (Time-of-Flight): High-focusing laser technology for precise distance measurement regardless of object color or material.
    • Smart Level Mapping: Converts measured distance into a remaining percentage (%) based on pre-set container depths.
    • Damp-Proof Design: Internal coating ensures stability and reliability in humid bathroom or restroom environments.
    • Adaptive Structure: Optimized for stable signal transmission even when installed inside metal-heavy dispensers.
  • Measurement Range
    • Detection Range: 1 cm to 55 cm.
    • Operating Humidity: 0% to 95% RH (non-condensing).
    • Field of View: High-focusing narrow beam for accurate sensing in confined spaces.
  • Measurement Accuracy
    • Precision Detection: ±10mm at 1.0cm to 15.0cm range.
    • Extended Accuracy: ±22mm at 15.0cm to 35.0cm; ±33mm at 35.0cm to 55.0cm.
    • Threshold Alarms: Configurable "lack of paper" alerts for immediate refill notification.
  • Measurement Resolution
    • Level Resolution: 1% (percentage of container capacity).
    • Distance Resolution: 1 mm.
    • Visual Feedback: Internal LED indicator for configuration and alarm status.
  • Monitoring Parameters
    Level (%)

Document Library

WS201 Datasheet

WS201 User Manual
