Milesight  |  SKU: WS502-868M PN: 3W-W11-EU
9% off

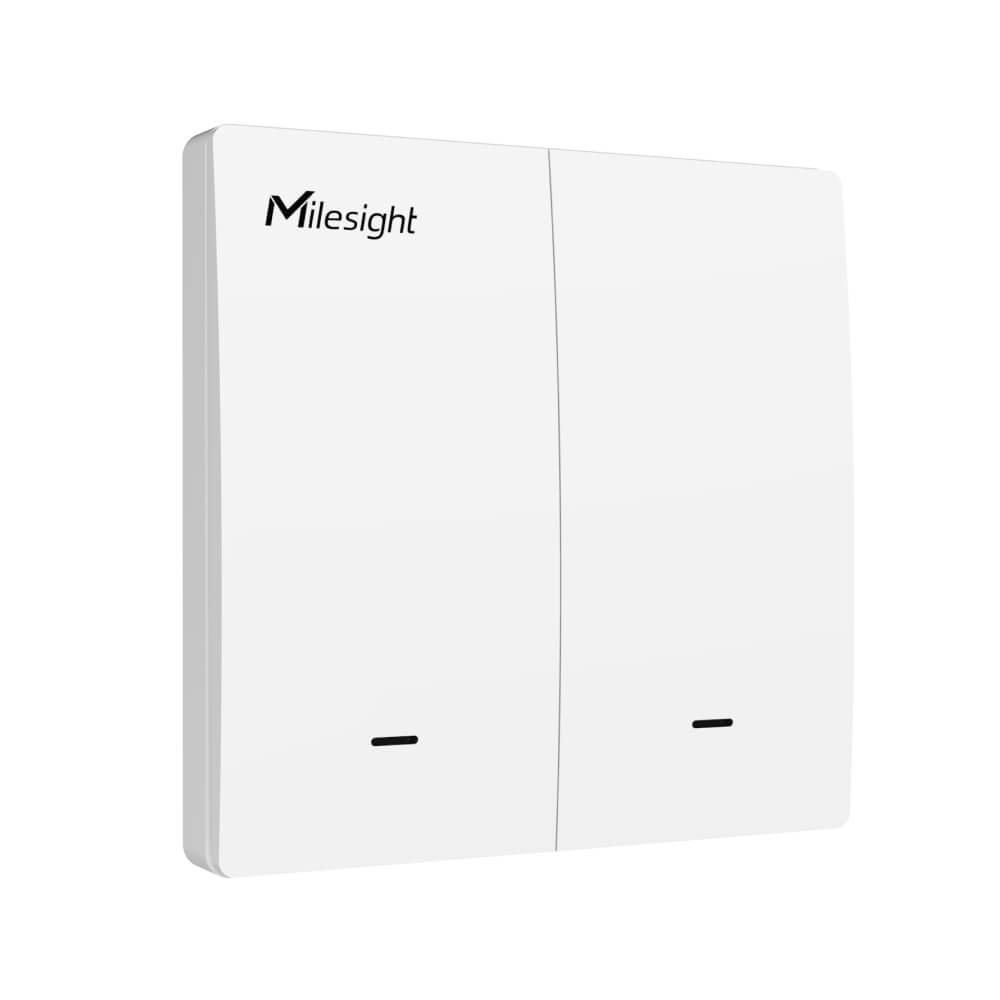

Milesight WS502 | Dual-Button LoRaWAN Smart Wall Switch (EU Type)

€53,00 €58,00
Shipping calculated at checkout.

A professional 2-gang LoRaWAN smart switch providing independent control of two electrical circuits from a single EU wall-mount unit.

  • • Dual Control: Two independent 10A relays for 2-gang switching.
  • • D2D Protocol: Direct device-to-device control without gateways.
  • • Power Monitoring: Tracks voltage, current, and total consumption.

VAT Free Transaction Option

Our store displays prices excluding VAT by default. For EU-based businesses with a valid VAT number, intra-community VAT exemptions apply. You can validate your VAT number during the checkout process to ensure correct billing.

Secure Payment & Warranty
  • Encrypted Checkout: Shop with confidence via Shopify Payments or PayPal Express for fully secure, PCI-compliant transactions.
  • B2B Flexible Billing: For large-scale infrastructure orders, we offer Direct Bank Transfer (SEPA/SWIFT) options. Please contact our team for a pro-forma invoice.
  • Quality Guaranteed: All professional IoT hardware is backed by a 2-year manufacturer warranty and technical support from our engineering experts at shopioT.

Delivery and Shipping

Reliable, tracked, and fast global shipping via FedEx Express. Your professional IoT hardware is dispatched from our EU-based warehouse within 2 business days.

Input your company name and a valid EU VAT number at the checkout page for a VAT Free Transaction.

Description

The Milesight WS502 is a high-performance 2-Gang LoRaWAN Smart Wall Switch designed to modernize facility management by digitizing dual-circuit lighting and appliances. This EU-standard (86 Type) switch allows for the independent manual and remote control of two separate loads, making it an ideal choice for rooms with multiple lighting zones. Integrated with advanced energy monitoring and overcurrent protection, the WS502 ensures that your smart building infrastructure is both intelligent and electrically secure.

Advanced Control & Energy Intelligence

Milesight D2D Dual-Mode Operates as a D2D Controller to trigger other nodes or an Agent to receive sensor commands in under 1 second, enabling gateway-free local automation.
Energy & Overload Protection Real-time tracking of consumption (kWh) and electrical parameters with configurable overcurrent thresholds to safeguard your connected equipment.

Professional Smart Building Scenarios

• Zone-Based Control: Independently manage main lighting and decorative spotlights from a single wall point.
• Automated Savings: Pair with motion sensors via D2D to ensure lighting is only active in occupied zones, even without a central network.
• Bulk Management: Use Multicast features to control all lights in an auditorium or office floor with one LoRaWAN command.

What is in the Box?

• 1 x Milesight WS502 Smart Wall Switch (EU)
• 1 x Mounting Screw Kit
• 1 x Quick Start Guide

Product Certifications

CE FCC RoHS

Specifications
  • Primary Communication Protocol
    LoRaWAN, Milesight D2D
  • Frequency/Region
    EU868
  • Antenna Type
    Internal
  • Configuration Method
    NFC, Downlink
  • Activation Method
    OTAA, ABP
  • Environment Rating
    Indoor
  • IP Rating
    IP20
  • Operating Temperature
    -20°C to 60°C
  • Enclosure Material
    PC (Polycarbonate)
  • Power Consumption
    Max 5W
  • Measurement Technology
    • Dual-Gang Control: Independent management of two separate lighting or electrical circuits from a single wall point.
    • Milesight D2D: Supports Milesight D2D protocol as both a Controller and Agent for ultra-low latency (<1s) local automation without a gateway.
    • Active Power Monitoring: Integrated sensors measure real-time Voltage (V), Current (mA), Power (W), and total Energy (kWh) for each circuit.
    • Programmable Logic: Supports delay-off tasks and multicast bulk control for large-scale facility management.
  • Measurement Range
    • Input Voltage: 100V to 250V AC, 50~60 Hz.
    • Maximum Current: 10A Resistive / 5A Inductive per gang (Max 10A total).
    • Rated Load: Maximum 1000 W per gang (Resistive).
    • Transmission Range: Up to 15 km (Line of Sight) or 2 km in urban environments.
  • Measurement Accuracy
    • Electrical Accuracy: Typical ±3%, Maximum ±5% (Utility-grade ±1% customizable).
    • Hardware Safety: Integrated overcurrent protection and high-quality flame-retardant PC (UL94 V0) housing.
    • Data Continuity: Local storage for 1,000 sets of data with retransmission to prevent loss during network outages.
  • Measurement Resolution
    • Voltage Resolution: 0.1V.
    • Current Resolution: 1mA.
    • Energy Resolution: 1Wh (0.001 kWh).
    • Switch Status: Real-time binary reporting (On/Off) for both Gang 1 and Gang 2.
  • Monitoring Parameters
    Voltage (V), Current (A), Power Factor, Active Power (W), Energy (kWh), Relay Status

Document Library

WS502 Datasheet

WS502 User Manual
