Milesight  |  SKU: WT211-868M
Sold out

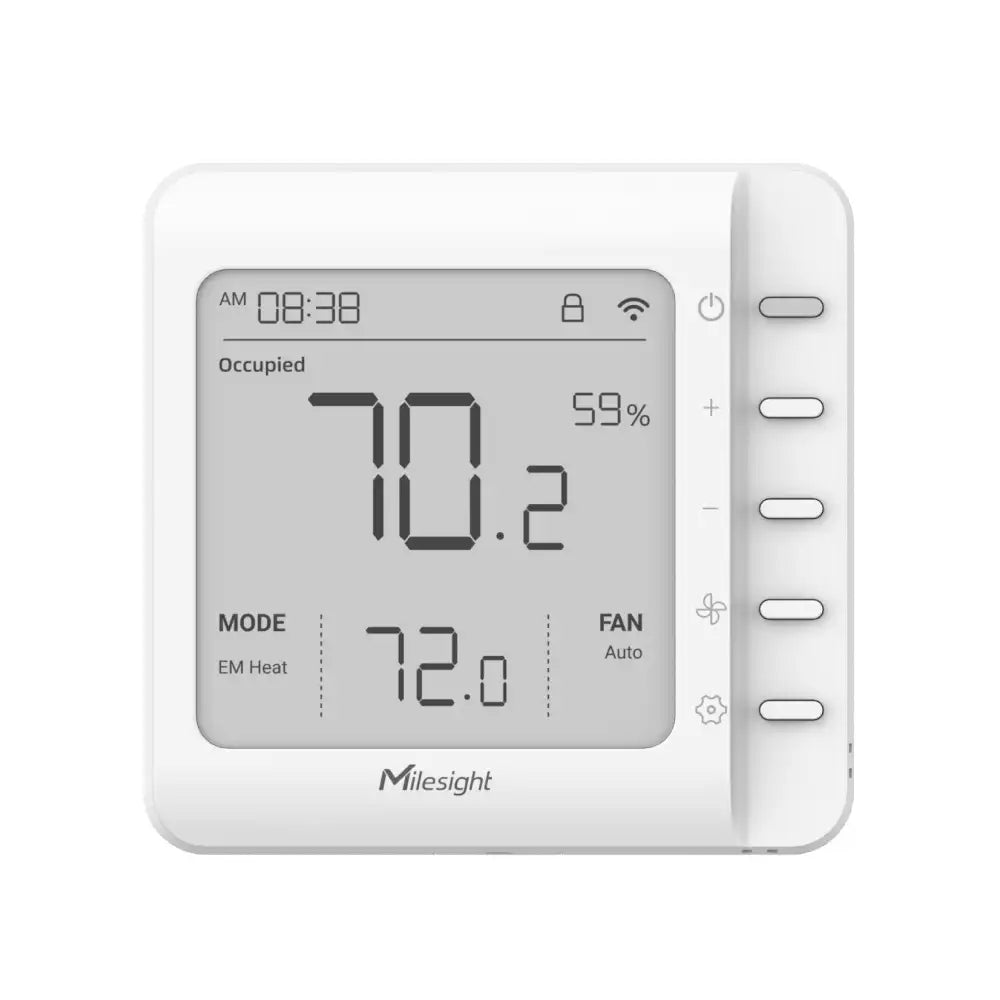

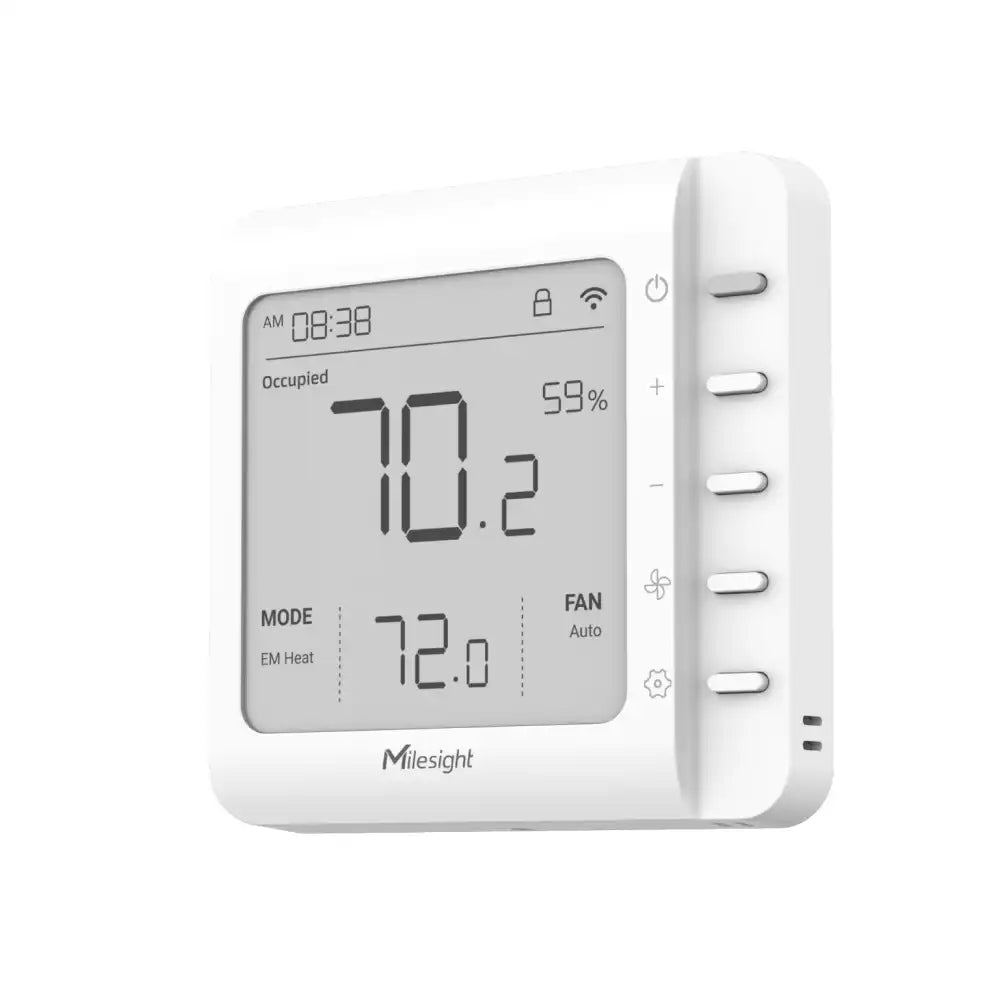

Milesight WT211 | LoRaWAN Smart HVAC Thermostat with LCD (24VAC)

Price incl. 19% VAT
€170,00
Price excl. VAT
€142,86
Shipping calculated at checkout. Shipping policy

Out of stock right now. We can order it in for you, or pick an in-stock alternative.

See all HVAC Control · Ask about lead time

The Milesight WT211 is a LoRaWAN smart thermostat that controls most 24VAC HVAC systems with a clear LCD display.

  • Wide HVAC support: heat pumps, AC, furnaces, boilers and PTAC on 24VAC.
  • 4.2-inch LCD: shows room temperature, humidity and status at a glance.
  • Smart control: schedules, LoRaWAN, Milesight D2D and BACnet.

VAT & Business Purchases

Prices include VAT at the rate of your EU delivery country, so the price shown is the price you pay. EU businesses with a valid VAT number can buy VAT-free: enter your company name and VAT number at checkout and VAT is removed under the intra-community reverse-charge rules. Orders delivered within Cyprus always include Cyprus VAT.

Secure Payment & Warranty
  • Encrypted Checkout: Shop with confidence via Shopify Payments or PayPal Express for fully secure, PCI-compliant transactions.
  • B2B Flexible Billing: For large-scale infrastructure orders, we offer Direct Bank Transfer (SEPA/SWIFT) options. Please contact our team for a pro-forma invoice.
  • Warranty & Support: Consumer purchases are covered by the 2-year legal guarantee of conformity, and manufacturer warranty terms apply per brand. Our engineering team at shopioT provides technical support.

Delivery and Shipping

Tracked delivery within Cyprus by ACS Courier, and to all EU member states, the United Kingdom and Switzerland by FedEx International Priority. Orders ship from our warehouse in Nicosia, Cyprus, typically within 1–3 business days. Shipping cost is calculated at checkout by destination and parcel weight. See our Shipping Policy for rates and delivery times.

EU business? Enter your company name and a valid EU VAT number at checkout to remove VAT (reverse charge).

Description

The Milesight WT211 is a LoRaWAN smart thermostat and HVAC controller for most 24VAC heating and cooling systems - heat pumps, air conditioners (2H/2C), heat pumps (4H/2C or 3H/2C + 1-stage AUX), boilers, furnaces and PTAC. Its high-current relays (up to 3 A per channel, 5 A total) drive more demanding equipment than the standard WT201.

A 4.2-inch LCD shows room temperature, humidity and status, while a built-in temperature/humidity sensor enables accurate control. With heat/cool/auto and fan modes, 7 working modes and up to 16 schedules each, it offers precise comfort control - and integrates with hotel key-card systems, BACnet (via Milesight gateways), Milesight D2D and the Development Platform.

Key Features

Broad 24VAC HVAC SupportWorks with heat pumps, ACs, furnaces, boilers and PTAC; high-current relays (3 A/channel, 5 A total) for demanding loads.
Clear 4.2-Inch LCDA backlit segment LCD shows room temperature, humidity and system status at a glance.
Flexible Scheduling4 temperature and 3 fan modes, 7 working modes with up to 16 schedules each, plus freeze protection and dehumidify.
Connected ControlLoRaWAN and Milesight D2D, BACnet via Milesight gateways, multicast and FUOTA; integrates with hotel key-card systems.

Typical Applications

•Hotels & hospitality: room-by-room comfort with key-card integration and central management.
•Offices & commercial buildings: scheduled HVAC control for comfort and energy savings.
•BMS integration: bring HVAC zones into BACnet building-management systems via Milesight gateways.

Technical Integration

•HVAC compatibility: Most 24VAC systems: heat pumps, ACs (2H/2C), 4H/2C or 3H/2C + 1 AUX, boilers, furnaces, PTAC
•Relays: 24VAC, typ. 1 A; max 3 A per channel, 5 A total; terminals RC, RH, C, W1, W2/AUX, E, Y1, Y2, G, O/B and more
•Sensing: Built-in temperature (±0.5 °C) and humidity (±3% RH) sensor; external sensor mode
•Control modes: Heat, EM heat, Cool, Auto; fan Auto/On/Circulate; 7 working modes, up to 16 schedules each
•Connectivity: LoRaWAN (EU868, OTAA/ABP Class C) and Milesight D2D; BACnet via Milesight gateways; multicast; FUOTA
•Inputs & display: 1 x DI (dry contact) for key-card/magnet switches; 4.2-inch LCD; 5 buttons; child lock
•Power & build: 24VAC (±15%); < 1.2 W; PC+ABS (UL94 V0) housing; IP30; operating -20 to 60 °C; wall mounting
•Setup help: For HVAC wiring or BACnet integration, contact the shopioT technical team

What's in the Box

1×Smart Thermostat

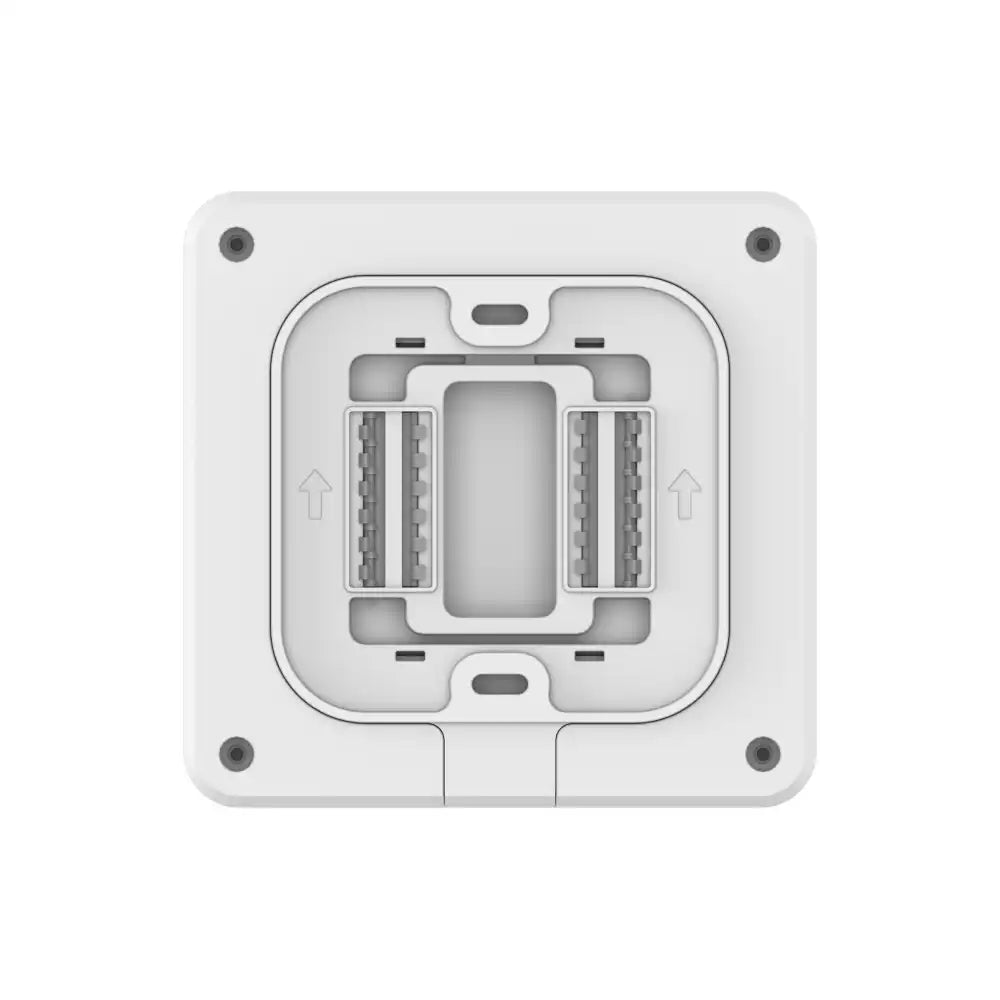

1×Wiring Backplate
1×Decorative Cover Plate
4×Wall Mount Kits
1×Fixing Screw
1×Wire Label Sticker

Frequently Asked Questions

What HVAC systems does it work with?

Most 24VAC systems - heat pumps, air conditioners (2H/2C), 4H/2C or 3H/2C + 1-stage AUX heat, boilers, furnaces and PTAC.

How is the WT211 different from the WT201?

The WT211 has higher-current relays (up to 3 A per channel, 5 A total) for more demanding HVAC equipment.

Can it integrate with a BMS?

Yes - it works with BACnet via Milesight LoRaWAN gateways, and supports Milesight D2D, multicast and the Development Platform.

Is it suitable for hotels?

Yes - it integrates with hotel key-card systems and a DI input for occupancy-based control.

Specifications
  • Primary Communication Protocol
    LoRaWAN, Milesight D2D
  • Frequency/Region
    EU868
  • LoRaWAN Class
    Class C
  • Radio & Range

    TX power: 16 dBm (EU868)

    Sensitivity: -137 dBm

  • Interfaces (I/O)
    Digital Input (Dry Contact), Digital Output (Relay), USB Type-C, Button
  • Configuration Method
    NFC, Downlink
  • Activation Method
    OTAA, ABP
  • Monitoring Parameters
    Temperature, Humidity
  • Measurement Technology

    Temperature / humidity: digital CMOSens (MEMS)

  • Measurement Range

    Temperature: -20°C to +60°C

    Humidity: 0–100% RH

    Temperature setpoint range: 5–35°C

  • Measurement Accuracy

    Temperature: ±0.5°C (0–60°C), ±1°C (-20–0°C)

    Humidity: ±3% RH (40–85% RH), ±5% RH (0–40% and 85–100% RH)

  • Measurement Resolution

    Temperature: 0.1°C (reported), 0.5°C (displayed)

    Humidity: 0.5% RH (reported), 1% RH (displayed)

  • Power Source
    24 V AC
  • Power Input
    24 VAC (±15%)
  • Power Consumption
    < 1.2 W
  • Dimensions
    113 × 110 × 21 mm
  • Weight
    172 g
  • Enclosure Material
    ABS+PC
  • Mounting Options
    Wall Mount
  • IP Rating
    IP30
  • Environment Rating
    Indoor
  • Operating Temperature
    -20°C to +60°C
  • Certifications
    CE, FCC, IC
  • Warranty
    2 Years

Document Library

WT211 Datasheet

WT211 User Manual

Payload Decoder

Firmware & SDK Download
