RAK Wireless  |  SKU: 915282

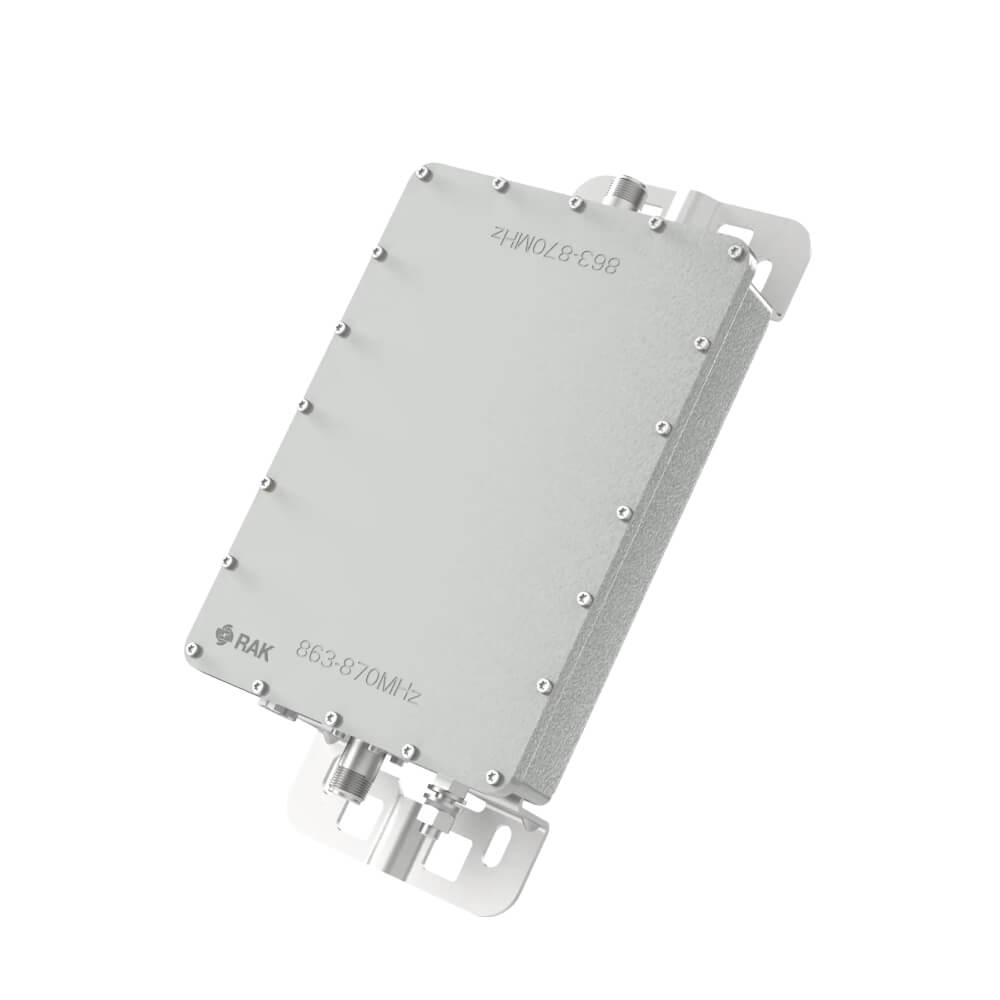

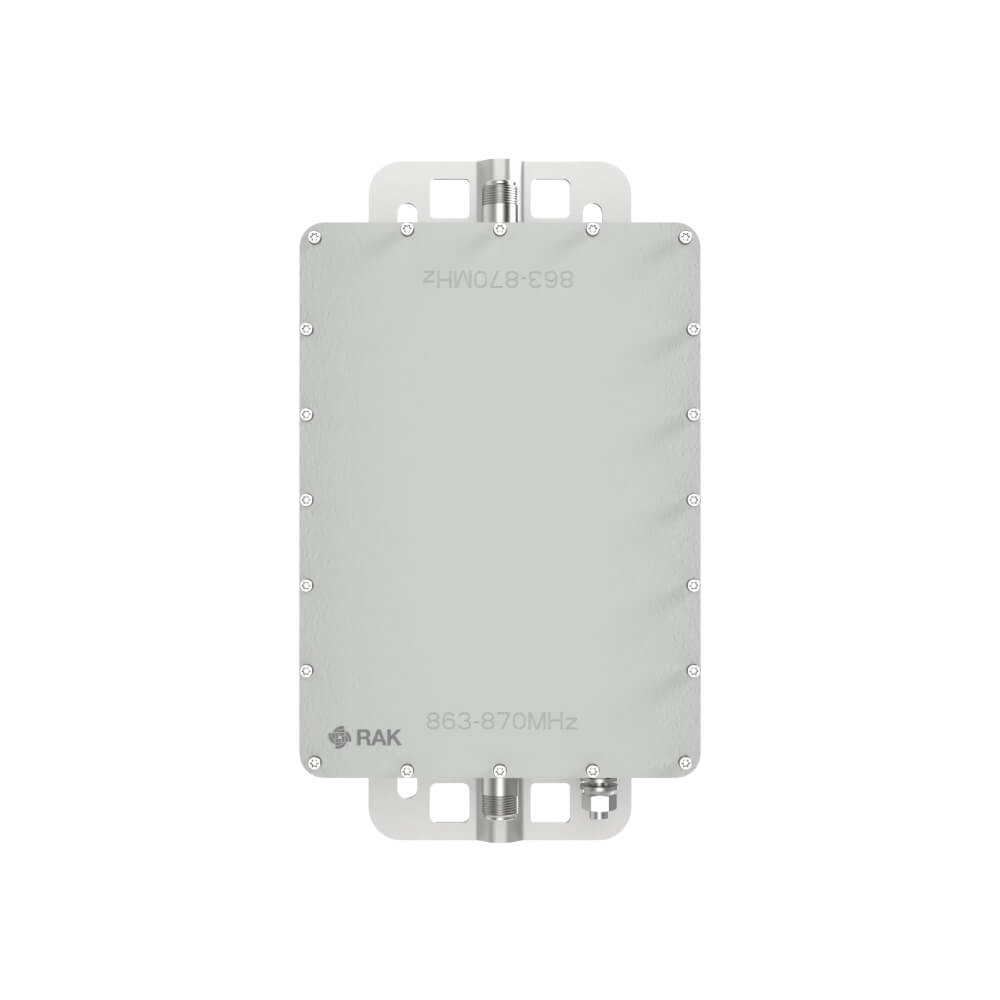

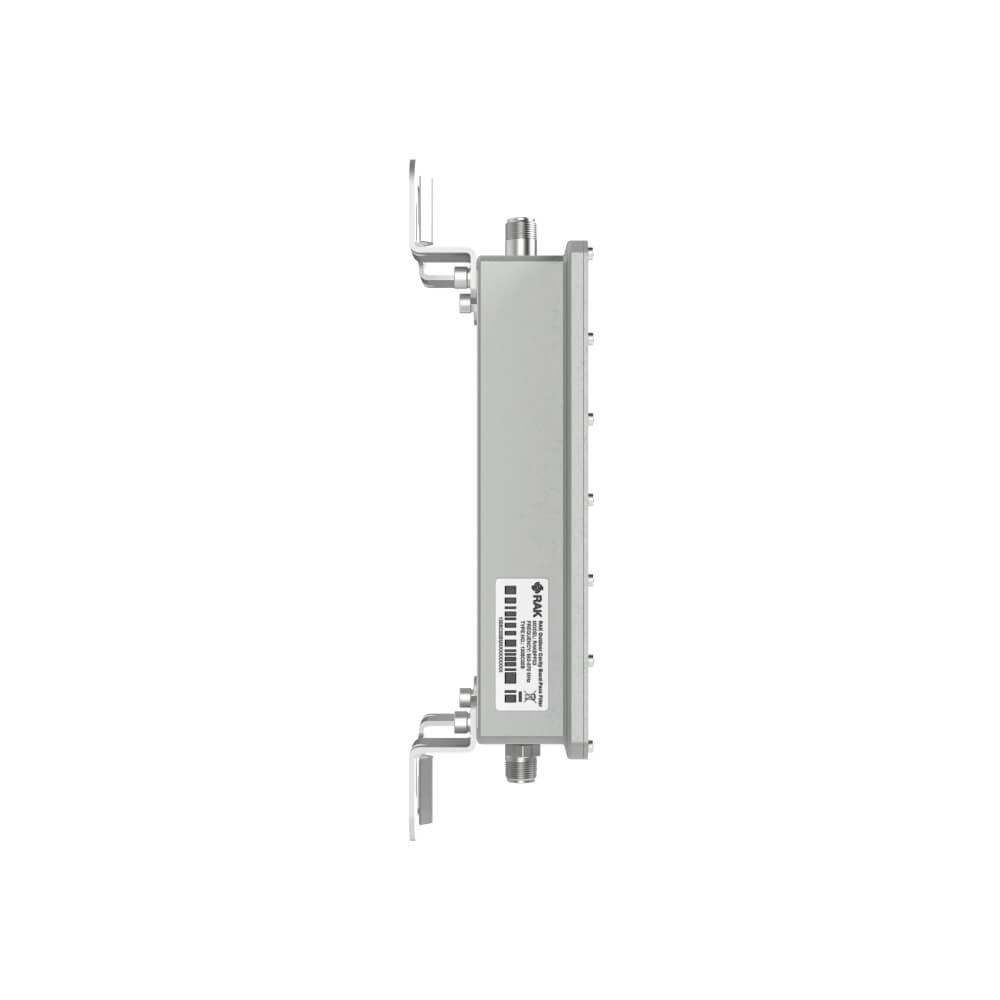

RAKwireless Outdoor Cavity Band-Pass Filter | EU868 LoRaWAN RF Filter, IP67

Price excl. VAT
€276,47
Price incl. 19% VAT
€329,00
Shipping calculated at checkout. Shipping policy

The RAKwireless Outdoor Cavity Band-Pass Filter keeps your EU868 gateway sensitive.

  • Keeps your gateway sensitive: blocks LTE, 5G and radar
  • Clean pass-band: tuned to the EU868 band
  • Built for outdoors: sealed, wide temp range

VAT & Business Purchases

Prices are shown excluding VAT. For EU deliveries, VAT at the rate of your delivery country is added at checkout. EU businesses with a valid VAT number pay no VAT: enter your company name and VAT number at checkout and the order is invoiced under the intra-community reverse-charge rules. Orders delivered within Cyprus always include Cyprus VAT.

Secure Payment & Warranty
  • Encrypted Checkout: Shop with confidence via Shopify Payments or PayPal Express for fully secure, PCI-compliant transactions.
  • B2B Flexible Billing: For large-scale infrastructure orders, we offer Direct Bank Transfer (SEPA/SWIFT) options. Please contact our team for a pro-forma invoice.
  • Warranty & Support: Consumer purchases are covered by the 2-year legal guarantee of conformity, and manufacturer warranty terms apply per brand. Our engineering team at shopioT provides technical support.

Delivery and Shipping

Tracked delivery within Cyprus by ACS Courier, and to all EU member states, the United Kingdom and Switzerland by FedEx International Priority. Orders ship from our warehouse in Nicosia, Cyprus, typically within 1–3 business days. Shipping cost is calculated at checkout by destination and parcel weight. See our Shipping Policy for rates and delivery times.

EU business? Enter your company name and a valid EU VAT number at checkout to remove VAT (reverse charge).

Description

The RAKwireless Outdoor Cavity Band-Pass Filter is an RF accessory that boosts LoRaWAN gateway performance in high-interference environments. It allows only the target LoRa band to pass while attenuating out-of-band signals such as LTE, 5G, radar, and industrial noise — so your gateway hears genuine LoRa traffic, not the surrounding RF clutter.

Built on a high-Q resonant cavity design, this EU868 (863–870 MHz) model isolates the band with >70 dB out-of-band rejection and just <2.5 dB insertion loss, keeping LoRa signal strength intact. Standard N-Female ports and an IP67 body make it a drop-in upgrade for urban and industrial outdoor deployments.

Core Capabilities

High Out-of-Band Rejection A high-Q resonant cavity isolates the EU868 band with >70 dB of out-of-band rejection, suppressing LTE, 5G, radar, and industrial noise that would otherwise desensitise the gateway.
Low Insertion Loss Insertion loss of <2.5 dB across 863–870 MHz, with VSWR <1.25, preserves LoRa signal strength so the filtering doesn't cost you range.
Easy Inline Integration Standard N-Female ports connect the gateway (Port 1) and antenna (Port 2) with no adapters, plus a ground pad for ESD and surge protection.
Rugged Outdoor Build An IP67 cavity body rated −40 °C to +65 °C and up to 100 W input power is built for permanent tower- and rooftop-mounted gateway sites.

Typical Applications

Dense Urban Sites: Reject strong LTE/5G signals from co-located cellular equipment that would otherwise desensitise a rooftop LoRaWAN gateway.
Industrial Environments: Cut radar, machinery, and broadband RF noise to keep uplink reception stable on factory and plant deployments.
Coverage & Sensitivity Recovery: Restore weak-signal reception and reduce packet loss at sites suffering from out-of-band interference.

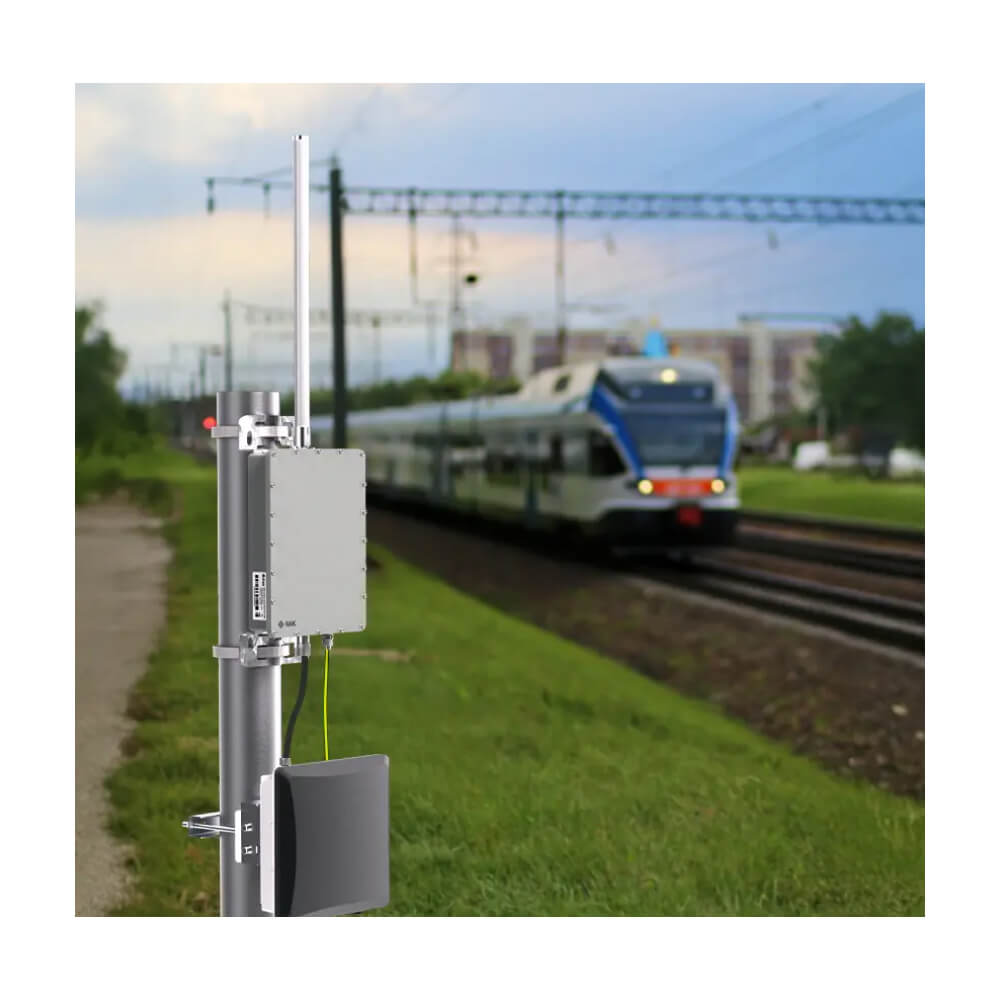

Outdoor Tower & Rooftop Gateways: An IP67 inline filter for permanent installations alongside the antenna feed.

Technical Integration

Key points for fitting the filter into your RF path:

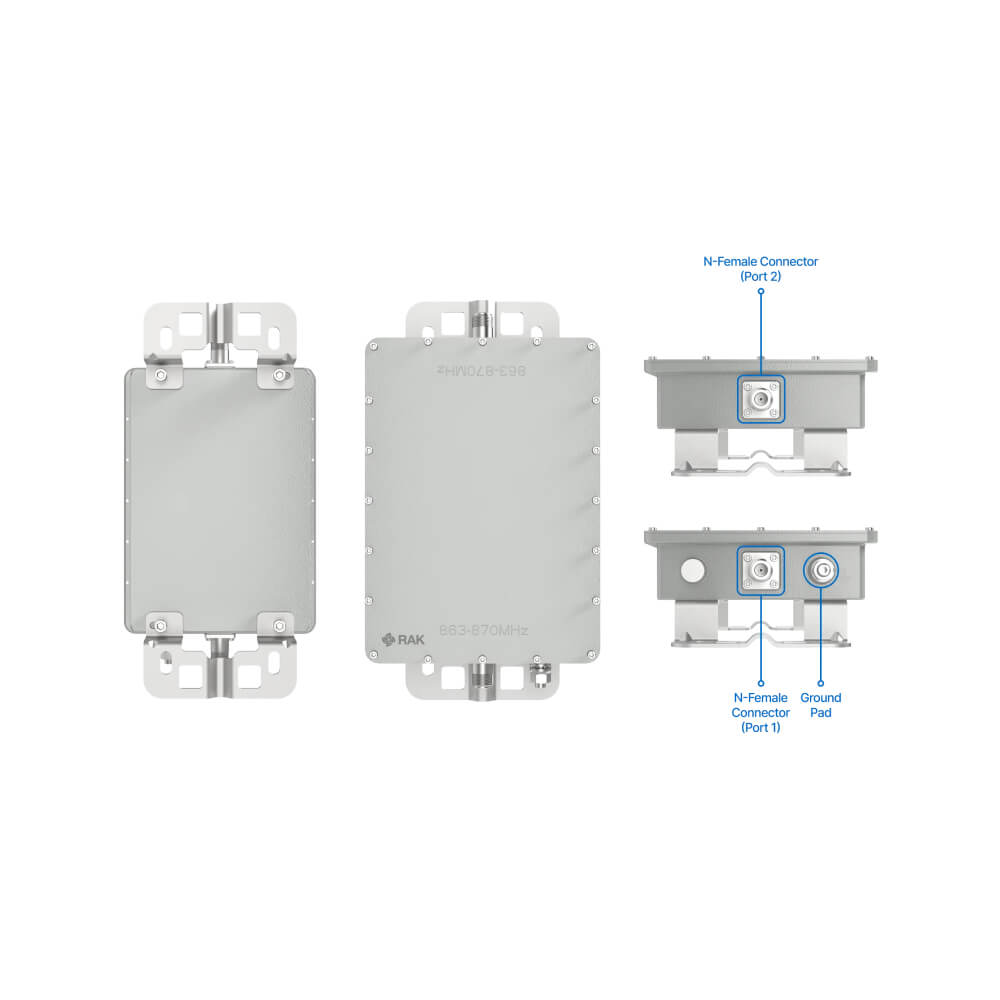

RF path: Installs inline on the antenna feed — N-Female Port 1 to the gateway, N-Female Port 2 to the antenna, no adapters required.
Pass band & loss: 863–870 MHz (EU868) with insertion loss <2.5 dB and VSWR <1.25.
Rejection: >70 dB out-of-band attenuation against LTE, 5G, radar, and industrial noise (the wider product family reaches >75 dB).
RF ratings: Input power up to 100 W and 3rd-order intermodulation products <−150 dBm for clean, high-power links.
Grounding & environment: Bond the ground pad to earth (strongly recommended for ESD/surge); IP67, −40 °C to +65 °C, 228 × 164.6 × 51.5 mm, 1.5 kg.
Setup help: For band selection (other regional variants are available) or interference troubleshooting, contact the shopioT technical team.

What's in the Box

1×Outdoor Cavity Band-Pass Filter (EU868, 863–870 MHz)

Note: an RF coaxial cable to the gateway and antenna, and earth-grounding hardware, are required and sold separately.

Frequently Asked Questions

What does this filter do?

It's a high-Q cavity band-pass filter that passes the LoRa band while rejecting out-of-band LTE, 5G, radar, and industrial noise — improving gateway reception and reducing packet loss at high-interference sites.

Which band is this version?

EU868 (863–870 MHz). The product family also offers US915, IN865, AU915, KR920, AS923-1/2/3/4, and CN470 variants — contact us if you need a different band.

How much interference does it reject, and at what cost to signal?

More than 70 dB of out-of-band rejection with under 2.5 dB insertion loss and VSWR <1.25, so it cuts interference while preserving LoRa signal strength.

How is it installed?

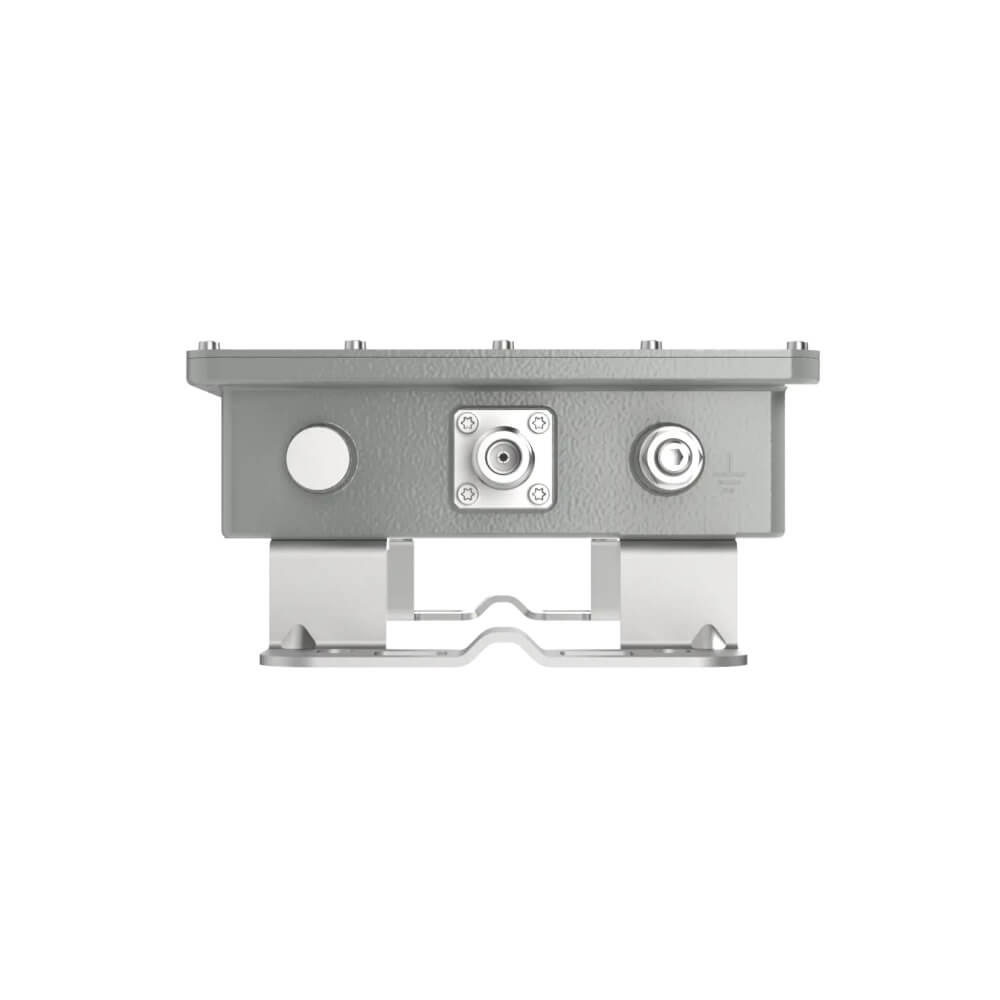

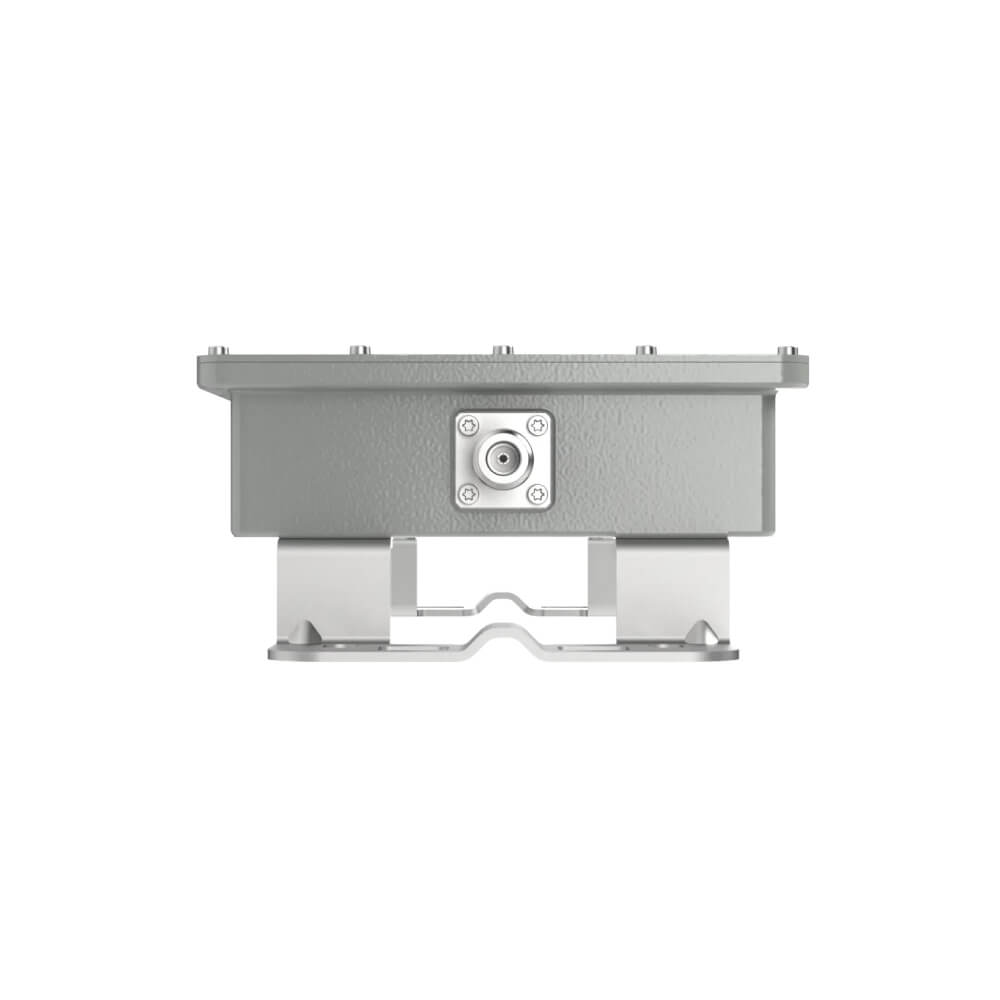

Inline on the antenna feed: connect Port 1 (N-Female) to the gateway and Port 2 (N-Female) to the antenna, then bond the ground pad to a low-impedance earth.

Why should I ground it?

The ground pad provides ESD and surge protection and is strongly recommended. For full lightning protection, pair it with a dedicated surge arrestor.

Is it suitable for outdoor use?

Yes — it's IP67-rated and operates from −40 °C to +65 °C, built for permanent tower and rooftop installation.

Specifications
  • Primary Communication Protocol
    LoRaWAN
  • Frequency/Region
    EU868
  • Antenna Type
    External (N-Type)
  • Radio & Range

    Model: RAK-BPF03 (EU868/RU864)

    Frequency: 863–870 MHz (pass band)

    Insertion loss: < 2.5 dB (863–870 MHz)

    Stop band attenuation: > 70 dB (0–860 MHz); 70 dB (873–4000 MHz)

    VSWR: < 1.25

    Max input power: < 100 W

    Intermodulation: < -150 dBm (3rd order, 2 × 37 dBm)

    Connector: N-type female

  • Power Source
    Passive / Host-powered
  • Dimensions
    228 × 164.6 × 51.5 mm (without connectors and mounting brackets)
  • Weight
    1.5 kg

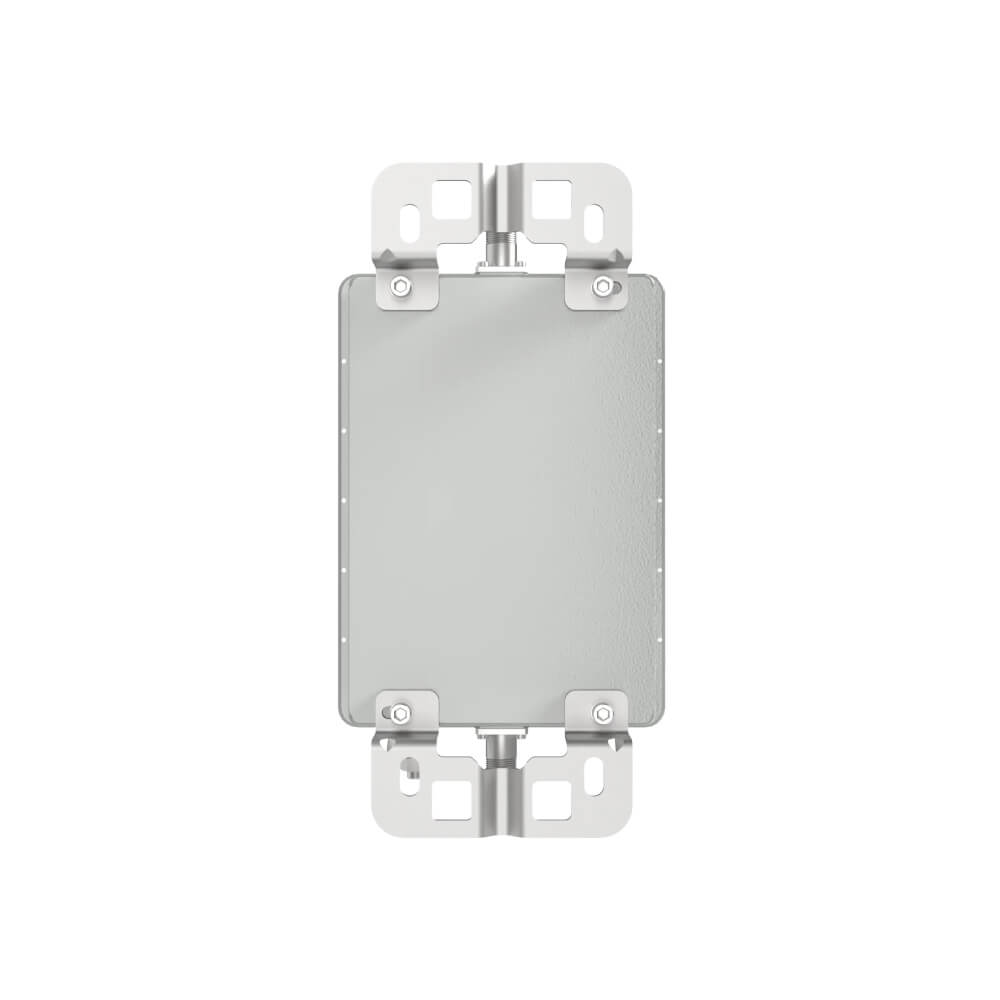

  • Mounting Options
    Wall Mount, Pole Mount
  • IP Rating
    IP67
  • Environment Rating
    Outdoor, Industrial
  • Warranty
    2 Years

Document Library

Cavity Filter Datasheet
