RAK Wireless | SKU: 920025

RAKwireless Antenna Feeder Line | LMR195 Low-Loss Coaxial Cable, N-Female to N-Male (1.5/3/5 m)

€9,90

Shipping calculated at checkout.

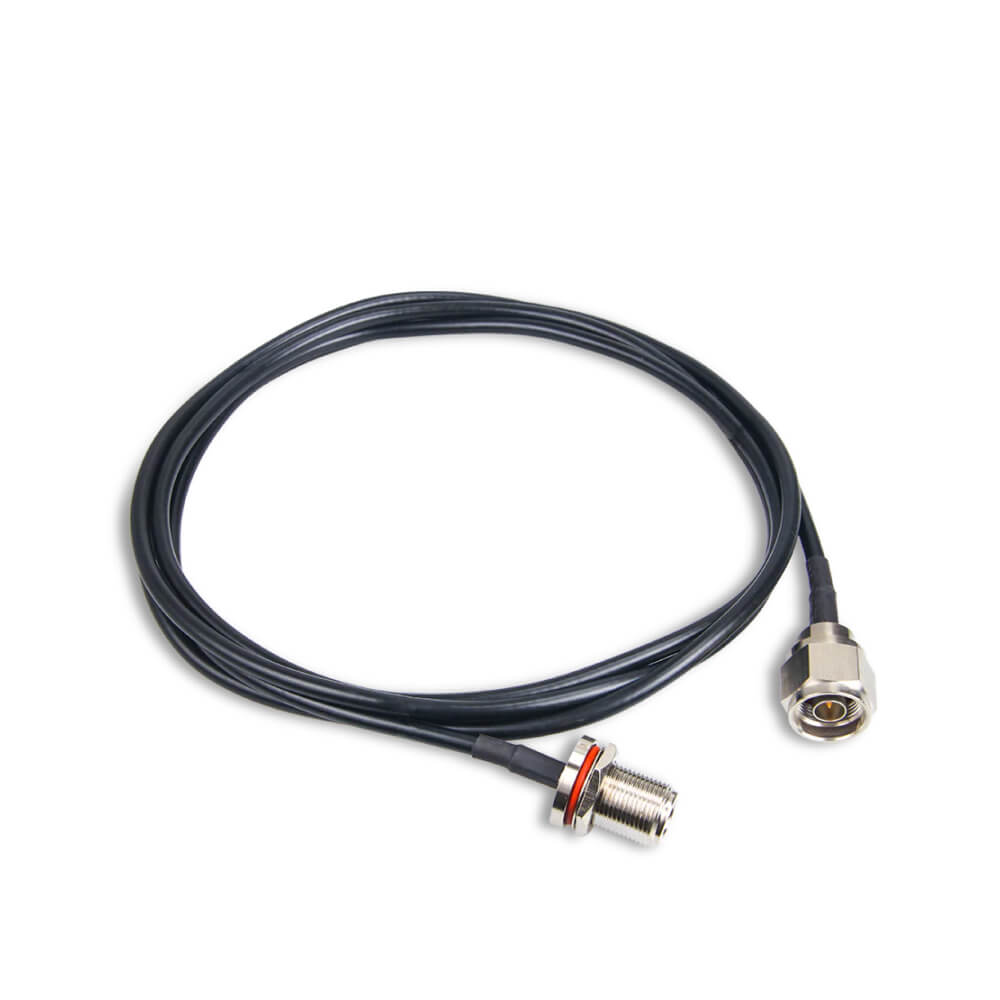

The RAKwireless Antenna Feeder Line is a low-loss coaxial cable for repositioning gateway antennas.

Low-loss extension: LMR195 50 Ω cable rated 0–3 GHz, VSWR 1.5
Plug-and-play fit: N-female to N-male in 1.5 m, 3 m and 5 m lengths
Built for outdoors: black-jacketed, −40 to +85 °C, 5–95% RH

Length

VAT Free Transaction Option

Our store displays prices excluding VAT by default. For EU-based businesses with a valid VAT number, intra-community VAT exemptions apply. You can validate your VAT number during the checkout process to ensure correct billing.

Secure Payment & Warranty

Encrypted Checkout: Shop with confidence via Shopify Payments or PayPal Express for fully secure, PCI-compliant transactions.
B2B Flexible Billing: For large-scale infrastructure orders, we offer Direct Bank Transfer (SEPA/SWIFT) options. Please contact our team for a pro-forma invoice.
Quality Guaranteed: All professional IoT hardware is backed by a 2-year manufacturer warranty and technical support from our engineering experts at shopioT.

Delivery and Shipping

Reliable, tracked, and fast global shipping via FedEx Express. Your professional IoT hardware is dispatched from our EU-based warehouse within 2 business days.

Input your company name and a valid EU VAT number at the checkout page for a VAT Free Transaction.

Description

The RAKwireless Antenna Feeder Line is a low-loss LMR195 coaxial cable that lets you position your gateway antenna for optimal coverage. Built for the WisGate Edge Prime & Max (RAK7240/7249), it moves the antenna away from the gateway — up a mast, onto a roof, or clear of obstructions — without sacrificing signal integrity.

It uses an N-type female to N-type male connector pair, a 50 Ω impedance, and a wide 0–3 GHz range with VSWR ≤1.5, so it suits LoRaWAN and other sub-3 GHz RF links. Choose from 1.5 m, 3 m, or 5 m lengths to match your installation.

Core Capabilities

Low-Loss LMR195 Coaxial A 50 Ω LMR195 cable rated 0–3 GHz with VSWR ≤1.5 keeps insertion loss low — just −1.27 dB over 3 m and −1.99 dB over 5 m at 1 GHz.

Optimal Antenna Positioning Relocate the antenna away from the gateway — higher up or clear of obstacles — to extend range and improve coverage across your LoRaWAN network.

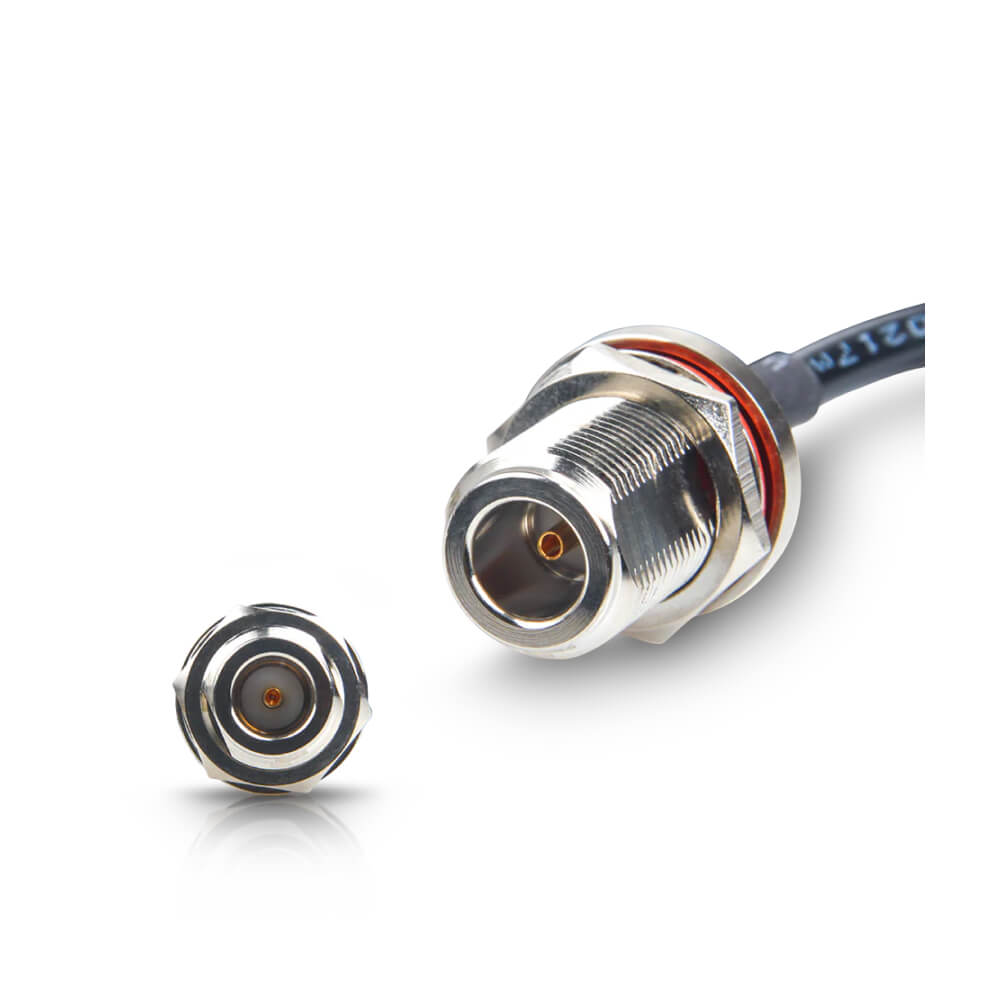

N-Type Female-to-Male Connectors Standard N-female to N-male ends connect directly to RAK WisGate gateways and any N-type antenna or surge arrestor in the RF chain.

Built for Tough Environments A black-jacketed cable rated −40 °C to +85 °C and 5–95% humidity stands up to indoor and sheltered-outdoor installations.

Typical Applications

Antenna Elevation: Raise the antenna up a mast or pole to clear obstructions and maximise LoRaWAN line-of-sight coverage.

Indoor-to-Outdoor Runs: Keep the gateway sheltered indoors while routing the antenna outside or onto the roof.

RF Chain Assembly: Link an N-type antenna, surge arrestor, and gateway together when building an outdoor RF path.

Flexible Deployments: Pick 1.5 m for short bench/cabinet runs, or 3 m / 5 m to reach mast- and roof-top antennas.

Choosing Your Length

Length	Signal Loss @ 1 GHz	Best For
1.5 m	Lowest (shortest run)	Bench, cabinet, or close antenna placement
3 m	−1.27 dB	Standard mast or pole antenna placement
5 m	−1.99 dB	Longer runs to roof- or tower-top antennas

Signal loss rises with frequency (e.g. 3 m: −1.83 dB at 2 GHz, −2.31 dB at 3 GHz; 5 m: −2.89 dB at 2 GHz, −3.75 dB at 3 GHz). Choose the shortest length that reaches your antenna.

Technical Integration

Key points for fitting the feeder line into your RF path:

RF path: Sits inline between the gateway and antenna, with an N-type female end and an N-type male end.

Cable & impedance: LMR195, 50 Ω, 0–3 GHz, VSWR ≤1.5 — suited to LoRaWAN and other sub-3 GHz links.

Signal loss: About −1.27 dB (3 m) and −1.99 dB (5 m) at 1 GHz, rising at higher frequencies.

Compatibility: Designed for RAK7240/7249 WisGate Edge Prime & Max; works with any N-type antenna or surge arrestor.

Environment: Black-jacketed cable rated −40 °C to +85 °C and 5–95% humidity.

Setup help: Choose the shortest length that reaches your antenna to minimise loss — contact the shopioT technical team for advice.

What's in the Box

1×LMR195 Antenna Feeder Line (N-Female to N-Male, length as selected)

Frequently Asked Questions

Which lengths are available?

Three: 1.5 m, 3 m, and 5 m. Select your length at checkout. Pick the shortest run that reaches your antenna to keep signal loss to a minimum.

What connectors does it use?

An N-type female connector on one end and an N-type male connector on the other.

How much signal does it lose?

About −1.27 dB over 3 m and −1.99 dB over 5 m at 1 GHz, rising slightly at higher frequencies (up to −2.31 dB / −3.75 dB at 3 GHz).

Is it compatible with my gateway?

It's designed for the RAK7240/7249 WisGate Edge Prime & Max, and works with any N-type antenna or surge arrestor in a 0–3 GHz RF path.

What cable type and impedance is it?

A 50 Ω LMR195 coaxial cable rated 0–3 GHz with VSWR ≤1.5.

Can it be used outdoors?

It's rated −40 °C to +85 °C and 5–95% humidity. For fully exposed installs, weatherproof the connections and add a surge arrestor between the antenna and gateway.

Building Out Your Antenna Setup?

Talk to our IoT specialists, or explore the gateways and accessories to pair with it.

Talk To Our IoT Team Shop LoRaWAN Gateways Browse Antennas & Accessories

Specifications

Environment Rating

Outdoor
Operating Temperature

-40°C to 85°C
Measurement Technology
- LMR195 High-Performance Coaxial: Provides a significant upgrade over standard RG58 cables, offering better shielding and lower attenuation for IoT frequencies.
- Standardized RF Interface: Features N-type Female to N-type Male connectors, ensuring a secure and reliable fit for professional outdoor antennas and gateways.
- Weatherproof Reliability: The UV-resistant jacket and wide operating temperature range (-40°C to +85°C) ensure consistent performance in exposed outdoor environments.
- Optimized for 0-3 GHz: Specifically tailored for LoRaWAN (868/915 MHz) and Wi-Fi (2.4 GHz) applications to maintain maximum link budget.
Measurement Range
Available Length Variants:
- 1.5 Meters (4.9 ft): Best for close-proximity mounting where minimal cable loss is the priority.
- 3.0 Meters (9.8 ft): The standard length for most wall or pole-mounted gateway installations.
- 5.0 Meters (16.4 ft): Provides the necessary reach for complex rooftop or tower placements.
Measurement Accuracy
- VSWR Efficiency: Rated at ≤1.5 to minimize signal reflection and maximize the power delivered to the antenna.
- Impedance Stability: Precision-engineered 50 Ω impedance matching to prevent signal bounce and data errors.
- Shielding Effectiveness: High-coverage braid and foil shielding protect the signal from external electromagnetic interference.
Measurement Resolution
Signal Loss Report (Typical Attenuation):
- For 3m Length: Loss of ~1.23 dB at 900 MHz.
- For 5m Length: Loss of ~2.05 dB at 900 MHz.
- Operational Humidity: Reliable signal transmission even in 5% to 95% RH environments.

Document Library

LMR195 Cable Datasheet
