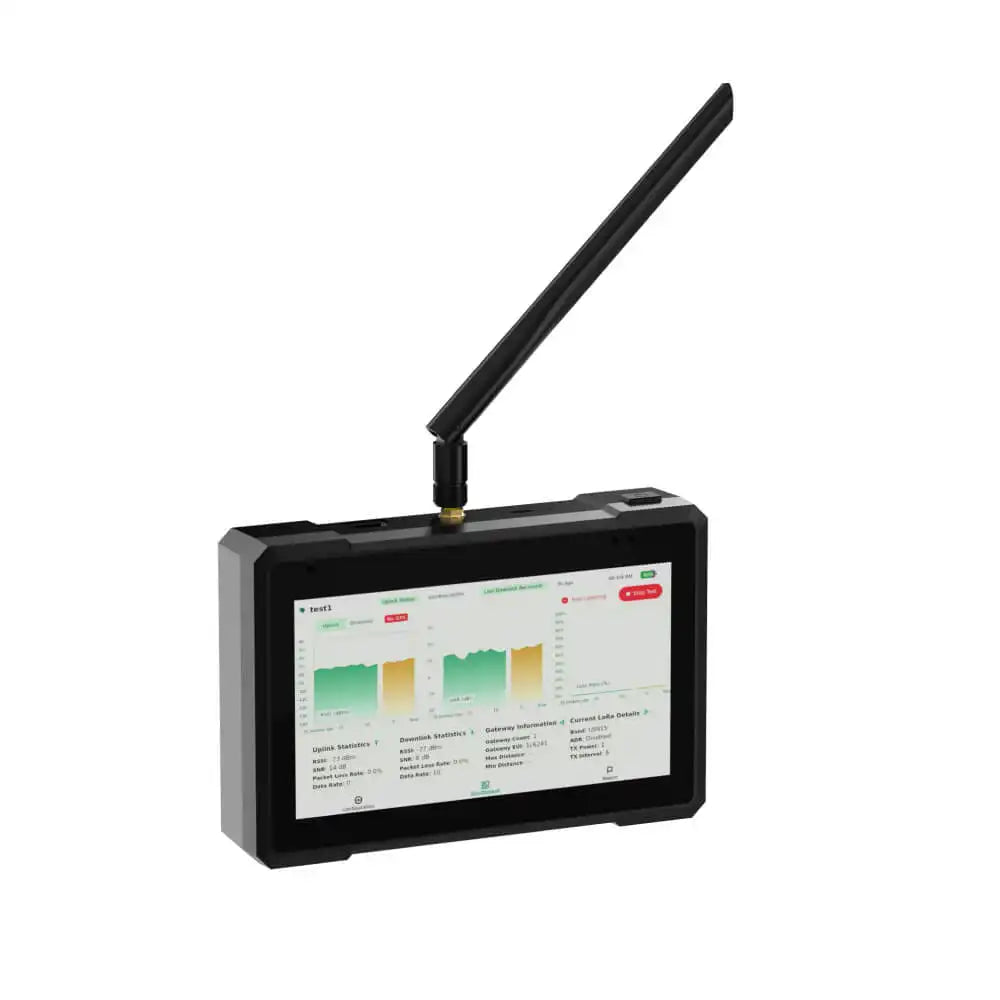

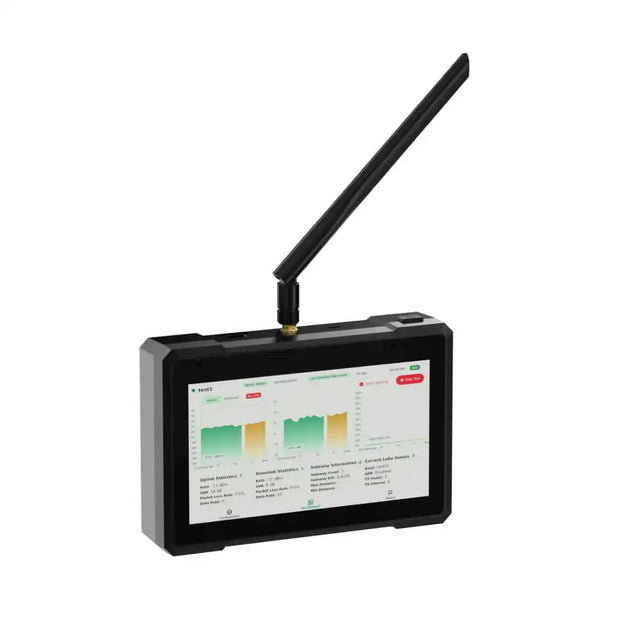

RAKwireless RAK7590 | Handheld LoRaWAN Field Tester Pad with GPS & 7" LCD

€433,00

Shipping calculated at checkout.

A professional handheld LoRaWAN field tester with GPS mapping, heatmap visualisation, and 11+ hours of battery life for comprehensive network coverage verification.

Signal Testing: Live RSSI/SNR/Packet Loss | EU868, US915, AS923 & More
Display & Mapping: 7" 1024×600 LCD | GPS Heatmap | Offline Maps
Battery: 20,000 mAh Rechargeable | 11+ Hours Field Operation

Frequency/Region

VAT Free Transaction Option

Our store displays prices excluding VAT by default. For EU-based businesses with a valid VAT number, intra-community VAT exemptions apply. You can validate your VAT number during the checkout process to ensure correct billing.

Secure Payment & Warranty

Encrypted Checkout: Shop with confidence via Shopify Payments or PayPal Express for fully secure, PCI-compliant transactions.
B2B Flexible Billing: For large-scale infrastructure orders, we offer Direct Bank Transfer (SEPA/SWIFT) options. Please contact our team for a pro-forma invoice.
Quality Guaranteed: All professional IoT hardware is backed by a 2-year manufacturer warranty and technical support from our engineering experts at shopioT.

Delivery and Shipping

Reliable, tracked, and fast global shipping via FedEx Express. Your professional IoT hardware is dispatched from our EU-based warehouse within 2 business days.

Input your company name and a valid EU VAT number at the checkout page for a VAT Free Transaction.

Description

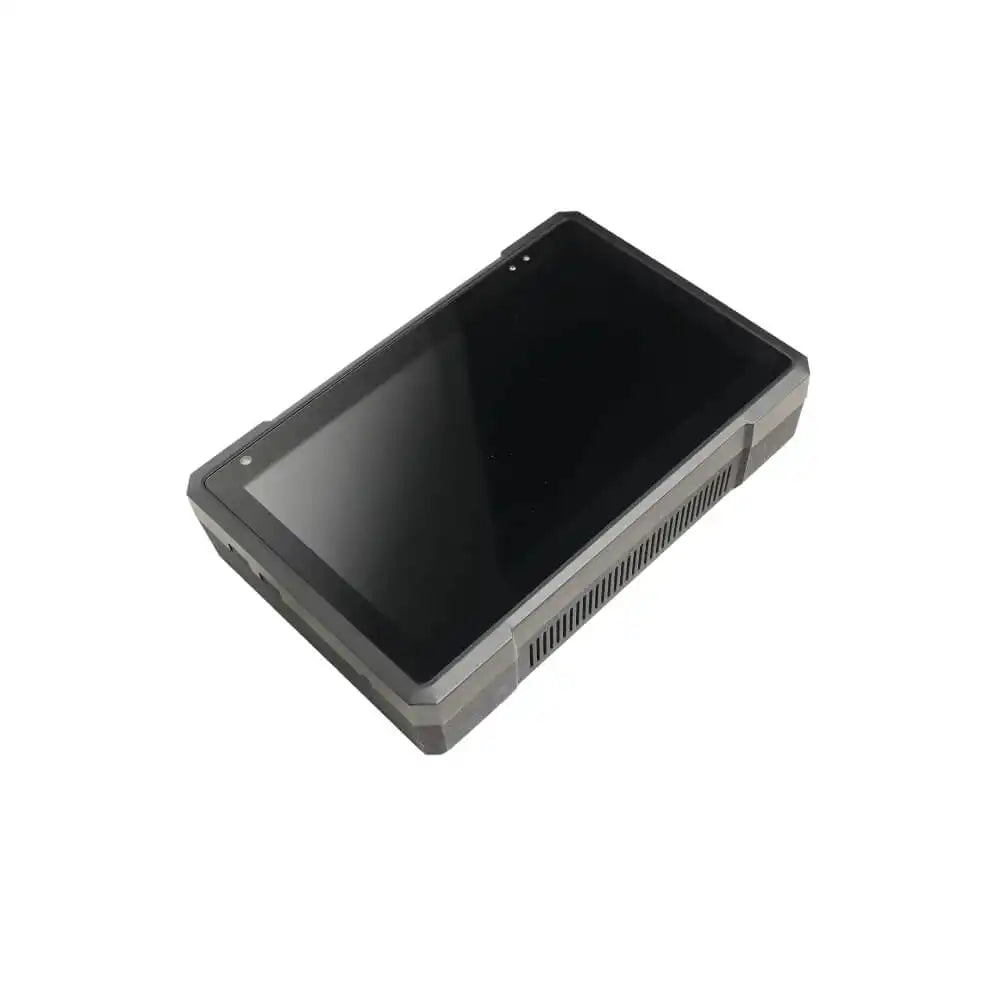

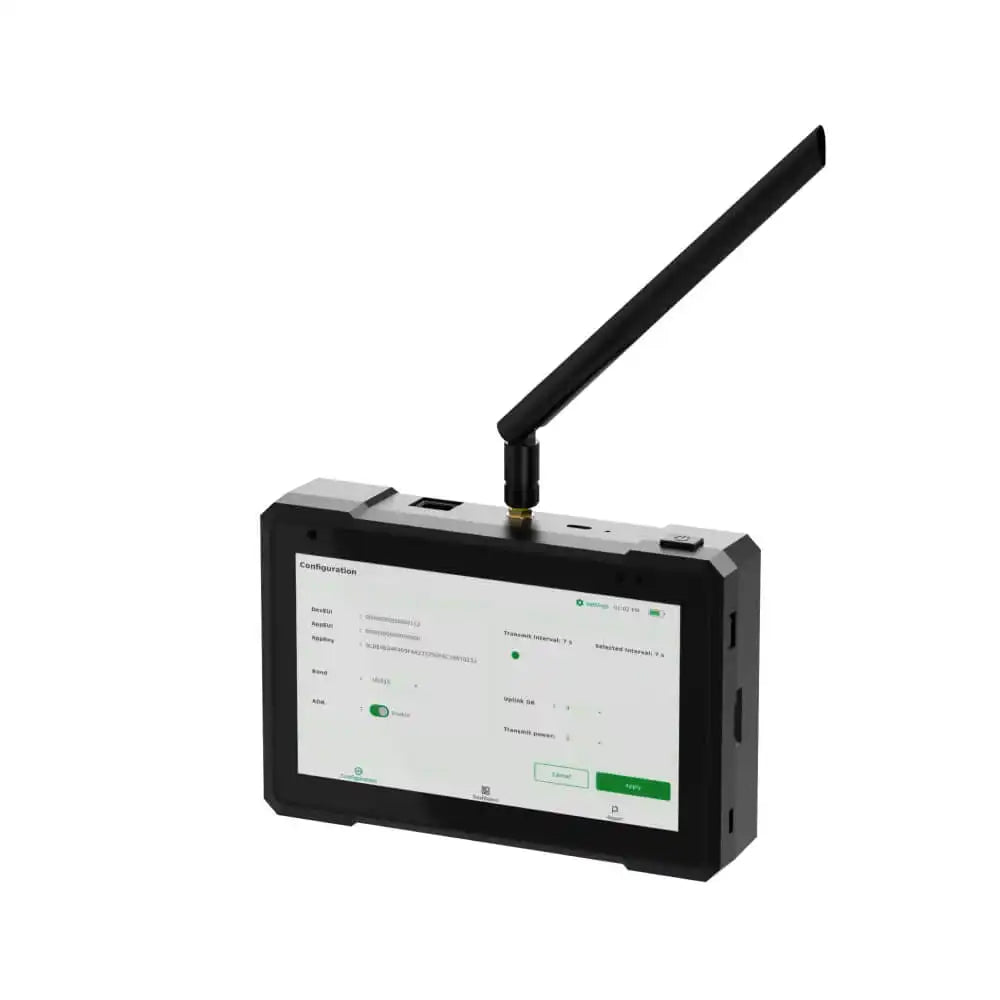

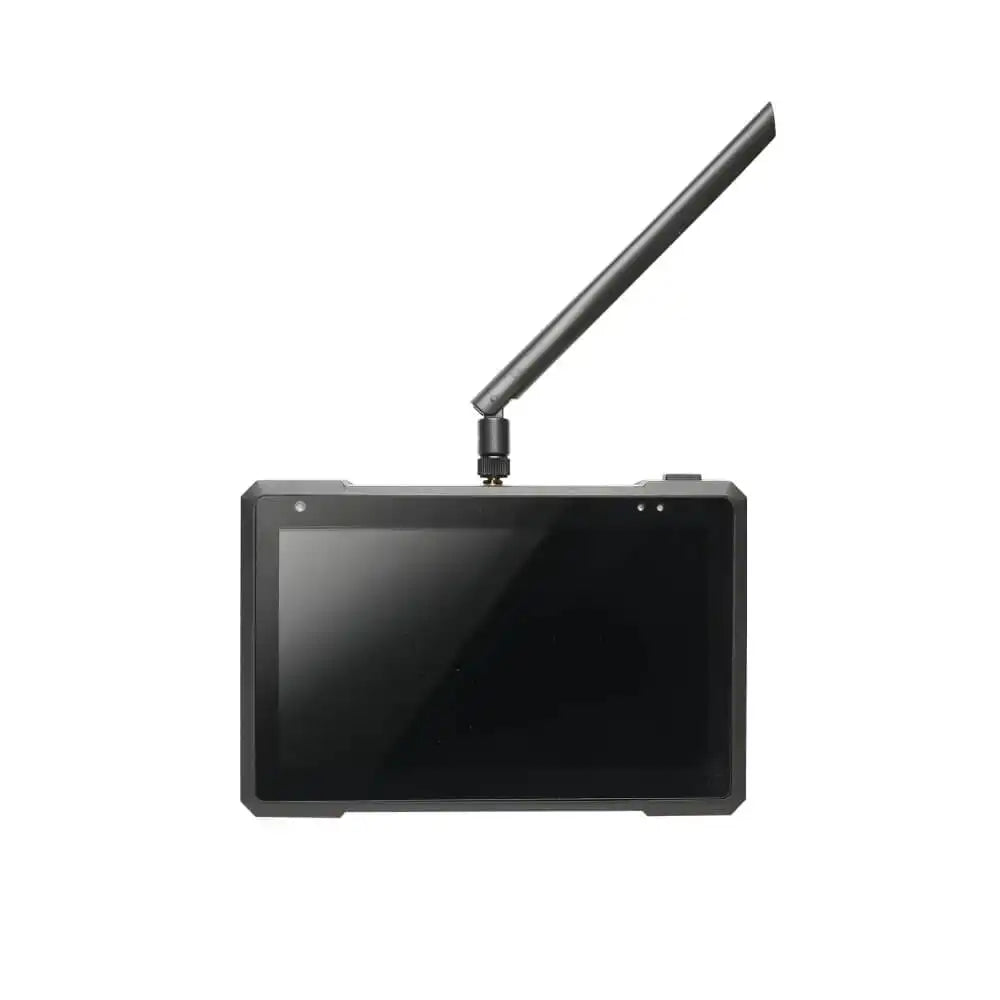

The RAKwireless RAK7590 Field Tester Pad is a professional handheld device engineered for comprehensive indoor and outdoor LoRaWAN network testing and deployment verification. Built on the Raspberry Pi CM4 platform and featuring a 7-inch 1024×600 LCD touchscreen, it delivers real-time visualisation of uplink and downlink RSSI, SNR, and packet loss rate — empowering network engineers and installers to evaluate LoRaWAN coverage with precision during commissioning, site surveys, and maintenance operations. With a built-in GPS module, offline map support, and heatmap visualisation, the RAK7590 provides the spatial context needed to assess signal distribution across entire deployment areas. A 20,000 mAh rechargeable lithium battery delivers over 11 hours of continuous operation, making it fully field-portable.

Core Capabilities

Real-Time Signal Quality Analysis Live display of uplink and downlink RSSI, SNR, and packet loss rate for the last 20 packets, with gateway count, EUI, and distance information.

GPS Mapping & Heatmap Visualisation Built-in GPS associates test data with precise coordinates. Offline map and heatmap support enable signal coverage assessment in areas without internet connectivity.

Multi-Band LoRaWAN 1.0.3 Compliance Supports RU864, IN865, EU868, US915, AU915, KR920, and AS923-1/2/3/4 frequency bands, covering all major global LoRaWAN regions including Europe and the Middle East.

20,000 mAh Battery & Dual Power Modes Built-in 20,000 mAh @ 3.7V rechargeable lithium battery delivers 11+ hours of operation. Supports both USB Type-C external power and internal battery modes.

Industrial Applications

• LoRaWAN Network Commissioning: Verify gateway coverage, signal strength, and network quality during initial deployment of LoRaWAN infrastructure across smart city, industrial, and building automation projects.

• Site Survey & Coverage Mapping: Walk a deployment area and build GPS-tagged signal heatmaps to identify coverage gaps, interference zones, and optimal gateway placement locations before finalising infrastructure.

• Network Maintenance & Troubleshooting: Diagnose packet loss, RSSI degradation, and SNR issues in existing LoRaWAN deployments, with exportable test reports for comparative analysis across maintenance visits.

• Private Network Validation: Test against TTN, ChirpStack, AWS IoT Core for LoRaWAN, or WisGateOS 2 built-in network servers — including offline testing environments requiring no internet connectivity.

Technical Integration

The RAK7590 integrates with the Field Test Data Processor Extension on WisGateOS 2 for backend data parsing and performance analysis, forming a complete end-to-end LoRaWAN testing workflow. It communicates via an external SMA LoRa antenna and features built-in GPS, Wi-Fi, and BLE antennas. A Gigabit Ethernet (RJ45) port enables wired network connectivity, while USB Type-A and MicroSD interfaces support peripheral attachment and firmware management. OTAA activation and Class A LoRaWAN modes are supported. For deployment planning or integration support, contact the ShopIoT technical team.

Certifications

FCC

RoHS

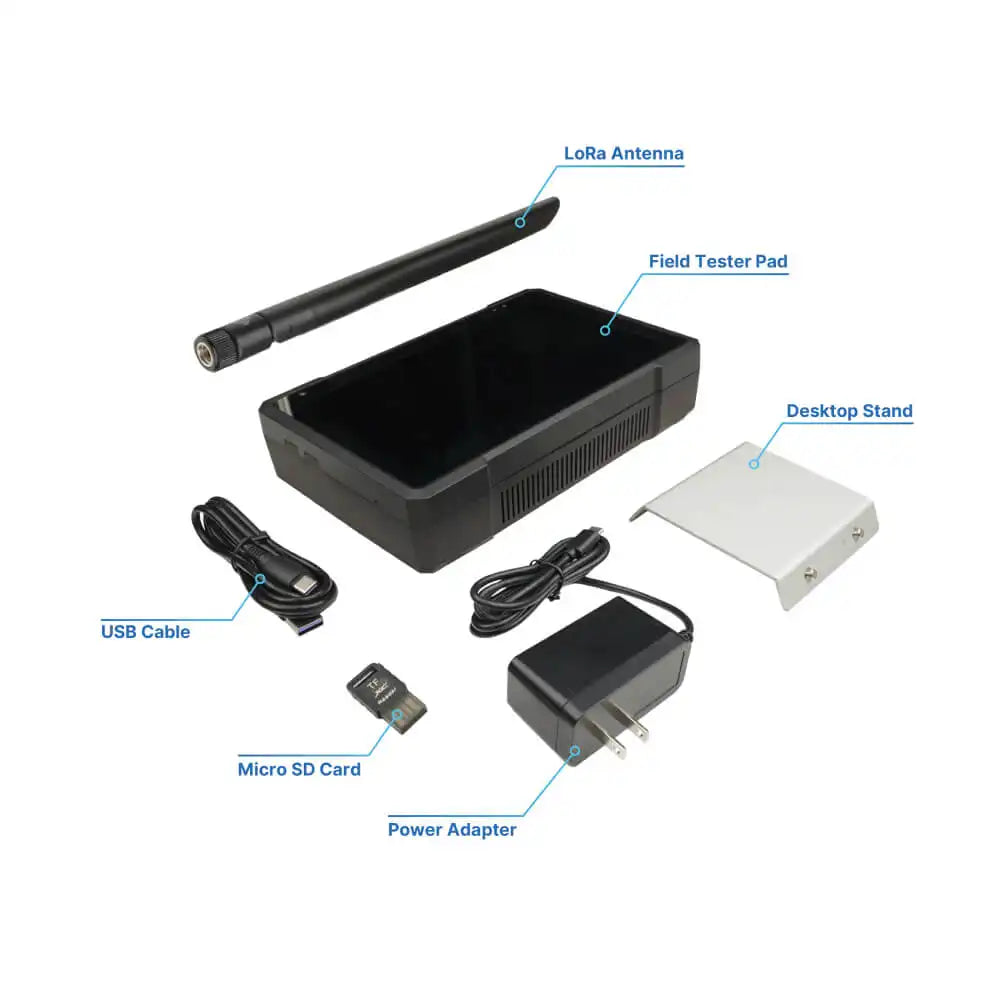

What's in the Box

1 × RAK7590 Field Tester Pad

1 × External LoRa SMA Antenna

1 × USB Type-C Power Cable

Specifications

Primary Communication Protocol

LoRaWAN
Frequency/Region

EU868
Antenna Type

External (SMA)
Configuration Method

On-device Touchscreen
Activation Method

OTAA
Environment Rating

Outdoor, Indoor
Operating Temperature

-20°C to 50°C
Battery Type

Li-Po
Power Consumption

Max. 7.3W (continuous LoRa TX + GPS acquisition mode), Standby: ~0.6mA battery drain after shutdown
Measurement Technology
- LoRaWAN RF signal quality measurement (RSSI / SNR / Packet Loss)
- GPS-based location tagging (GPS / GNSS)
- LinkCheck mode for downlink quality assessment
Measurement Range

• RSSI: displayed in dBm (range not specified)
• SNR: displayed in dB (range not specified)
• Packet Loss Rate: 0–100%
• Gateway Distance: measured in multiples of 250m minimum unit
Measurement Resolution

• Gateway distance: minimum unit 250 metres
• RSSI/SNR: per-packet real-time measurement (resolution not specified in datasheet)
Interfaces (I/O)

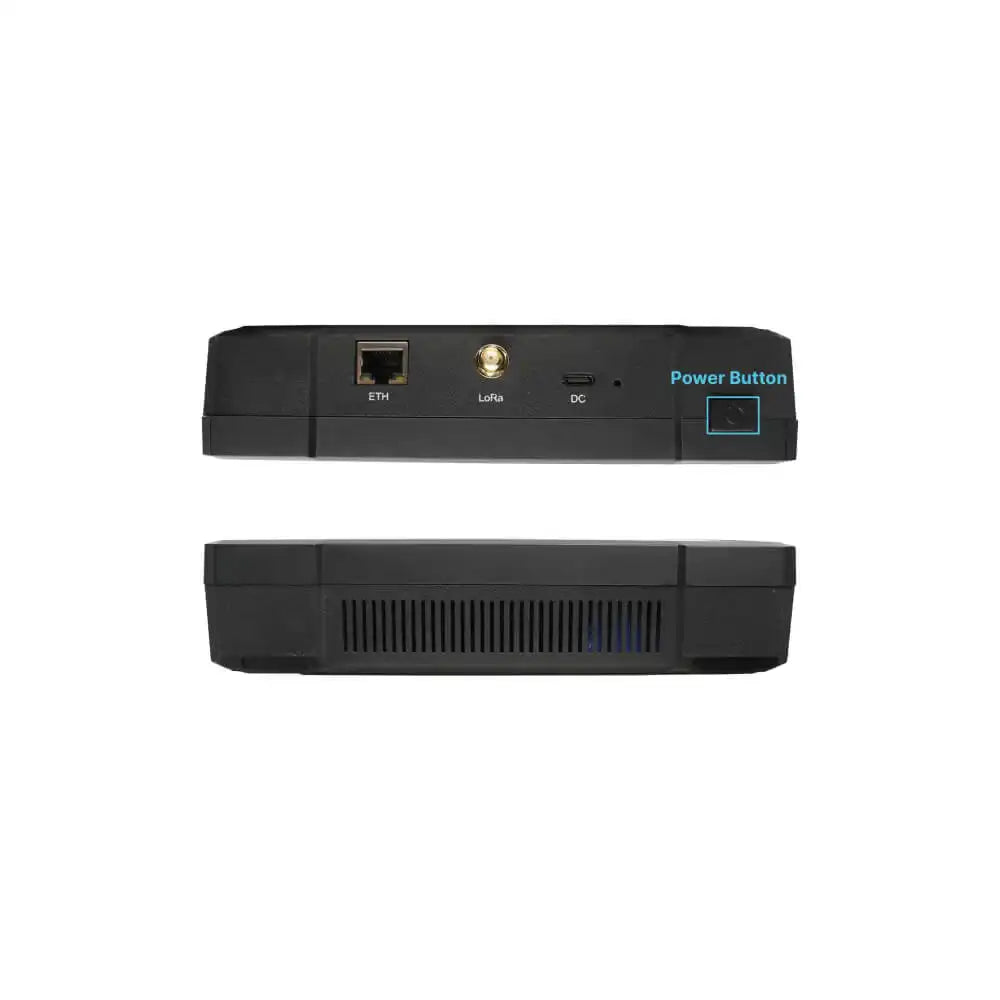

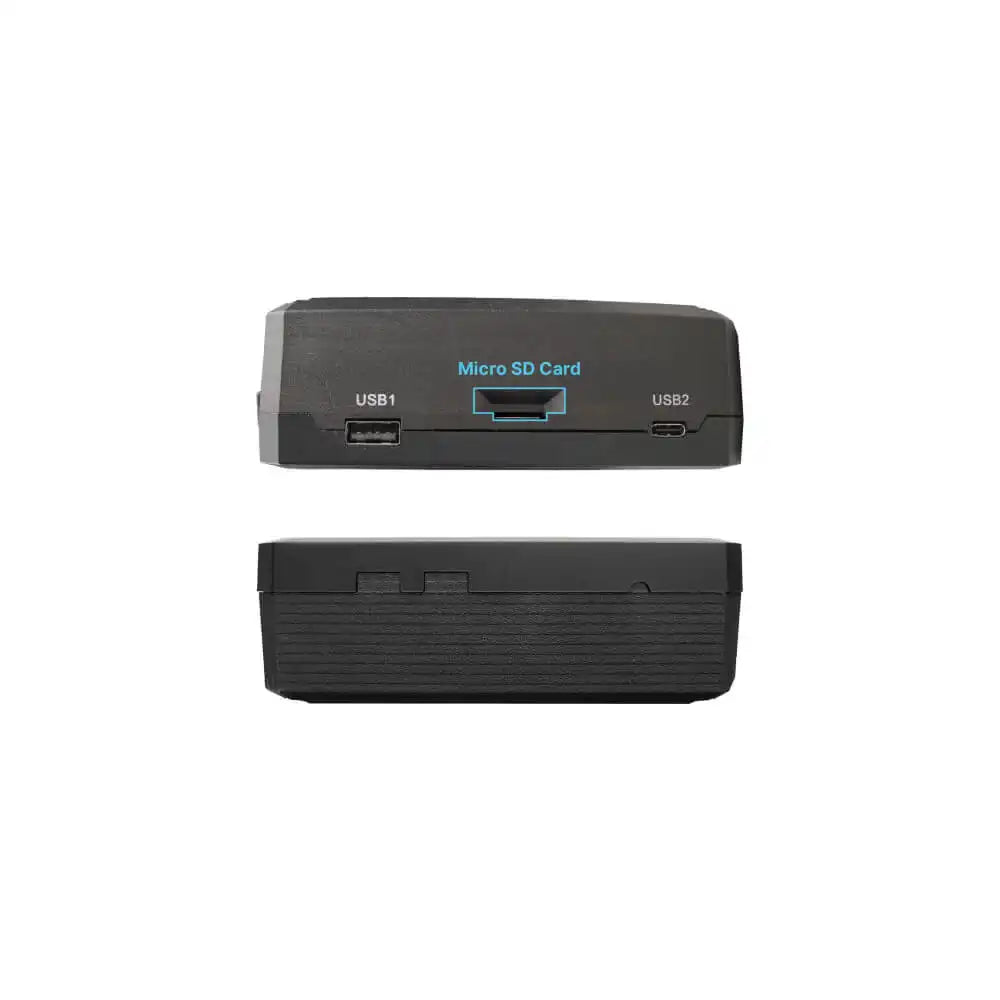

SMA connector, Ethernet (RJ45), USB Type-C, USB Type-A, MicroSD Card Slot
Monitoring Parameters

Backhaul Status, LoRa Traffic

Document Library

RAK7590 Datasheet
