Seeed Studio  |  SKU: 102991735

Seeed Studio EdgeBox-ESP-100 | ESP32-Based Industrial Edge Controller

Price incl. 19% VAT
€207,00
Price excl. VAT
€173,95
Shipping calculated at checkout. Shipping policy

The Seeed Studio EdgeBox-ESP-100 is an ESP32-S3 industrial controller for automation and IIoT gateway use.

  • Wireless: Wi-Fi, BLE and 4G LTE Cat 1 module
  • Interfaces: isolated CAN bus, RS485 and 100M Ethernet
  • Power input: 10.8-36 V DC with surge protection

VAT & Business Purchases

Prices include VAT at the rate of your EU delivery country, so the price shown is the price you pay. EU businesses with a valid VAT number can buy VAT-free: enter your company name and VAT number at checkout and VAT is removed under the intra-community reverse-charge rules. Orders delivered within Cyprus always include Cyprus VAT.

Secure Payment & Warranty
  • Encrypted Checkout: Shop with confidence via Shopify Payments or PayPal Express for fully secure, PCI-compliant transactions.
  • B2B Flexible Billing: For large-scale infrastructure orders, we offer Direct Bank Transfer (SEPA/SWIFT) options. Please contact our team for a pro-forma invoice.
  • Warranty & Support: Consumer purchases are covered by the 2-year legal guarantee of conformity, and manufacturer warranty terms apply per brand. Our engineering team at shopioT provides technical support.

Delivery and Shipping

Tracked delivery within Cyprus by ACS Courier, and to all EU member states, the United Kingdom and Switzerland by FedEx International Priority. Orders ship from our warehouse in Nicosia, Cyprus, typically within 1–3 business days. Shipping cost is calculated at checkout by destination and parcel weight. See our Shipping Policy for rates and delivery times.

EU business? Enter your company name and a valid EU VAT number at checkout to remove VAT (reverse charge).

Description

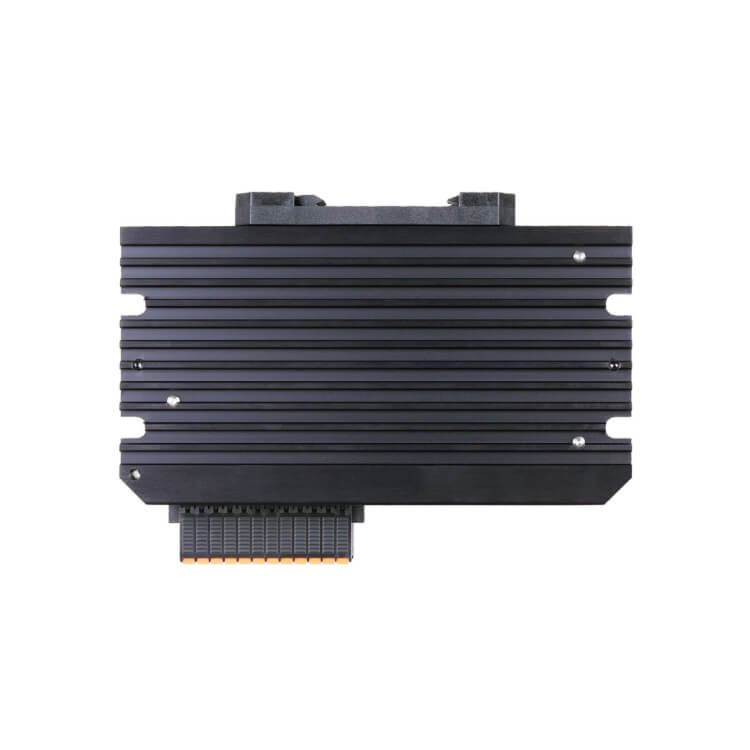

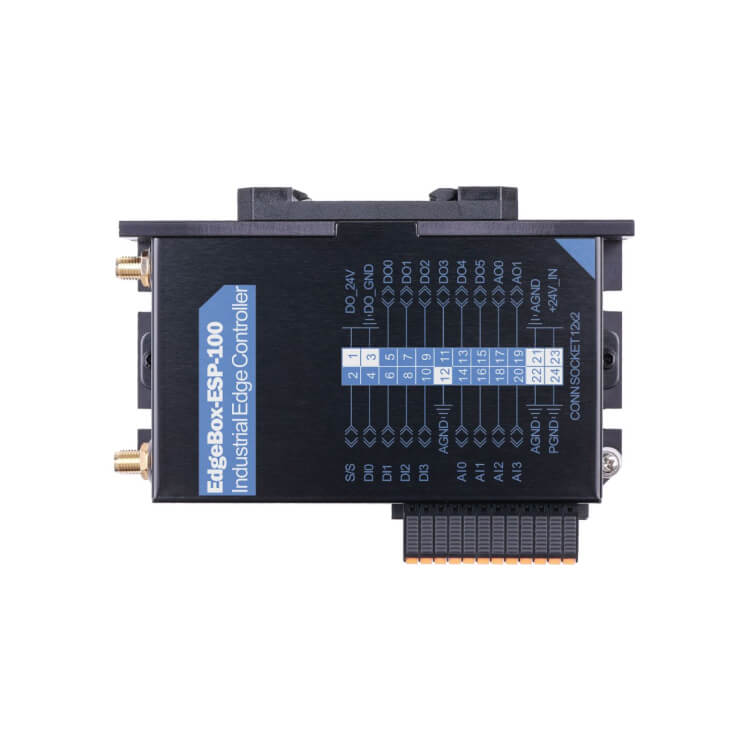

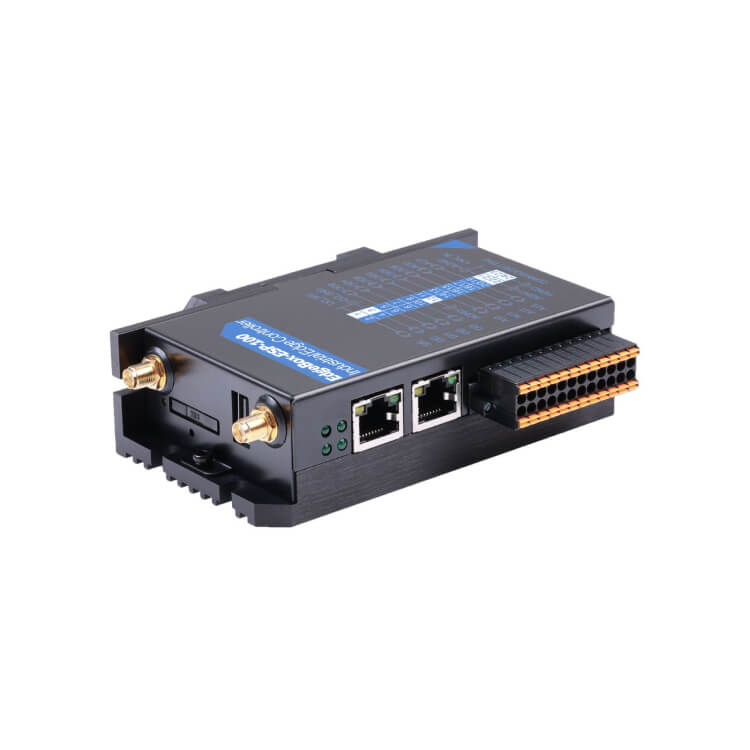

The Seeed Studio EdgeBox-ESP-100 is an Industrial Edge Controller powered by the ESP32-S3 SoC, bridging the gap between lightweight automation and robust IIoT networking. This all-in-one PLC and gateway is engineered for high-isolation environments, offering multi-fieldbus support including CAN BUS and RS485. With integrated 4G LTE Cat 1 and Wi-Fi/BLE capabilities, it serves as a versatile communication hub for remote data acquisition. Its compact, maintenance-reduced structure and wide voltage support make it an essential tool for smart buildings and industrial logic control.

Reliable Industrial Networking

Enhanced Electrical Protection Features high isolation for digital I/O and communication ports, along with short circuit and surge protection to ensure stable operation in noisy industrial environments.
Flexible Software Ecosystem Fully compatible with ESP-IDF and Arduino IDE, allowing engineers to deploy custom lightweight automation scripts and cloud-native IIoT applications with ease.

Professional Usage Scenarios

• Industrial Gateways: Bridge Modbus RS485 or CAN-based machinery to cloud dashboards via cellular or Wi-Fi.
• Smart Building Automation: Manage lighting, HVAC, and security systems using isolated DI/DO and analog interfaces.
• SCADA Integration: Act as a cost-effective remote terminal unit (RTU) for distributed data collection and edge logic.

Technical Specifications

• Processor: ESP32-S3 with 512KB RAM and 16MB Flash.
• Cellular: Built-in 4G LTE Cat 1 (SIMCom module).
• I/O: 4x Isolated DI, 6x Isolated DO, 4x AI (0-20mA/0-10V), 2x AO.
• Communication: 1x RS485, 1x CAN BUS, 1x RJ45 Ethernet.

Product Certifications

CE UKCA FCC RoHS

Specifications
  • Primary Communication Protocol
    Wi-Fi, Bluetooth/BLE, Cellular (LTE/4G/3G/2G)
  • Frequency/Region
    Global
  • Antenna Type
    External (SMA)
  • Backhaul Communication
    4G LTE, Ethernet (RJ45)
  • Radio & Range

    Wi-Fi: 2.4 GHz (ESP32-S3 on-chip), SMA female antenna port

    Bluetooth: 5.0 / BLE (on-chip)

    Cellular: 4G LTE Cat 1 (SIMCom A7670G), SMA female antenna port

  • Interfaces (I/O)
    CAN, RS485 (Modbus RTU), Analog Input (4-20mA), Analog Input (0-10V), Analog Output (0-5V), Digital Input (Dry Contact), Digital Output (Relay)
  • Configuration Method
    USB, ESP-IDF
  • Activation Method
    Manual
  • Measurement Range

    Analog inputs: 4 × isolated, 0–20 mA (default) / 0–10 V (optional)

    Analog outputs: 2 × isolated, 0–5 V (PWM with low-pass filter)

    Digital inputs: 4 × isolated, 24 VDC

    Digital outputs: 6 × isolated, 24 VDC (±10%), 1 A

    Fieldbus: 1 × isolated RS485, 1 × isolated CAN, 1 × 10/100 Mbps Ethernet (RJ45)

  • Power Source
    DC Input
  • Power Input
    10.8–36 VDC (24 VDC recommended)
  • Power Consumption
    Idle: 81 mA @ 24 VDC (actual draw depends on application and connected peripherals)
  • Enclosure Material
    Aluminum Alloy
  • Mounting Options

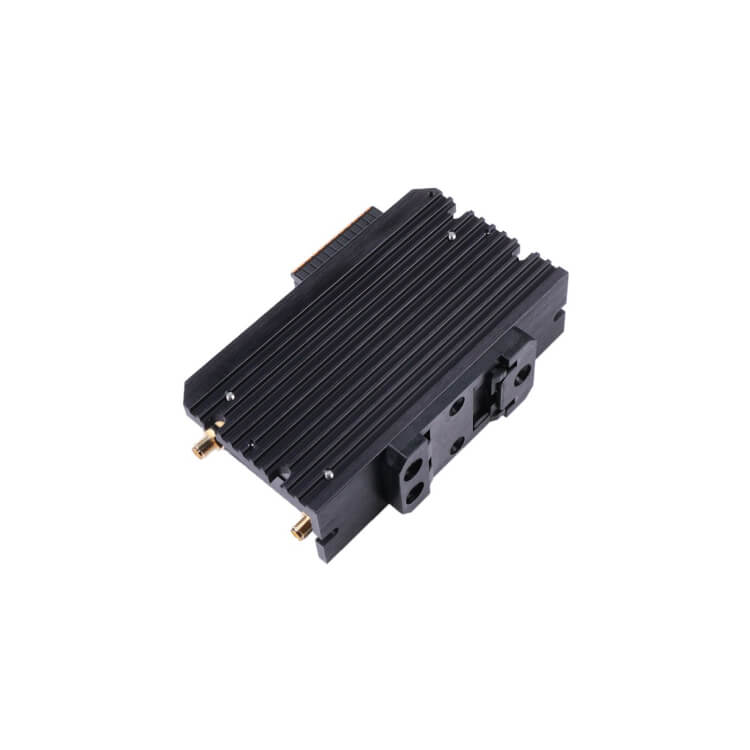

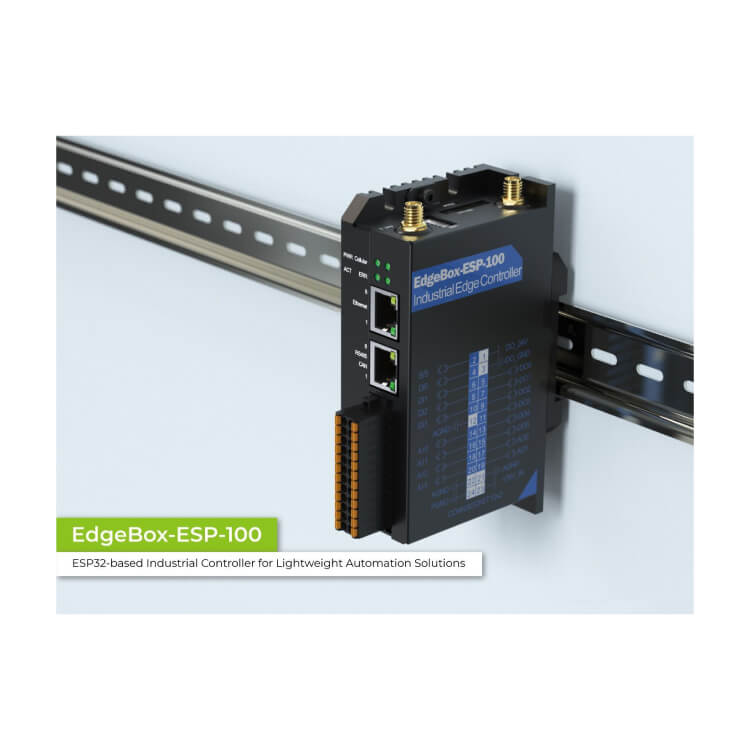

    DIN-Rail Mount
  • Environment Rating
    Industrial, Indoor
  • Operating Temperature
    -20°C to +60°C
  • Certifications
    CE, FCC, RoHS, UKCA
  • Warranty
    2 Years

Document Library

EdgeBox-ESP-100 Datasheet

EdgeBox-ESP-100 User Manual
