Sensoterra  |  SKU: SD-30cm

Sensoterra Single Depth | LoRaWAN Soil Moisture Probe

Price incl. 19% VAT
€277,00
Price excl. VAT
€232,77
Shipping calculated at checkout. Shipping policy

The Sensoterra probe is a rugged, single-depth LoRaWAN soil-moisture sensor.

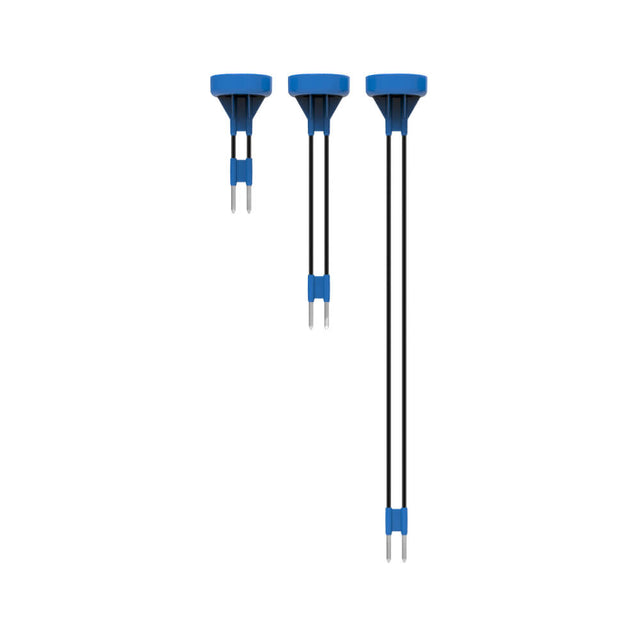

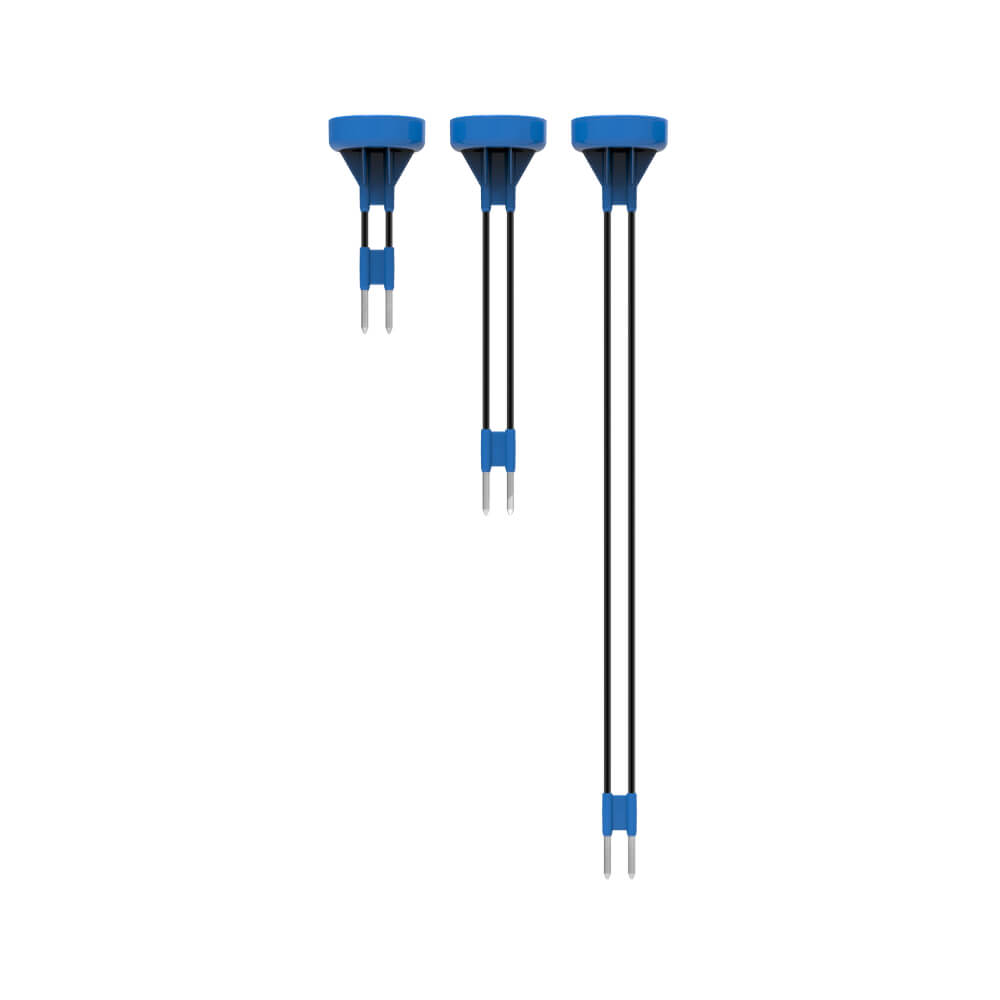

  • Pick your depth: 15, 30, 60 or 90 cm probe options
  • Rugged and easy to fit: IP67+ waterproof, fully hammerable
  • Long battery life: LoRaWAN 1.0.4 with up to 8 years built-in

VAT & Business Purchases

Prices include VAT at the rate of your EU delivery country, so the price shown is the price you pay. EU businesses with a valid VAT number can buy VAT-free: enter your company name and VAT number at checkout and VAT is removed under the intra-community reverse-charge rules. Orders delivered within Cyprus always include Cyprus VAT.

Secure Payment & Warranty
  • Encrypted Checkout: Shop with confidence via Shopify Payments or PayPal Express for fully secure, PCI-compliant transactions.
  • B2B Flexible Billing: For large-scale infrastructure orders, we offer Direct Bank Transfer (SEPA/SWIFT) options. Please contact our team for a pro-forma invoice.
  • Warranty & Support: Consumer purchases are covered by the 2-year legal guarantee of conformity, and manufacturer warranty terms apply per brand. Our engineering team at shopioT provides technical support.

Delivery and Shipping

Tracked delivery within Cyprus by ACS Courier, and to all EU member states, the United Kingdom and Switzerland by FedEx International Priority. Orders ship from our warehouse in Nicosia, Cyprus, typically within 1–3 business days. Shipping cost is calculated at checkout by destination and parcel weight. See our Shipping Policy for rates and delivery times.

EU business? Enter your company name and a valid EU VAT number at checkout to remove VAT (reverse charge).

Description

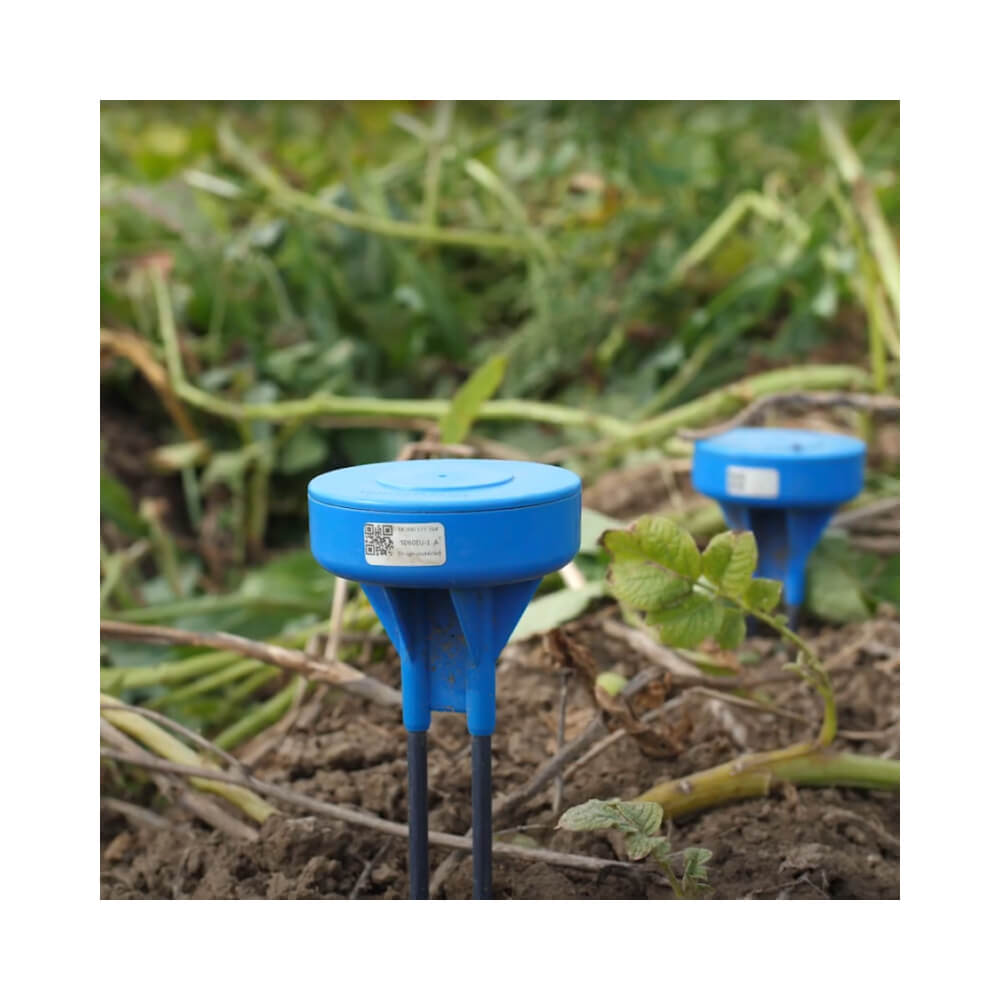

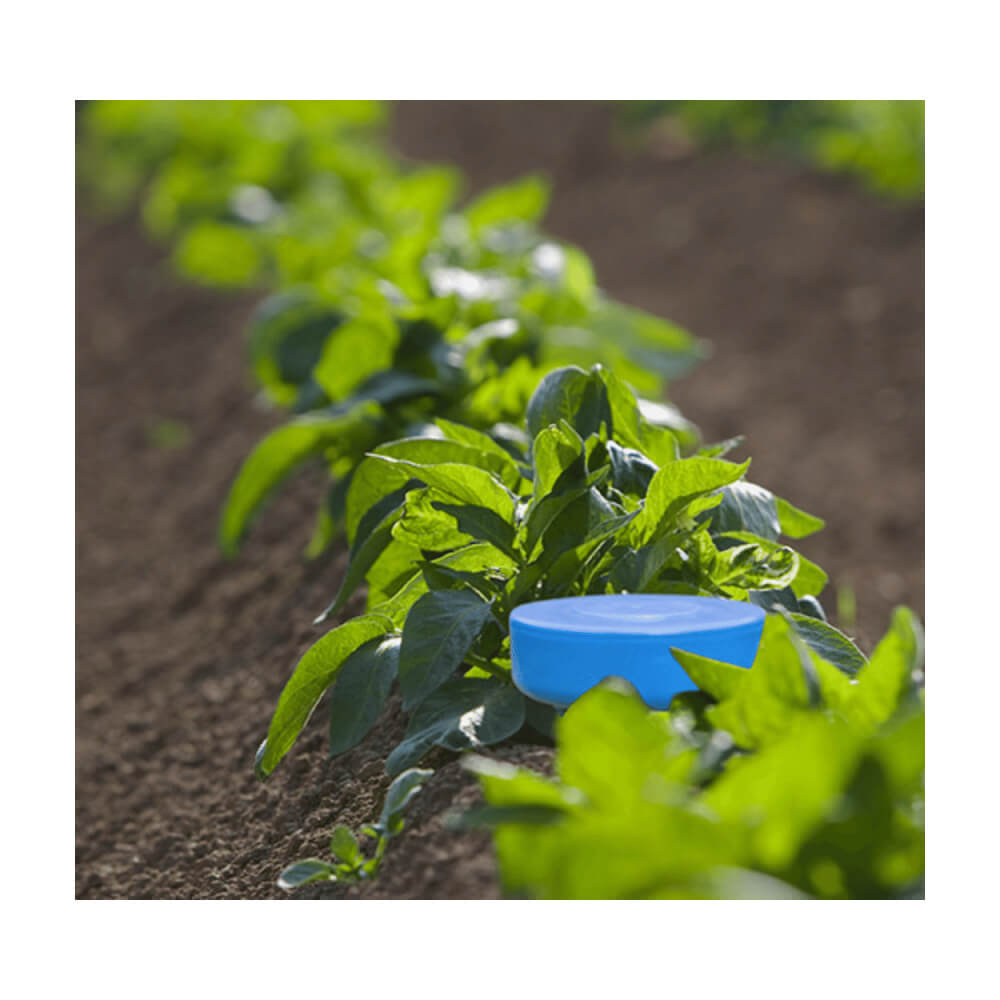

The Sensoterra Single Depth Probe is a professional-grade LoRaWAN® sensor engineered for the most demanding agricultural and landscaping environments. Built with a unique, hammerable design, it can be installed in seconds—even in hard, compacted soils—without the need for specialized tools. By providing high-accuracy Volumetric Water Content (VWC%) and the Sensoterra Index (SI), this probe empowers growers to make data-driven decisions that save water, reduce pumping costs, and maximize crop yields.

Core Capabilities

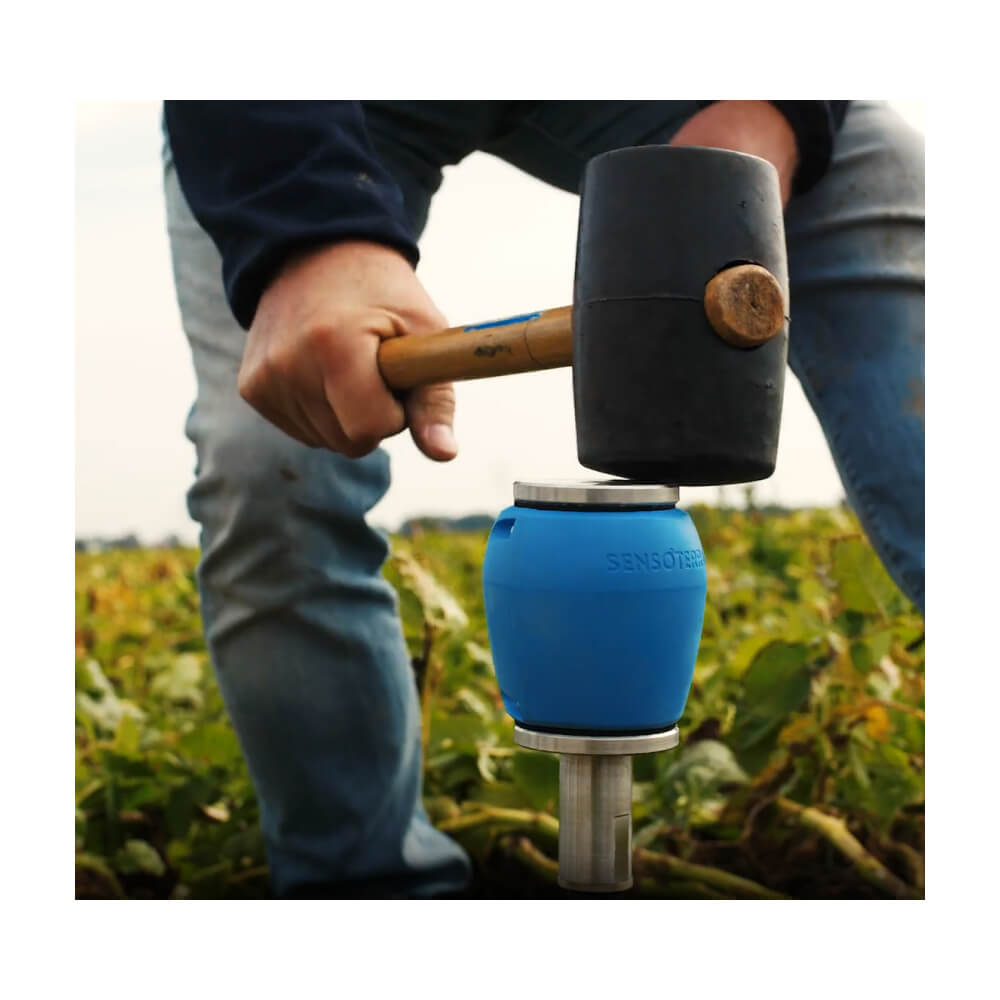

Hammerable Design Install effortlessly by hammering directly into the soil; no pilot holes or water slurries required.
Precise VWC% Patented dual-sensor technology (resistivity and capacitance) ensures ±1.5% accuracy across 20+ soil types.
Multi-Year Battery Integrated lithium battery provides 5 to 8 years of life with a default rate of 24 uploads per day.
IP67+ Waterproof Built to survive machinery, flooding, and extreme temperatures (-20°C to +60°C).

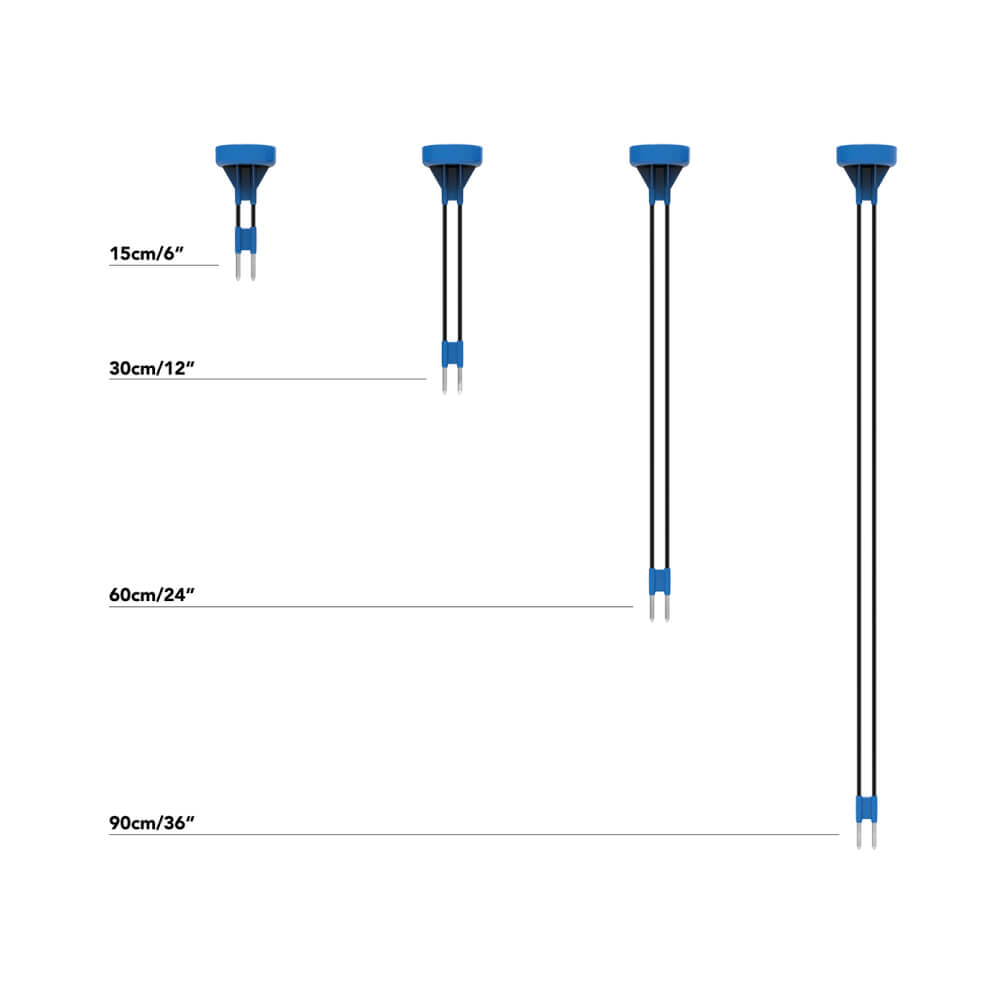

Available Depth Configurations

Select the ideal probe length for your specific crop or soil profile:

• 15 cm (6"): Ideal for shallow-rooted crops, turf, and greenhouse pots.
• 30 cm (12"): The standard for field crops and vineyards.
• 60 cm (24"): Best for monitoring deep root zones and drainage.
• 90 cm (36"): Specialized for deep-rooted trees and hydrological studies.

Technical Integration

The Sensoterra probe is fully LoRaWAN® 1.0.4 compliant, supporting ADR and OTAA for secure, encrypted data transmission. Data can be exported via a robust REST API or viewed instantly through the Sensoterra app and web monitor. Standard calibrations for 20+ common soil types are included. For large-scale precision agriculture deployments or custom soil calibration support, contact the ShopIoT technical team.

Specifications
  • Primary Communication Protocol
    LoRaWAN
  • Frequency/Region
    EU868
  • Antenna Type
    Internal
  • LoRaWAN Class
    Class A
  • Radio & Range

    Protocol: LoRaWAN 1.0.4, ADR, OTAA

    Frequency: EU868

    TX power: up to 14 dBm

  • Configuration Method
    Cloud Management (SaaS)
  • Activation Method
    OTAA
  • Monitoring Parameters
    Soil Moisture (VWC)
  • Measurement Technology

    Soil moisture: patented impedance (soil resistivity and capacitance)

  • Measurement Range

    Soil moisture: 0% to maximum soil water capacity by volume (e.g. 53% clay, 40% sand)

    Measurement depth: 15 / 30 / 60 / 90 cm (probe length versions)

  • Measurement Accuracy

    Soil moisture: ±1.5 moisture-% at pF ≥ 2 (with matching Sensoterra calibration curve)

  • Measurement Resolution

    Soil moisture: 0.1%

  • Power Source
    Battery (Non-rechargeable)
  • Power Input
    Internal built-in lithium battery, 3.0 V
  • Battery Type
    Li-MnO2
  • Battery Life
    6–8 years at hourly measurements, 24 uploads/day default
  • Dimensions
    200 × 80 × 80 mm (15 cm) / 350 × 80 × 80 mm (30 cm) / 650 × 80 × 80 mm (60 cm) / 950 × 80 × 80 mm (90 cm)
  • Weight
    0.23 kg (15 cm) / 0.28 kg (30 cm) / 0.37 kg (60 cm) / 0.44 kg (90 cm)
  • Enclosure Material
    ABS Plastic
  • Mounting Options
    Insertion
  • IP Rating
    IP67
  • Environment Rating
    Outdoor, Industrial
  • Operating Temperature
    -20°C to +60°C
  • Certifications
    CE, FCC
  • Warranty
    2 Years

Document Library

Single Depth Sensor Datasheet
